Blaze 29



Model Comparison

Key Features

• Tough and lightweight 6061 aluminium alloy frame
• Suntour XCT30-HLO TRAVEL:100MM with lockout, Preload adjustment

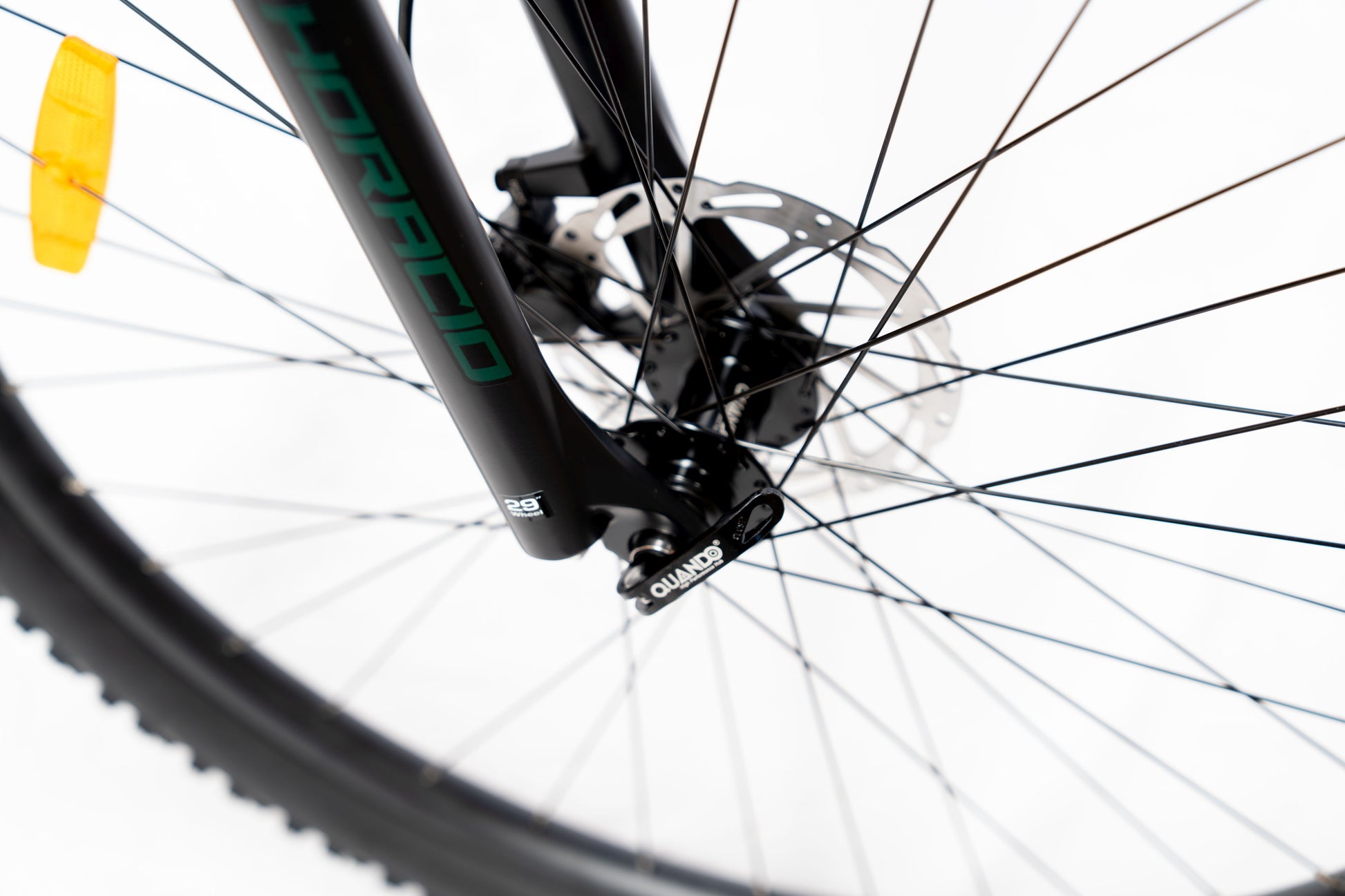

• Tektro M280 MECHANICAL disc brakes

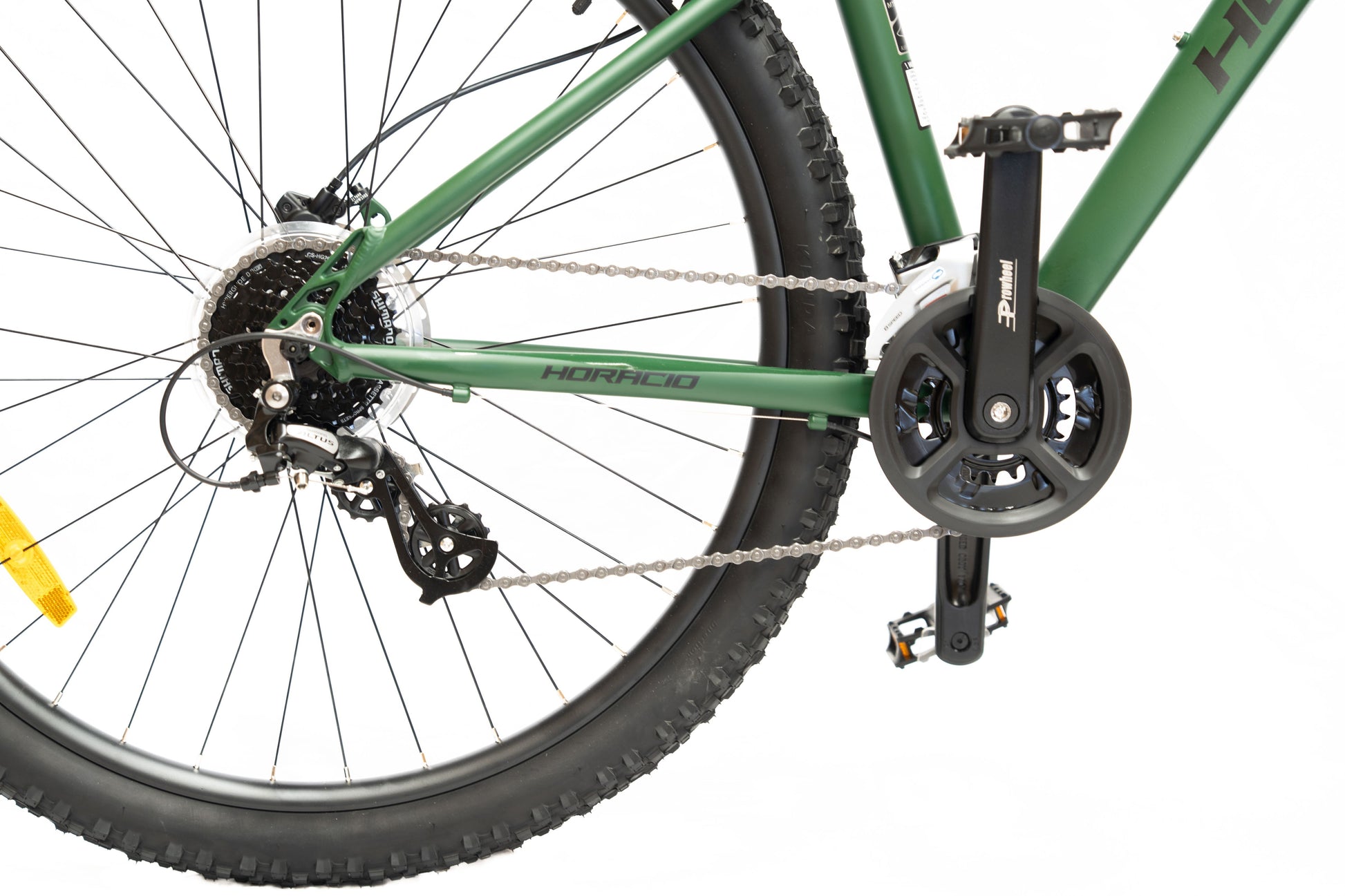

• Shimano Tourney 24(3x8)speed drivetrain.
• Double-wall rims
• Tyres: 60Tpi 29*2.2
• KendaTubes 29*2.2

Geometry

Specification

SKU	MD:HBA23Y30938B17   LG:HBA23Y30938B19 XL:HBA23Y30938B21	Derailleur Rear	SHIMANO Shimano TX800
Season	2023	Grips	Rubber Grips, Black
Wheel Size	29	Handlebar	Horacio Alloy Handlebar, Dia: 31,8mm, 700mm, 6° Backsweep, 20mm Rise, Sanblasted Black

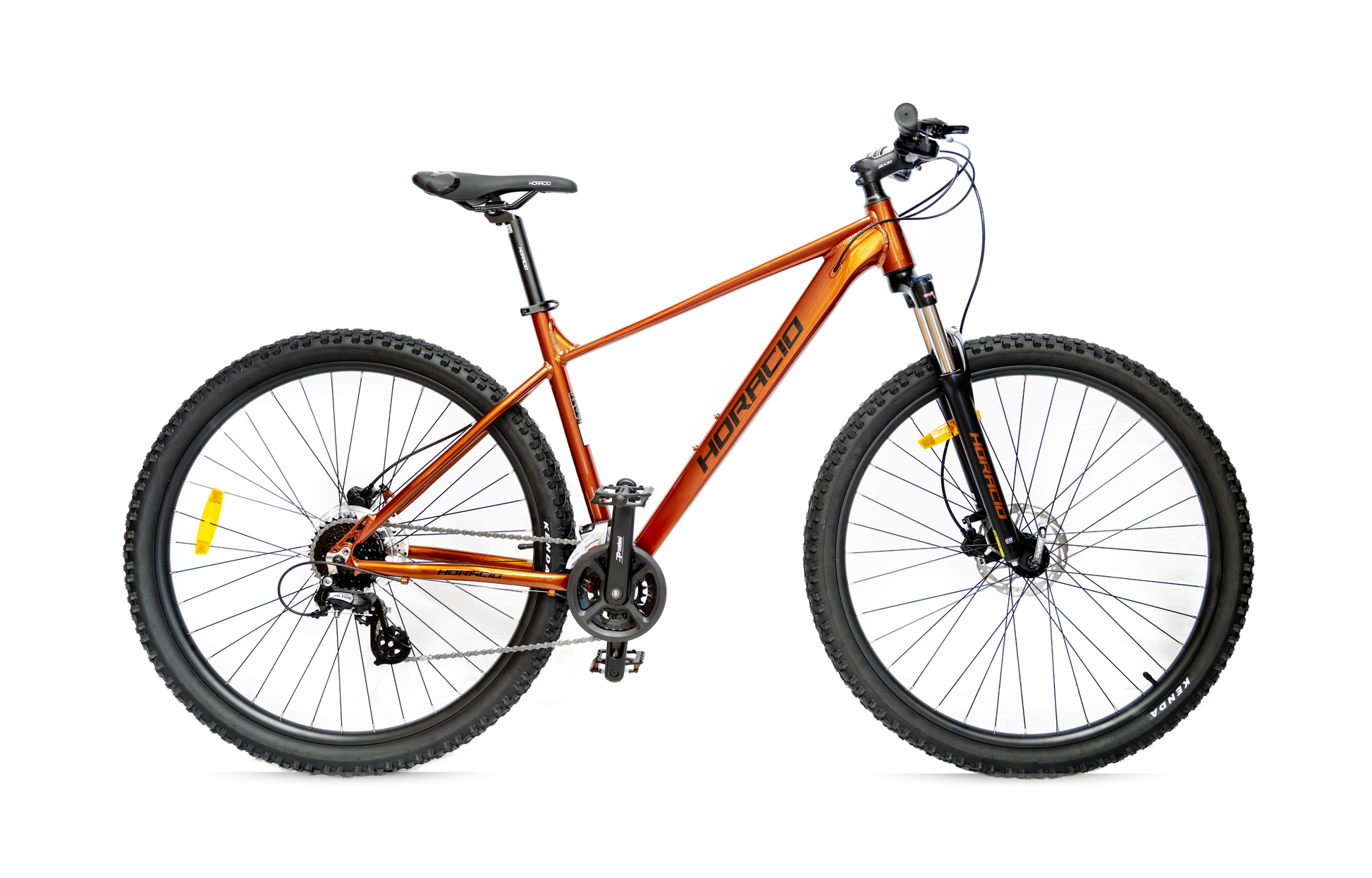

Colour	Sun Orange	Headset	NECO Semi-Integrated
Frame	6061 Aluminium Alloy	Hubs	Alloy disc specific MTB with quick release
Fork	Suntour XCT30-HLO TRAVEL:100MM with lockout, Preload adjustment	Bottom Bracket	NECO Sealed Bearing
Groupset Brand	Shimano Tourney	Pedals	Alloy MTB
Rear Gears	8 Speed	Rims	29*14G, DOUBLE WALL
Front Gears	Triple	Saddle	VELO MTB VL-3889
Brake Type	Mechanical Disc Brake	Seatpost	Horacio Alloy 30.4 x 350mm
Front Travel	100mm	Stem	Horacio Alloy Foged Stem, Black, 31,8mm
Brakes	TEKTRO MECHANICAL MD-M280 DISC BRAKE ROTOR :160mm	Shifters	Shimano TX800 EZ-Fire 24-speed
Cassette	SHIMANO HG200 8-SPEED 12-32T INDEX CASSETTE	Tyres	MTB 29*2.2 60Tpi
Chain	KMC 1/2*3/32*114L	Tubes	Kenda 29*2.2 A/V
Crankset	Prowheel MA-AC49 Alloy 42/34/24T 170mm	Speeds	3 x 8
Derailleur Front	SHIMANO Shimano TX800	WEIGHT	15.3 kg (29" L)

SKU	MD:HBA23Y30938B17   LG:HBA23Y30938B19 XL:HBA23Y30938B21
Season	2023
Wheel Size	29
Colour	Metallic Bronze
Frame	6061 Aluminium Alloy
Fork	Suntour XCT30-HLO TRAVEL:100MM with lockout, Preload adjustment
Groupset Brand	Shimano Tourney
Rear Gears	8 Speed
Front Gears	Triple
Brake Type	Mechanical Disc Brake
Front Travel	100mm
Brakes	TEKTRO MECHANICAL MD-M280 DISC BRAKE ROTOR :160mm
Cassette	SHIMANO HG200 8-SPEED 12-32T INDEX CASSETTE
Chain	KMC 1/2*3/32*114L
Crankset	Prowheel MA-AC49 Alloy 42/34/24T 170mm
Derailleur Front	SHIMANO Shimano TX800
Derailleur Rear	SHIMANO Shimano TX800
Grips	Rubber Grips, Black
Handlebar	Horacio alloy Handlebar, Dia: 31,8mm, 700mm, 6° Backsweep, 20mm Rise, Sanblasted Black
Headset	NECO Semi-Integrated
Hubs	Alloy disc specific MTB with quick release
Bottom Bracket	NECO Sealed Bearing
Pedals	Alloy MTB
Rims	29*14G, DOUBLE WALL
Saddle	VELO MTB VL-3889
Seatpost	Horacio Alloy 30.4 x 350mm
Stem	Horacio Alloy Foged Stem, Black, 31,8mm
Shifters	Shimano TX800 EZ-Fire 24-speed
Tyres	MTB 29*2.2 60Tpi
Tubes	Kenda 29*2.2 A/V
Speeds	3 x 8
WEIGHT	15.3 kg (29" L)

Description

Introducing the HoracioBikes Blaze29 for the 2023 season! This stunning bicycle boasts a striking Metallic Bronze color and features a 29-inch wheel size, perfect for conquering any terrain. Equipped with a reliable Shimano Tourney groupset, the Blaze29 has 8-speed rear gears and a triple front gear setup, allowing for smooth and efficient gear changes. The bike also features a durable 6061 aluminum alloy frame, providing a lightweight yet sturdy ride.

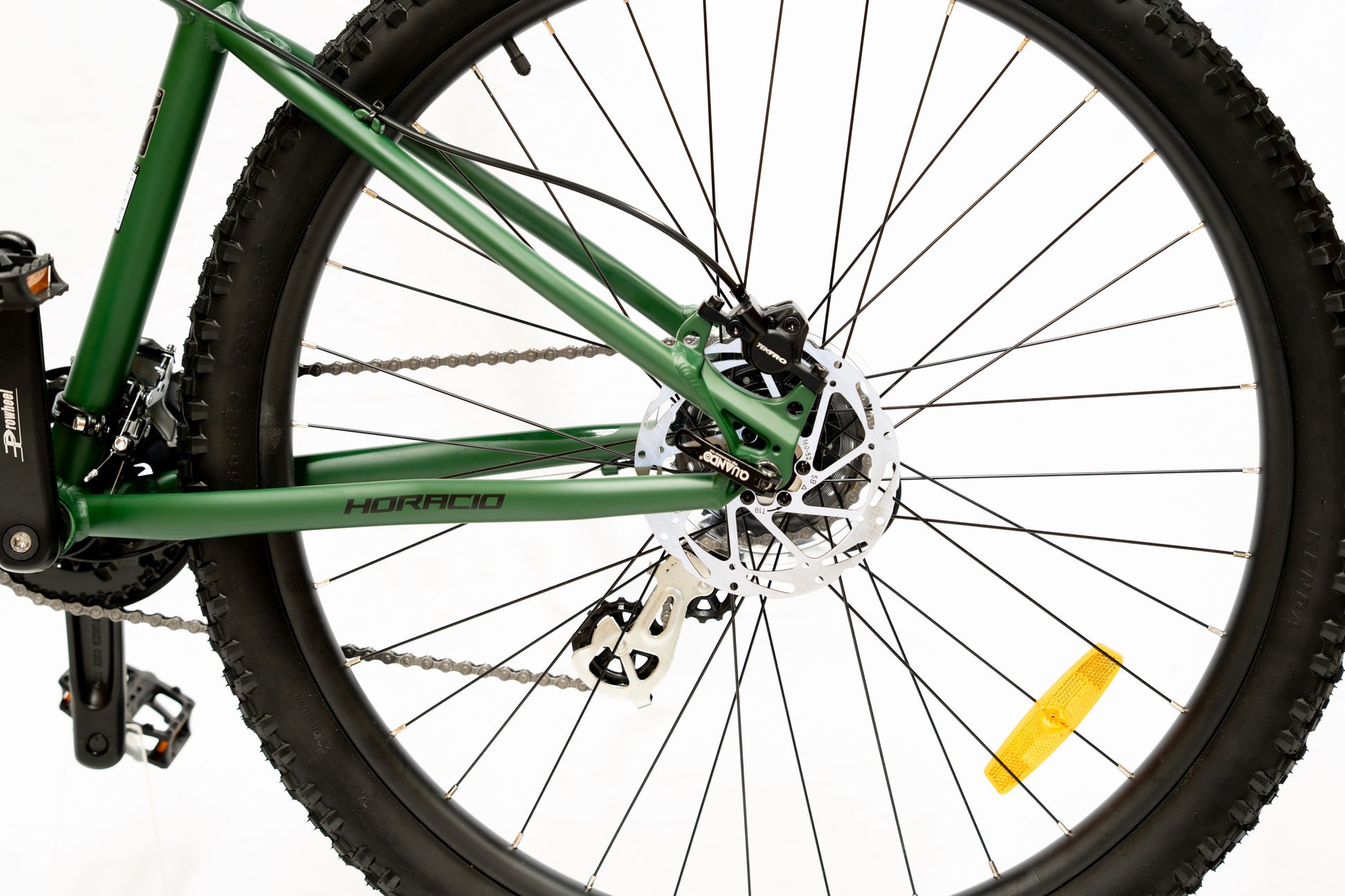

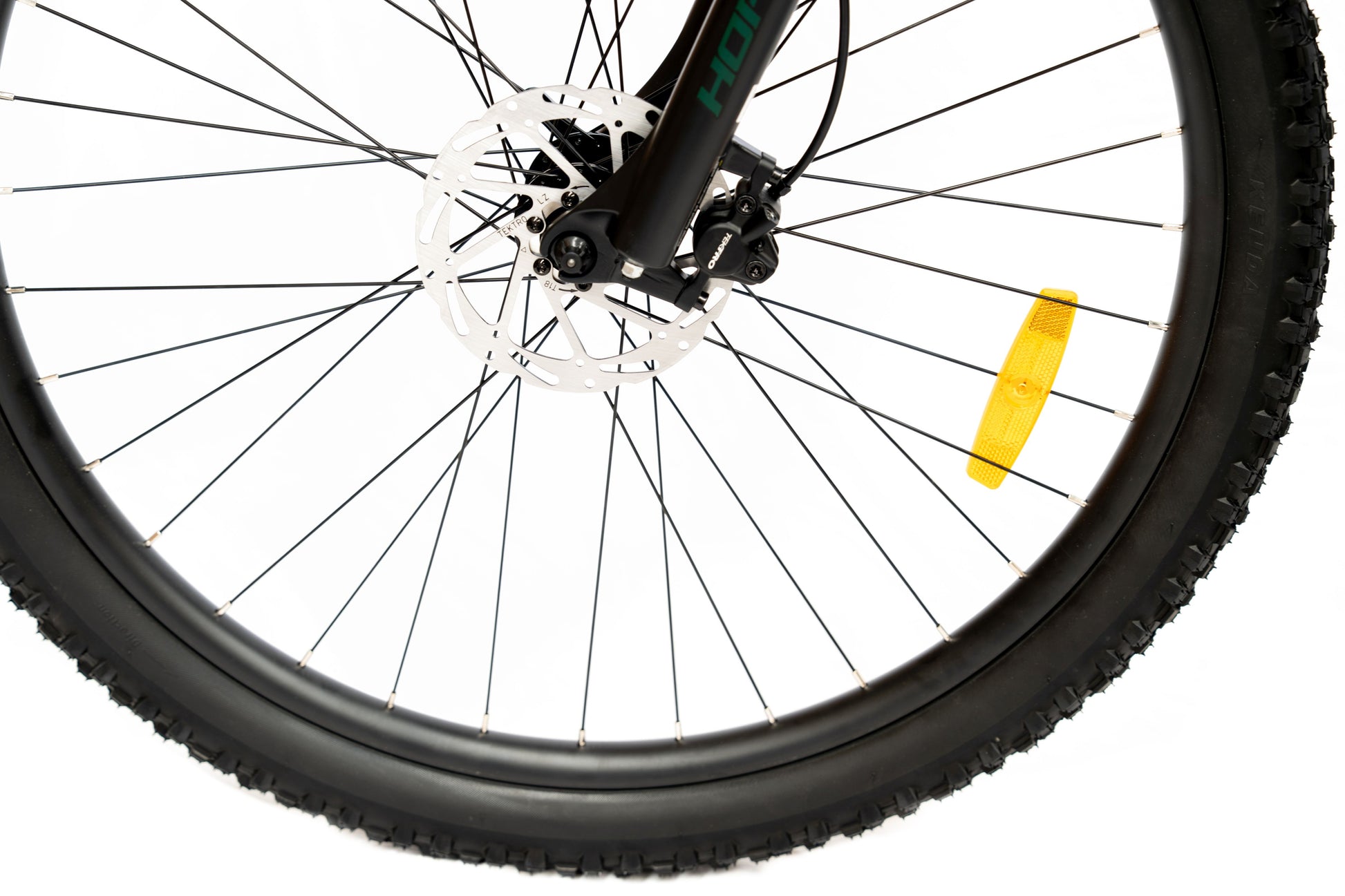

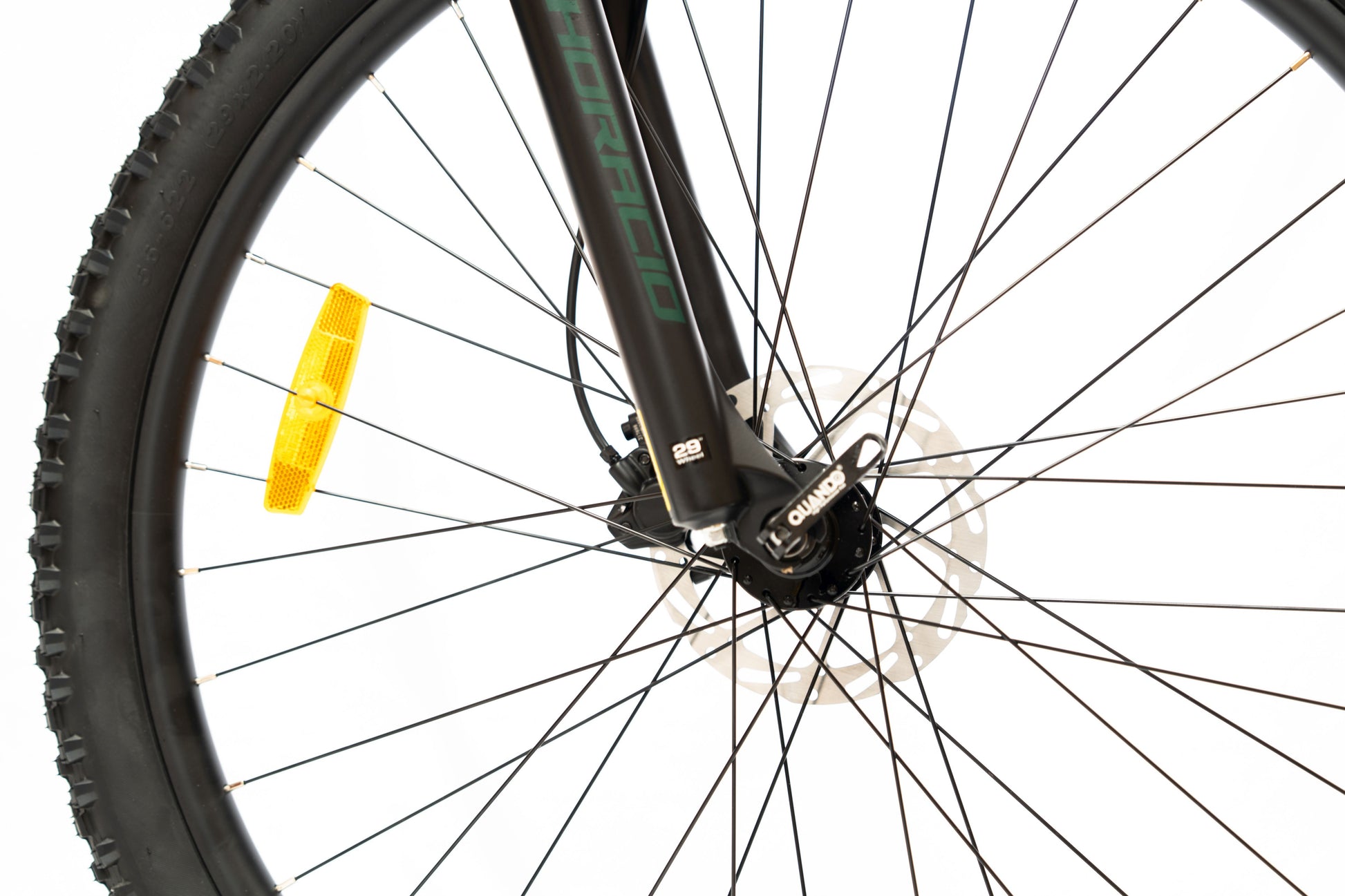

For optimal stopping power, the Blaze29 is equipped with TEKTRO MECHANICAL MD-M280 DISC BRAKE ROTOR with a 160mm rotor, ensuring safe and reliable braking performance. The bike also comes with a Suntour XCT 30 fork with 100mm travel with lockout, providing a smooth and comfortable ride.

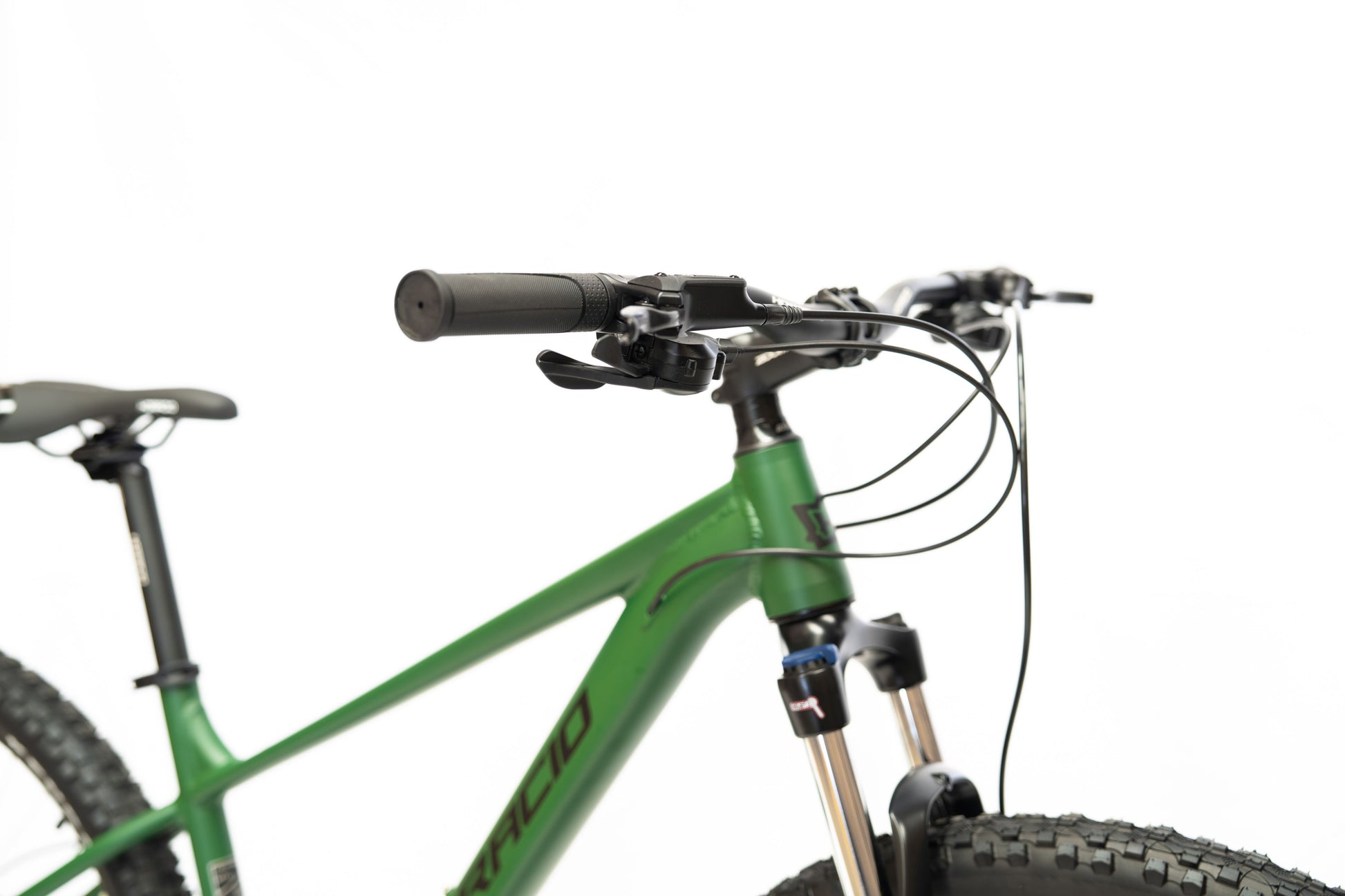

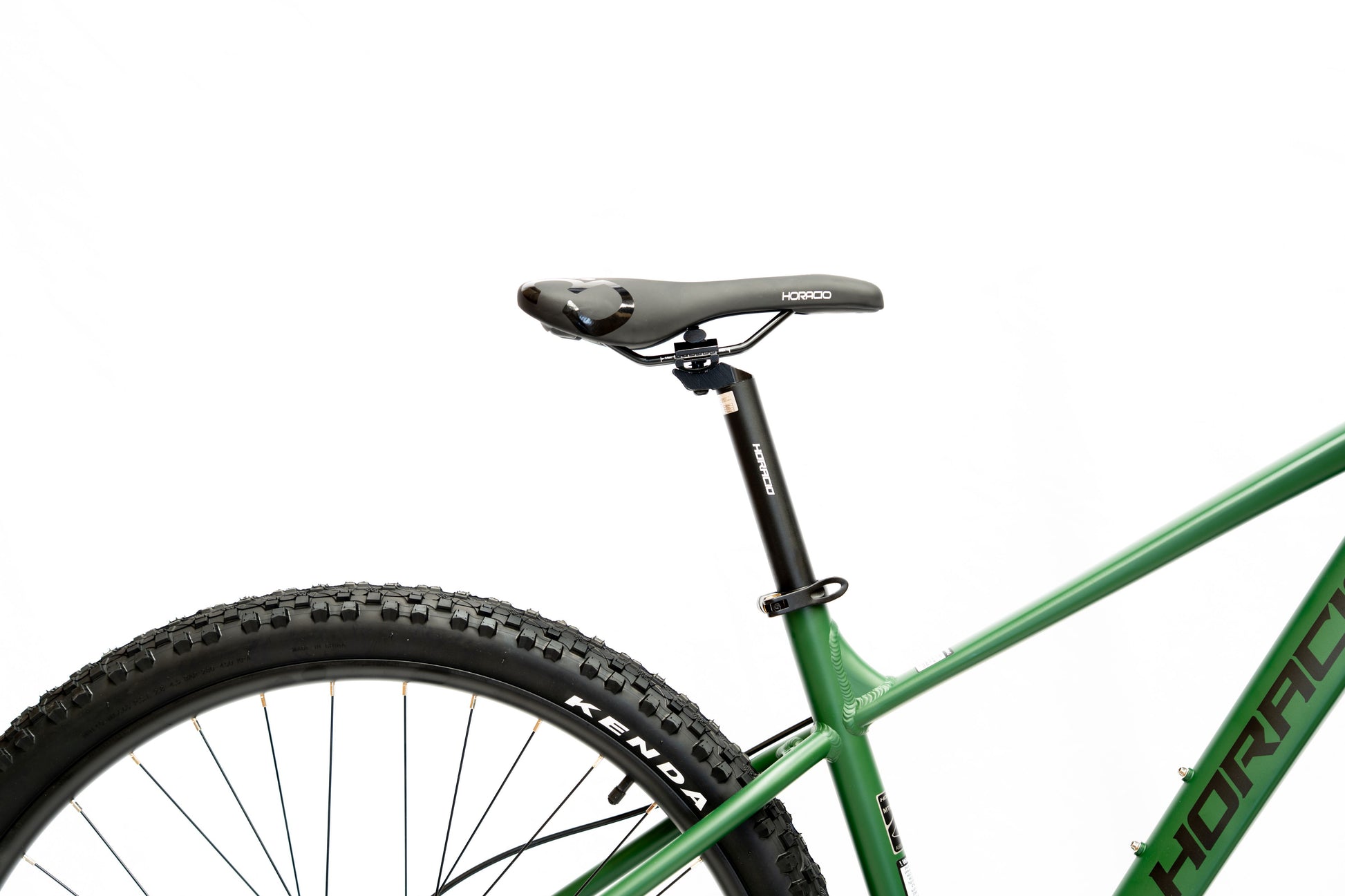

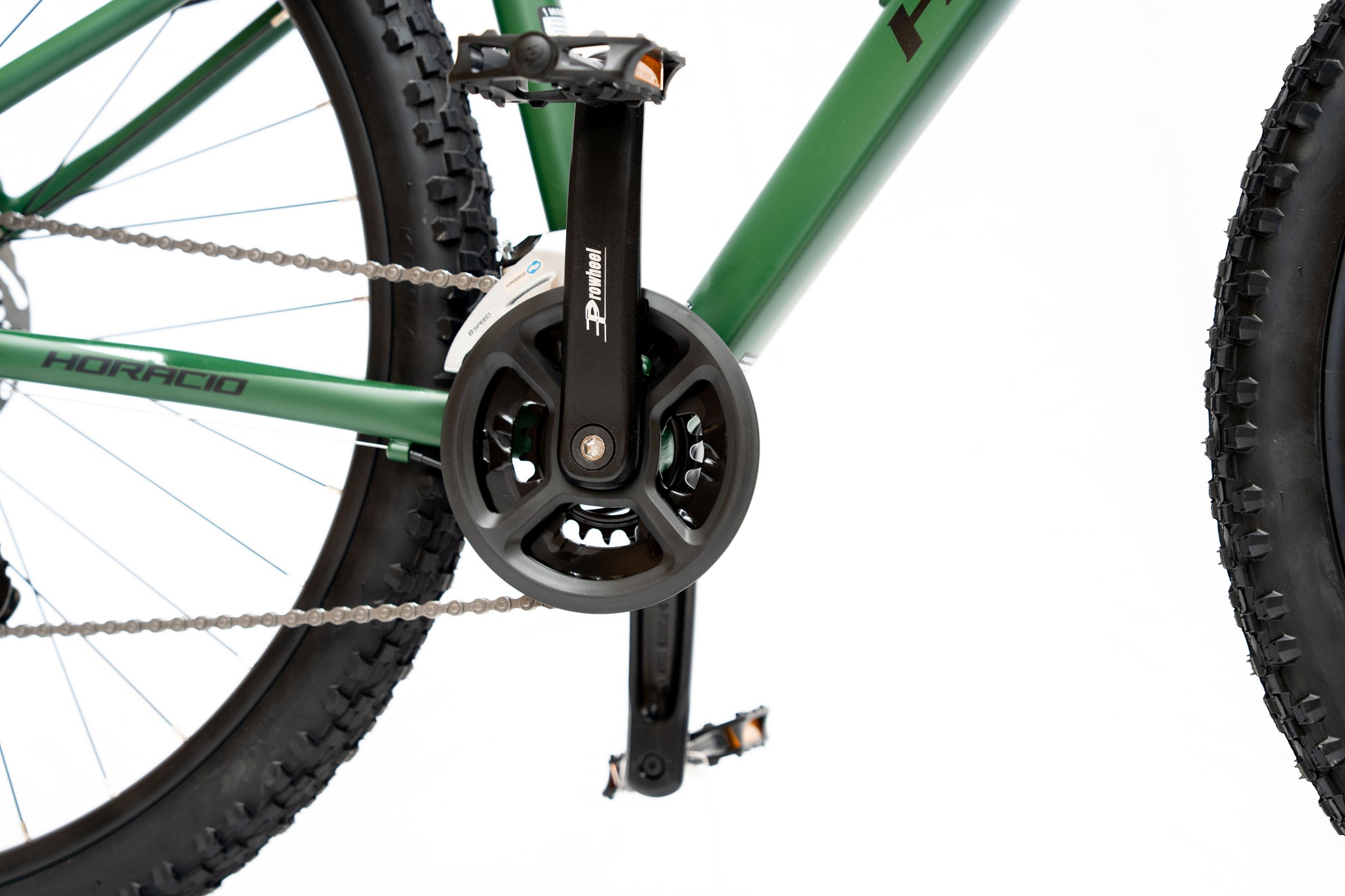

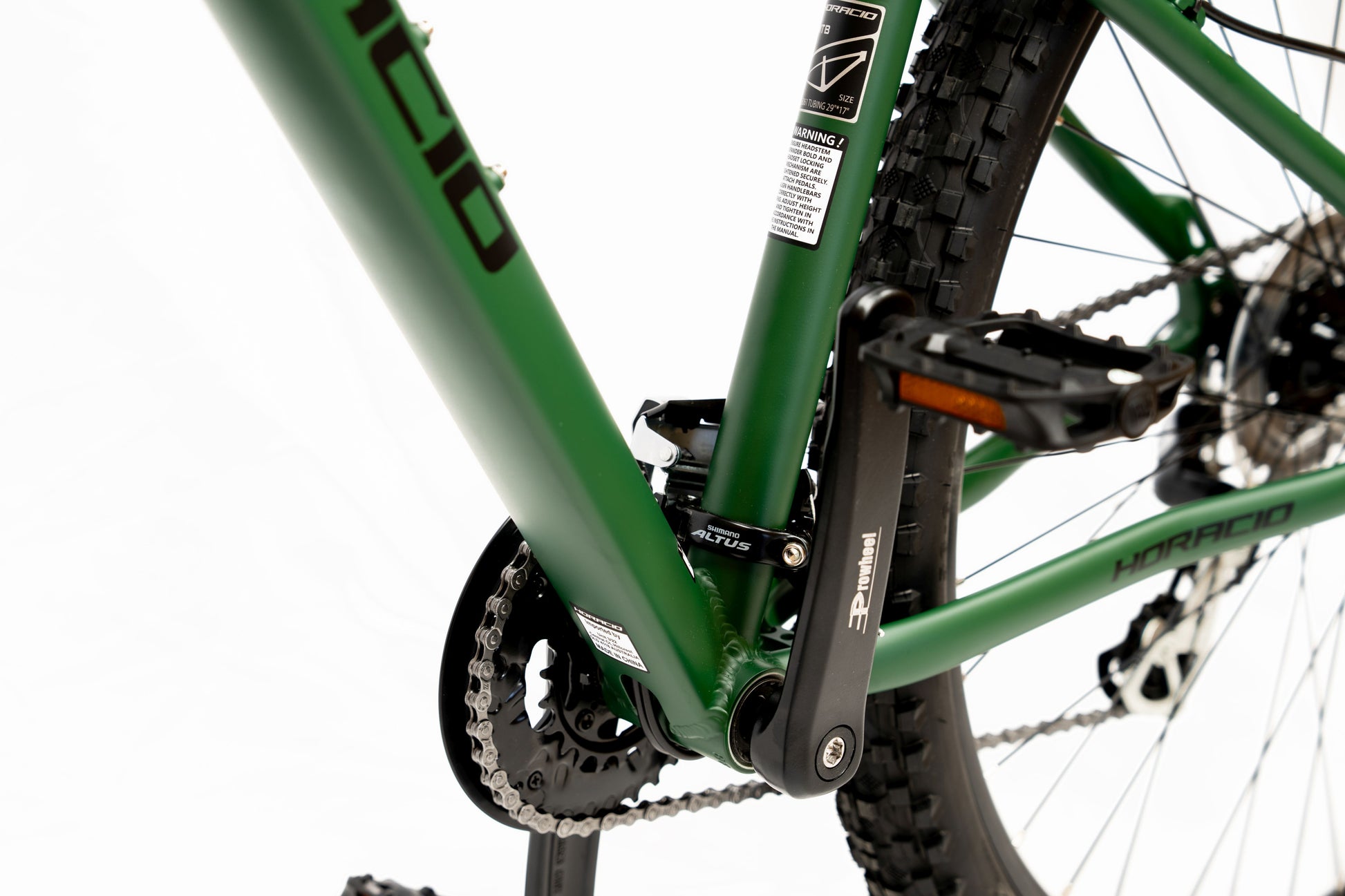

The HoracioBikes Blaze29 also comes with a range of high-quality components, including KMC chain, Prowheel MA-AC49 Alloy 42/34/24T 170mm crankset, and SHIMANO HG200 8-SPEED 12-32T INDEX CASSETTE. The bike is also fitted with Horacio alloy Handlebar, Dia: 31,8mm, 700mm, 6° Backsweep, 20mm Rise, Sanblasted Black and Horacio alloy 30.4 x 350mm seatpost for a comfortable and ergonomic riding position.

With a rider weight limit of up to 100kg, the HoracioBikes Blaze29 is perfect for a wide range of riders, from beginners to experienced enthusiasts. The bike also features alloy disc-specific MTB hubs with quick release and MTB 29*2.2 60Tpi tyres, providing a smooth and stable ride on any terrain.

Support & Assembly

FAQs

What should I do after receiving my bicycle?



Downloads

Front Derailleur Adjustment

Rear Derailleur Adjustment

Operator's Guide for Adjusting Shimano Derailleurs



Worry-Free Minimal Assembled

Before shipping your bike to you, we conduct a thorough inspection and fine-tuning in our warehouse, ensuring minimal issues and a hassle-free assembly experience.

All our mountain bikes come 85% assembled, and we provide tools and easy-to-follow tutorials to help you with the final assembly. If you have any questions, please do not hesitate to contact our customer service team.

While we are currently unable to provide assembly services to all customers, we do offer door-to-door assembly services in limited areas. To learn more, please reach out to us at info@horaciobikes.com.au.

For detailed instructions on assembling this bicycle, please refer to the video below：

Assembly and Installation Guide

Shipping & Warranty

We take pride in the quality and craftsmanship of our bicycles, and we are committed to ensuring your satisfaction with your purchase. We offer up to Lifetime Warranty on select parts. Terms and conditions apply. Click here to see more details.

Dispatch

When your order is confirmed, we will advise you of the expected dispatch date of your order. All orders received by 4 pm AEST will usually be dispatched the following business day.

Shipping Fee

For most areas in Brisbane, the Gold Coast and Ipswich, we offer local delivery with assembly service. For other metro areas in Australia, the bicycle shipping cost is from $39.99 per bike. To check your shipping rate please refer to the product page or checkout page. Please contact us by email if you can't get your shipping rate automatically.

Turnaround Time

Local Delivery will take around 2 to 5 working days.

For other metropolitan areas, it would take around 2-7 days for the shipping.
