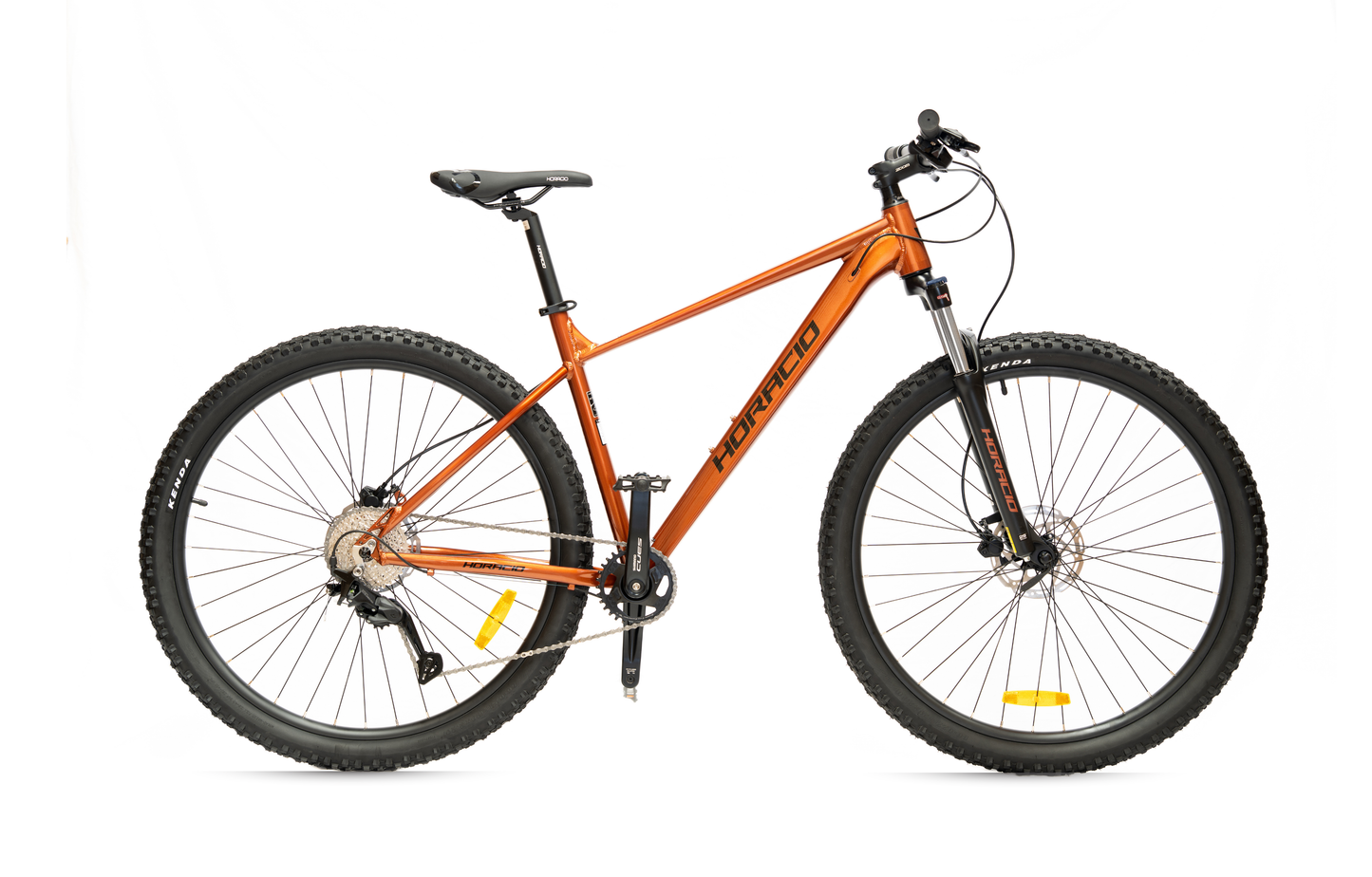

Blaze Cues M1 29" Mountain Bike |2025 New Arrival | 29er Mountain Bikes
Blaze Cues M1 29" Mountain Bike |2025 New Arrival | 29er Mountain Bikes
Couldn't load pickup availability
A kick stand is not included.
View full detailsDiscover next-level versatility and performance with Blaze CUES M1. Featuring the advanced Shimano CUES 9-speed drivetrain, lightweight alloy frame, and powerful hydraulic disc brakes.
WHY BLAZE CUES M1?
Discover the six key features that make the Blaze CUES M1 your perfect mountain biking companion
MODERN MOUNTAIN BIKE DESIGN + OFF-ROAD CONTROL
Adopts modern mountain bike geometry design, specifically crafted for forest trails and light off-road adventures, delivering more confident handling experience. Features SR Suntour fork (100mm travel), 29-inch wheelset with 2.2-inch mountain tires providing excellent rollover and grip, internal cable routing with dropper post compatibility for clean aesthetics and easy upgrades.
LIGHT AND DURABLE
All-new upgraded aluminum alloy frame, structurally solid and lightweight, with the complete bike weighing only about 15kg, adapting to various off-road terrains and riding scenarios.

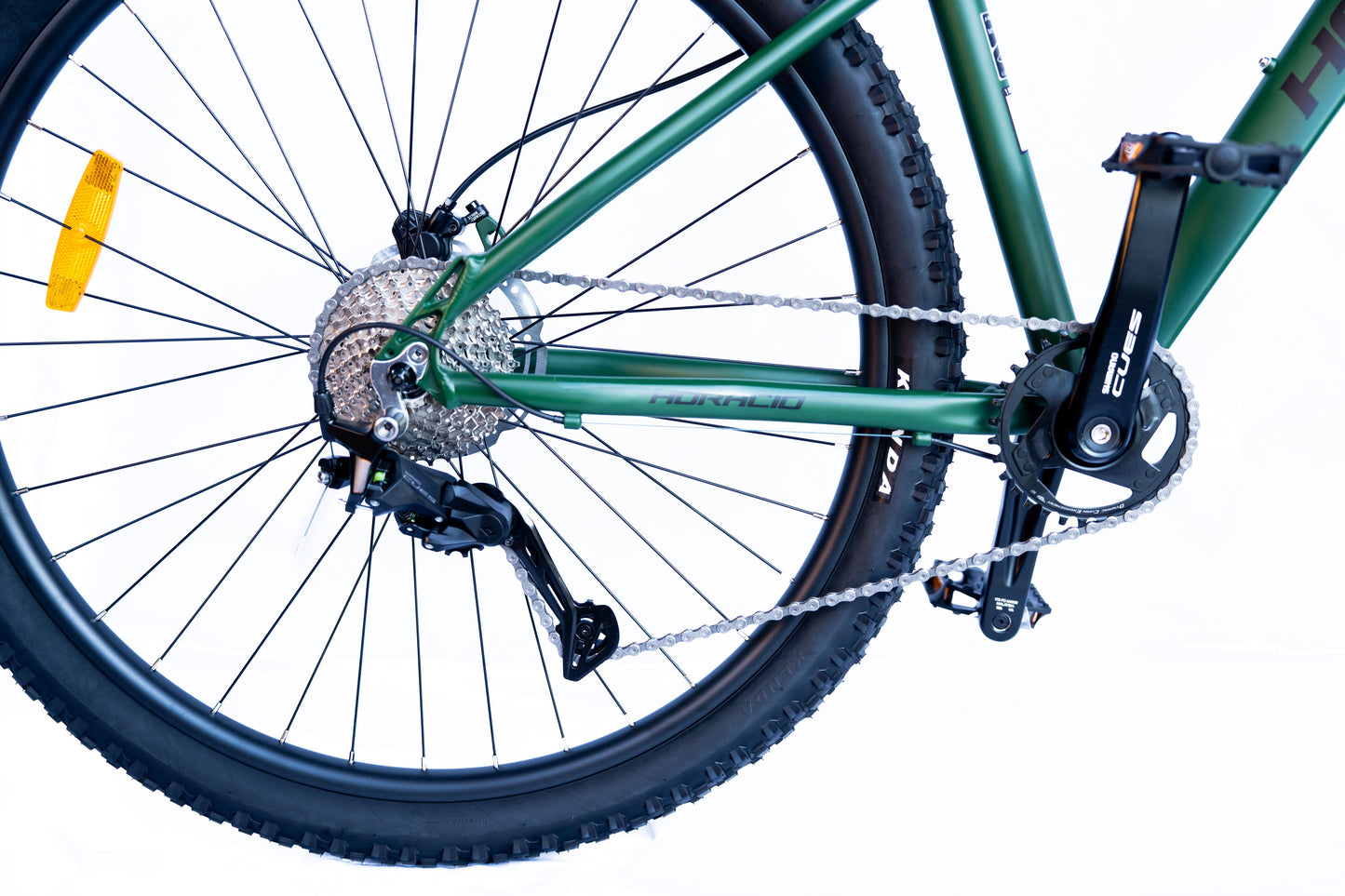

SHIMANO CUES 1×9 SPEED DRIVETRAIN SYSTEM
The complete bike is equipped with a full set of Shimano CUES components (including front and rear hubs, crankset, cassette, rear derailleur, shifters), utilizing LinkGlide technology. Compared to traditional Hyperglide systems, shifting is smoother with durability improved by up to 300%, making it ideal for high-frequency daily use.
TEKTRO HYDRAULIC DISC BRAKE SYSTEM
Equipped with Tektro hydraulic disc brakes, providing reliable, linear brake feel and strong braking power whether in dry, wet, or downhill terrain.
EXCEPTIONAL VALUE FOR MONEY
Blaze CUES M1 uses renowned brand components throughout with no compromises, while maintaining excellent price control. You can hardly find a second bike with such complete configuration in the same price range.
MOUNTAIN BIKING JOURNEY, STARTS HERE
This aluminum alloy hardtail mountain bike features a redesigned frame that's lighter and stronger, paired with smooth suspension fork, complete Shimano CUES drivetrain, and 1x single chainring setup. Combining excellent brand configuration with price advantages, it's the ideal choice for everyone looking to start their mountain biking journey.
| Season | 2025 | Grips | Black TPR Grips (ST-07) |
|---|---|---|---|

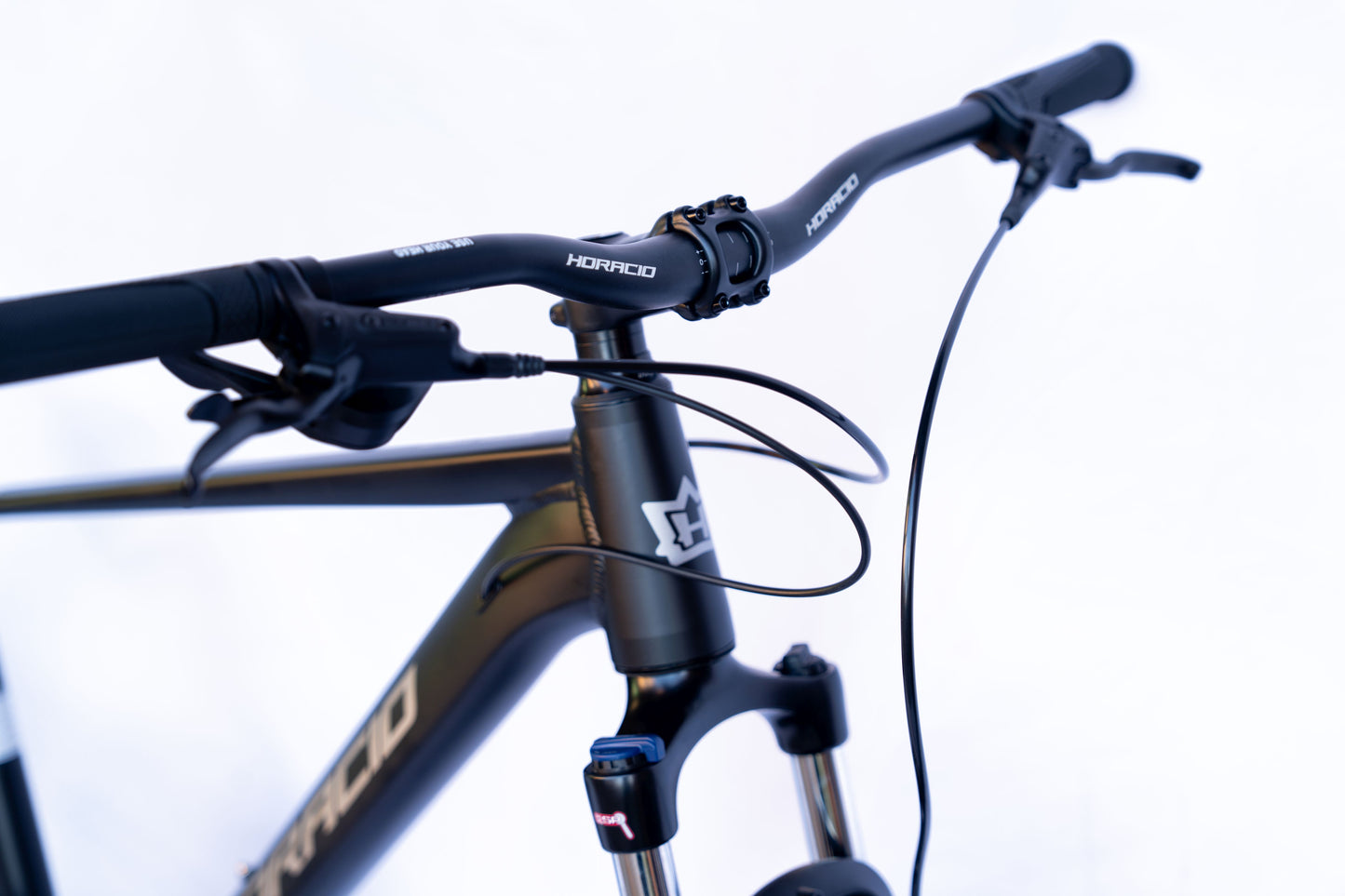

| Wheel Size | 29" | Handlebar | Horacio alloy Handlebar, Dia: 31.8mm, 720mm, 6° Backsweep, 20mm Rise, Sanblasted Black DTS-920A |

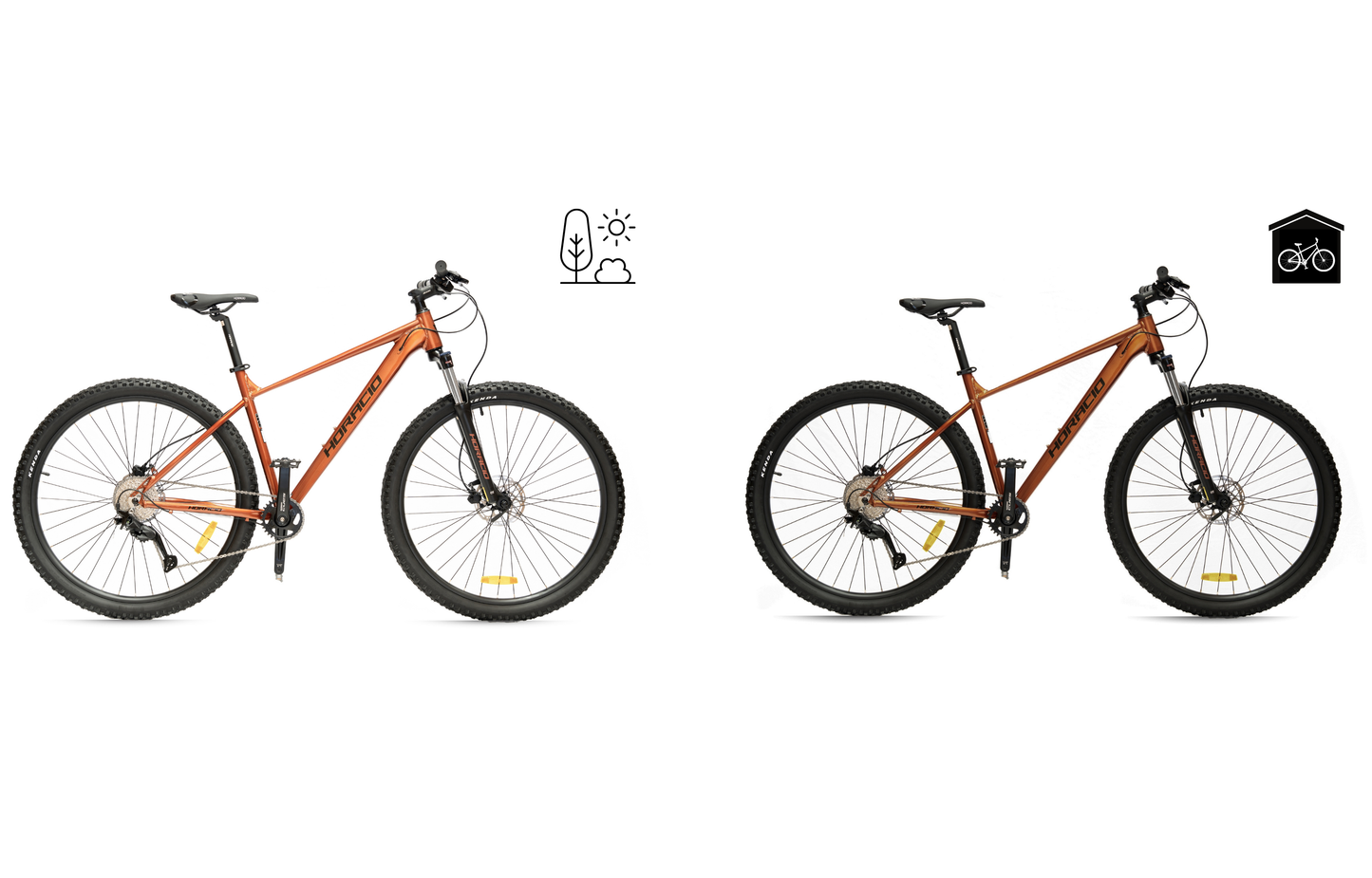

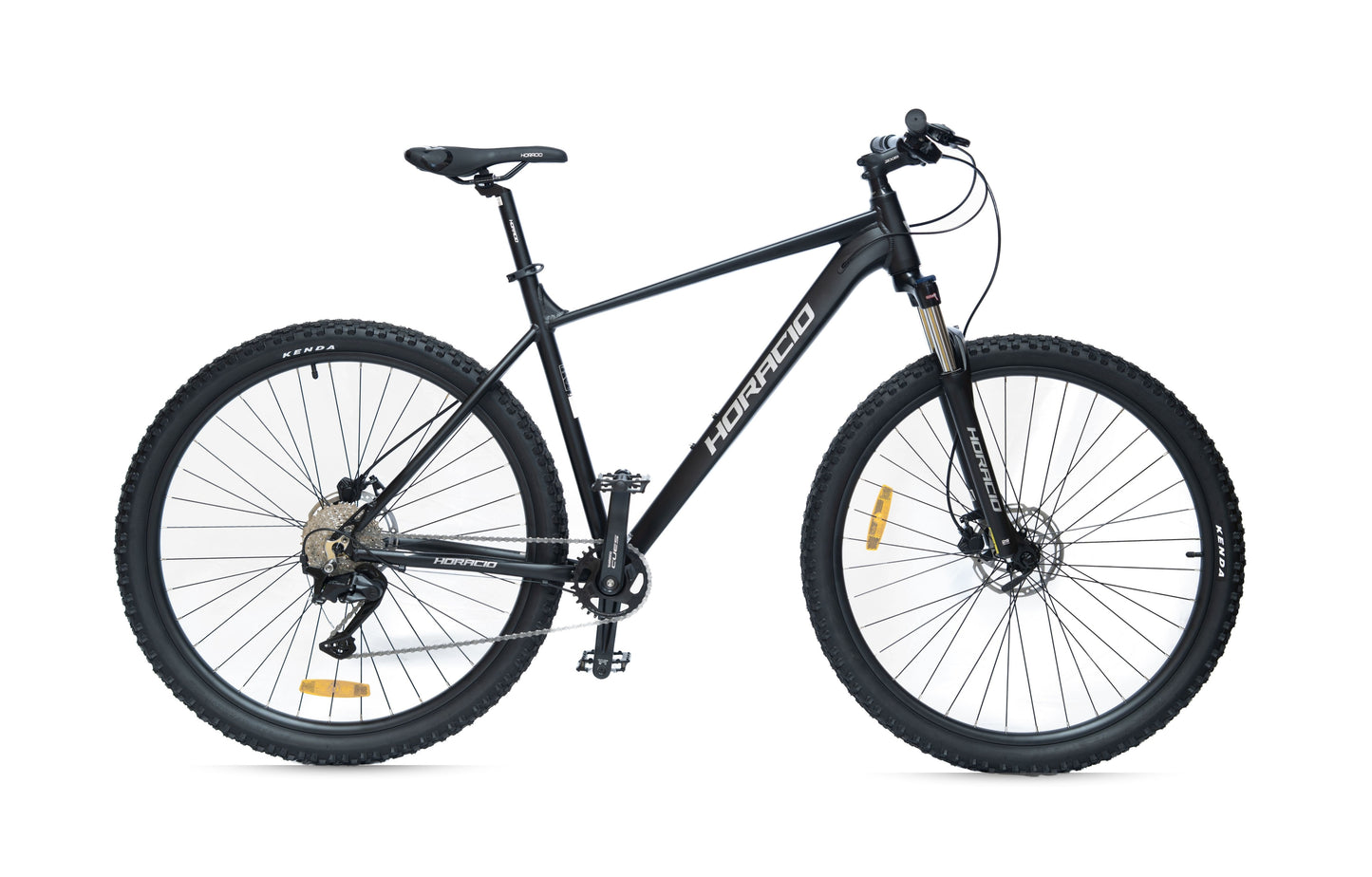

| Colour | Pine Green / Metallic Bronze / Midnight Black | Headset | NECO H117DM Semi-Integrated |
| Frame | 6061 aluminium alloy | Hubs | Front: Shimano HB-QC300, 36H, QR 133mm, OLD 100mm, Center Lock (AHBQC300AAL) / Rear: Shimano FH-QC300-HM, 36H, QR 166mm, OLD 135mm, Center Lock (AFHQC300HMAZAP) |
| Fork | SUNTOUR XCT30-HLO Coil; TRAVEL: 100MM with lockout | Bottom Bracket | NECO B910 Sealed Bearing |
| Front Travel | 100mm | Stem | ZOOM TDS-C301-8FOV, Aluminum, Dia: 28.6mm, Height: 41mm, Extension: 70mm, 6° Rise, Bar Bore: 31.8mm |
| Groupset Brand | SHIMANO CUES | Pedals | WELLGO MTB Nylon Plastic Pedals LU-984DU |
| Rear Gears | 9 Speed | Rims | J25D 29" Alloy ,Disc Only, 25mm inner width, 14G x 36H, Height: 18mm, Double-Wall Alloy Rim |
| Front Gears | Single | Saddle | DDK-D1-072 Style: Sport |

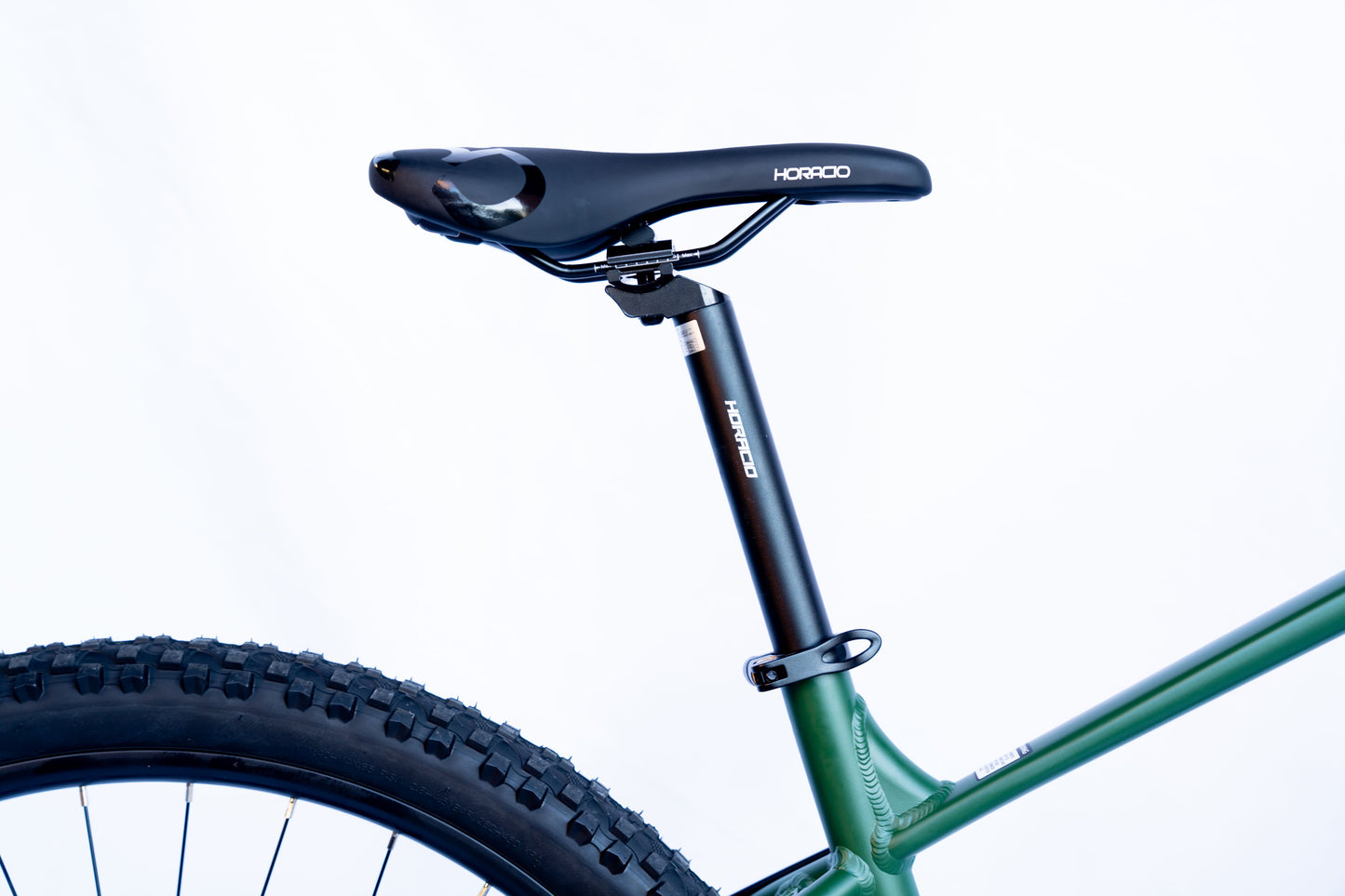

| Brake Type | Hydraulic Disc Brake | Seatpost | Horacio alloy 27.2 x 350mm (DTS-332) |

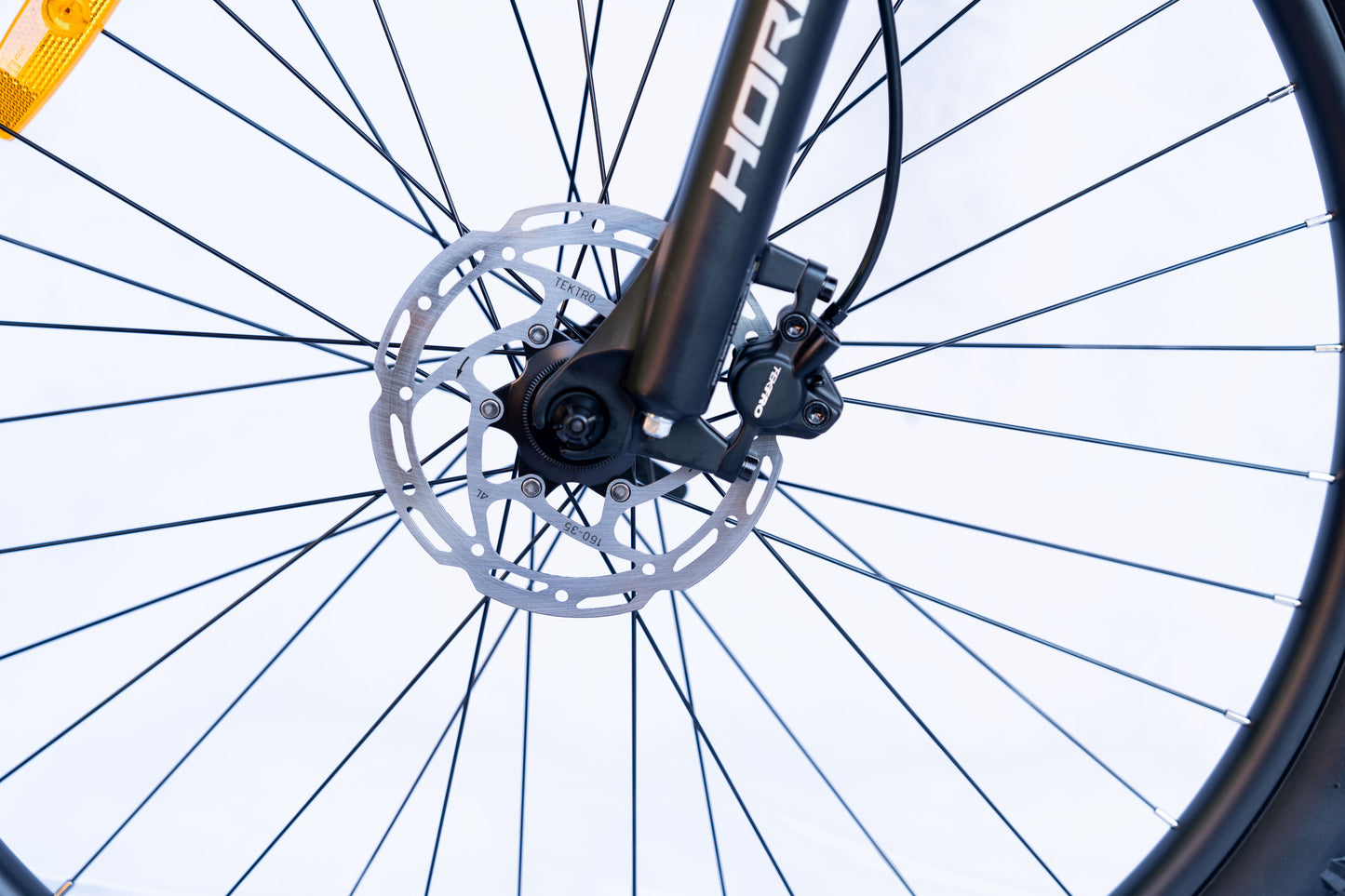

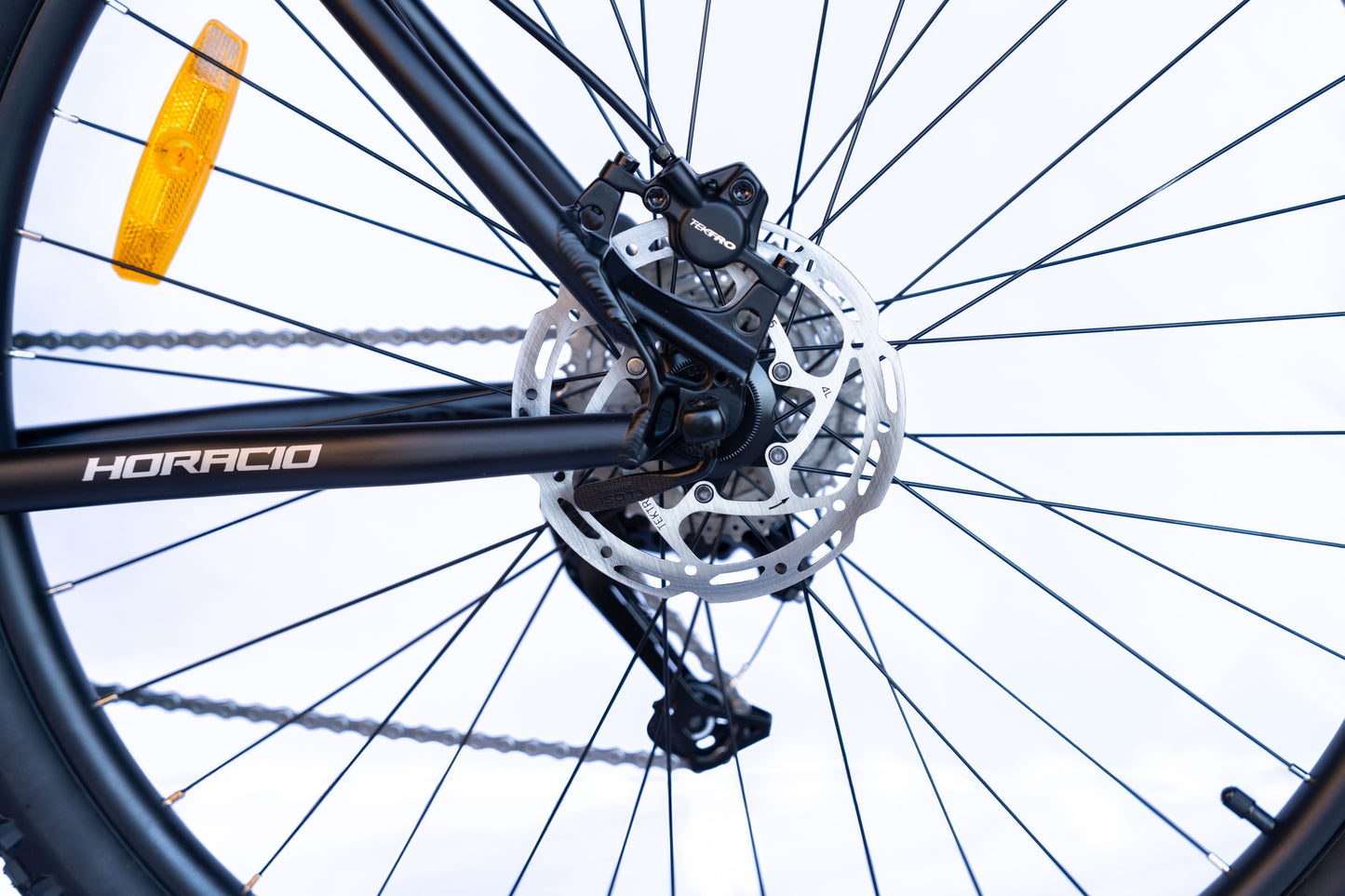

| Brakes | TEKTRO HD-M275 Hydraulic Disc Brake Rotor: 160mm | Shifters | Shimano SL-U4000-9R, 9-speed Rapidfire Plus, with Optical Gear Display (ASLU40009RA) |
| Cassette | Shimano CS-HG201-9, 9-speed(11–34T): 11-13-15-17-20-23-26-30-34T | Tyres | KENDA K1027, 29" x 2.20", 60 TPI |
| Chain | KMC X9 1/2"*11/128"*110L | Tubes | KENDA 29" x 2.20 AV, Black |

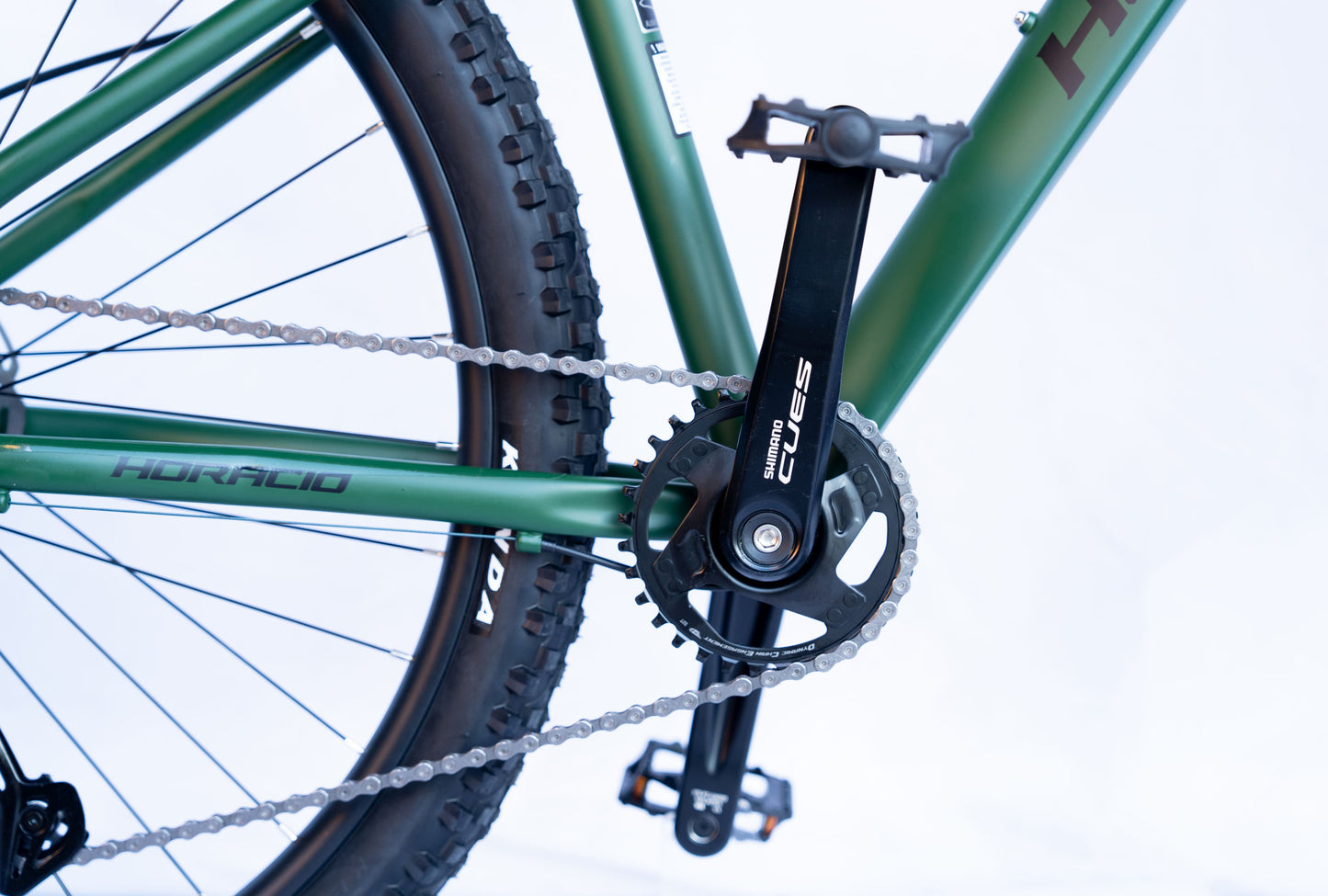

| Crankset | Shimano FC-U4000-1, 32T, 175mm, chain case not compatible (AFCU40001CA2) | Repair Tool Kit | YES |
| Derailleur Front | - | Weight | M: 15kg / L:15kg / XL: 15kg |

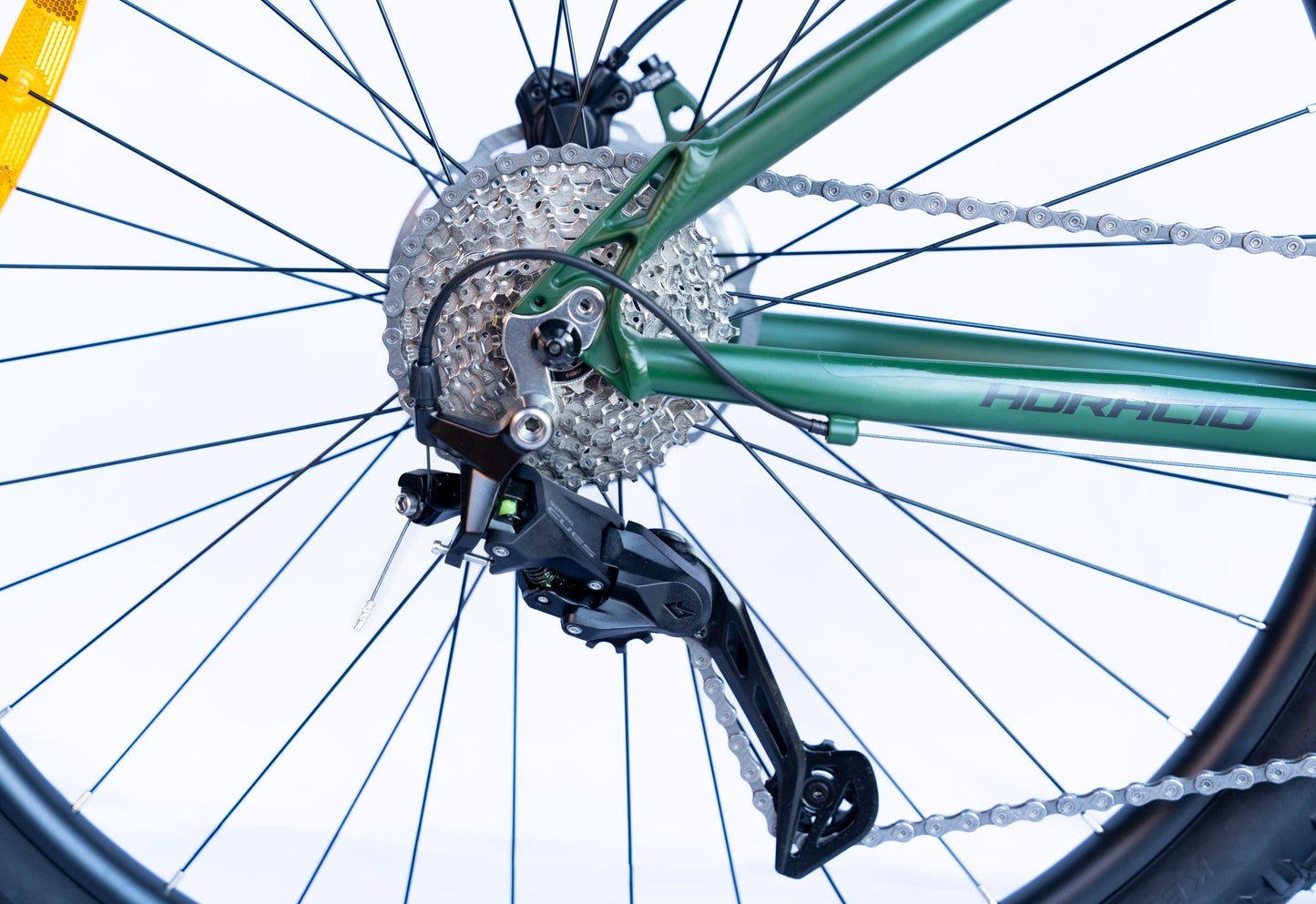

| Derailleur Rear | Shimano CUES RD-U3020-SGS, 9-speed, Shadow Design, Top-Normal, Direct Mount | Kickstand | Not included |
| Size | M | L | XL |
|---|---|---|---|
| Wheel Size | 29" | 29" | 29" |
| ST Seat Tube [MM] | 432 | 483 | 533 |
| TT Top Tube Length [MM] | 600 | 617 | 637 |
| CS Chain Stay Length [MM] | 445 | 445 | 445 |
| HTA Head Tube Angle [°] | 71 | 71 | 71 |
| STA Seat Tube Angle [°] | 73 | 73 | 73 |
| HT Head Tube [MM] | 105 | 115 | 125 |
| R Reach [MM] | 405 | 425 | 445 |
| S Stack [MM] | 635 | 645 | 655 |
| WB Wheel Base [MM] | 1095 | 1115 | 1135 |
| BBH Bottom Bracket Height [MM] | 315 | 315 | 315 |
| BD Bottom Bracket Drop [MM] | 50 | 50 | 50 |
| FL Fork Length [MM] | 522 | 522 | 522 |
| Seatpost Length [MM] | 350 | 350 | 350 |
| Handlebar Width [MM] | 720 | 720 | 720 |
| Stem Length [MM] | 70 | 70 | 70 |
| Crank Length [MM] | 175 | 175 | 175 |
FREQUENTLY ASKED QUESTIONS
Everything you need to know about the Blaze CUES M1
What is the design goal of the BLAZE CUES 29" MTB?
▼Why choose the BLAZE CUES 29" MTB?
▼What are the design features of the BLAZE CUES 29" MTB?
▼What is the price advantage of the BLAZE CUES 29" MTB?
▼Who is the BLAZE CUES 29" MTB designed for?
▼What's the difference between Shimano CUES and traditional drivetrains?
▼How easy is it to maintain the BLAZE CUES M1?
