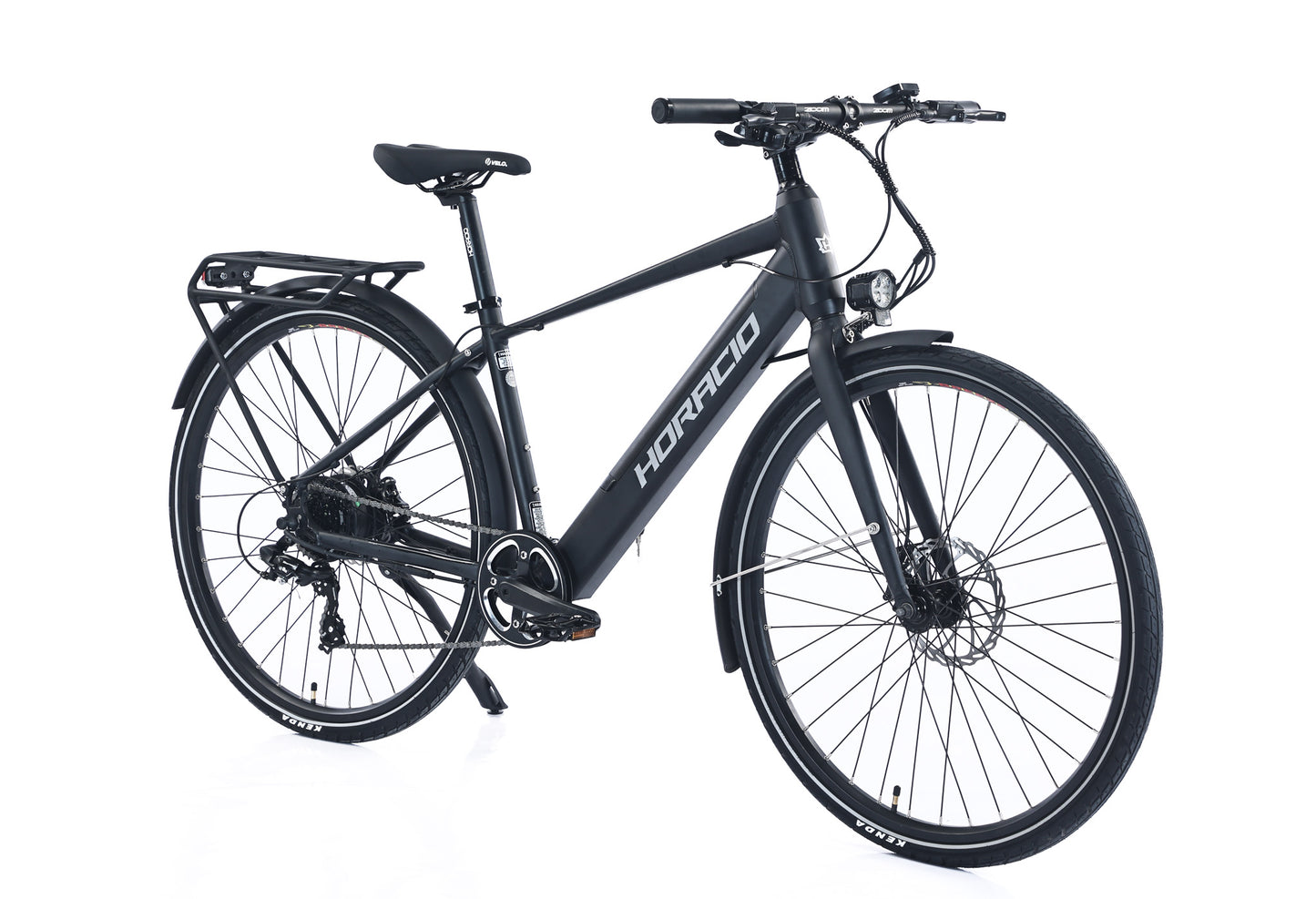

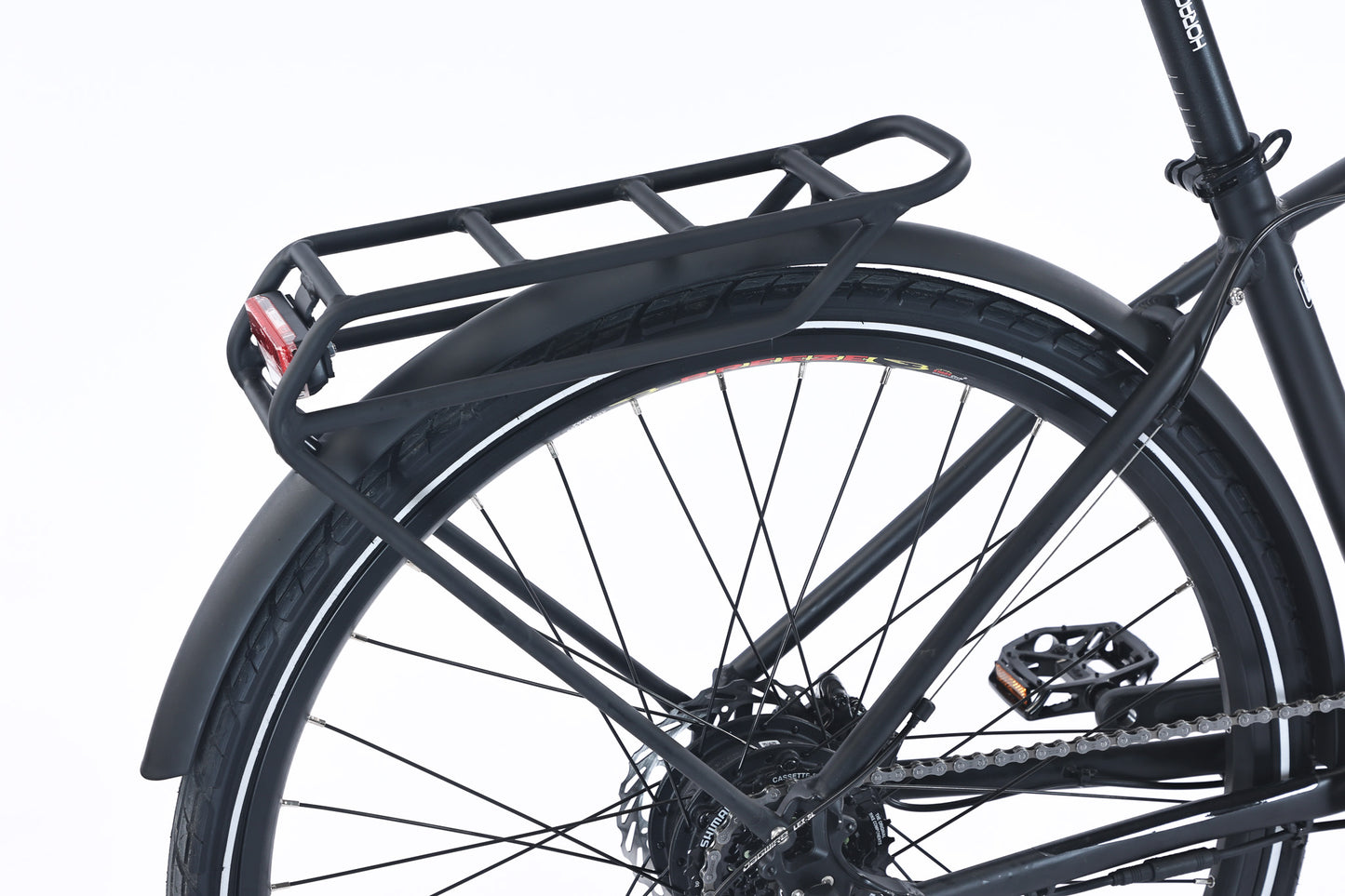

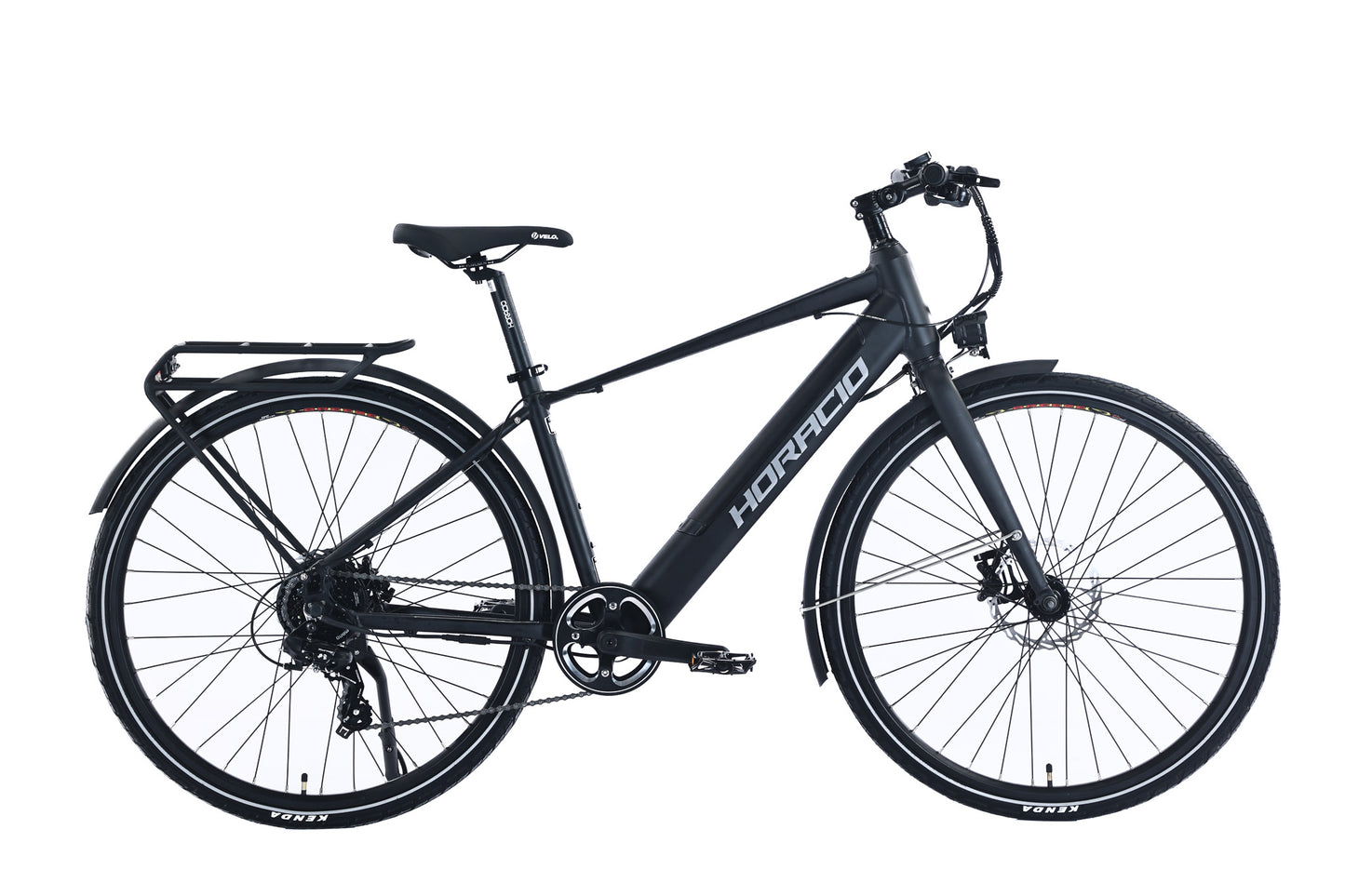

The Thunder Urban 700C excels with its sturdy alloy frame and seamless internal cabling. It's powered by a Bafang 36V 250W motor paired with a fast-charging 10.4Ah battery for a 70km range. Safe braking is guaranteed by TEKTRO disc brakes, while Shimano Tourney gears provide smooth transitions. Practicality is enhanced with a rear rack, mudguard, and front light, rolling on robust 700c double-wall rims and KENDA tires for a reliable urban ride.
SKU | M: HEB23Y700M17 L: HEB23Y700M19 |
---|---|
Season | 2024 |
Wheel Size | 700C |
Colour | Black |

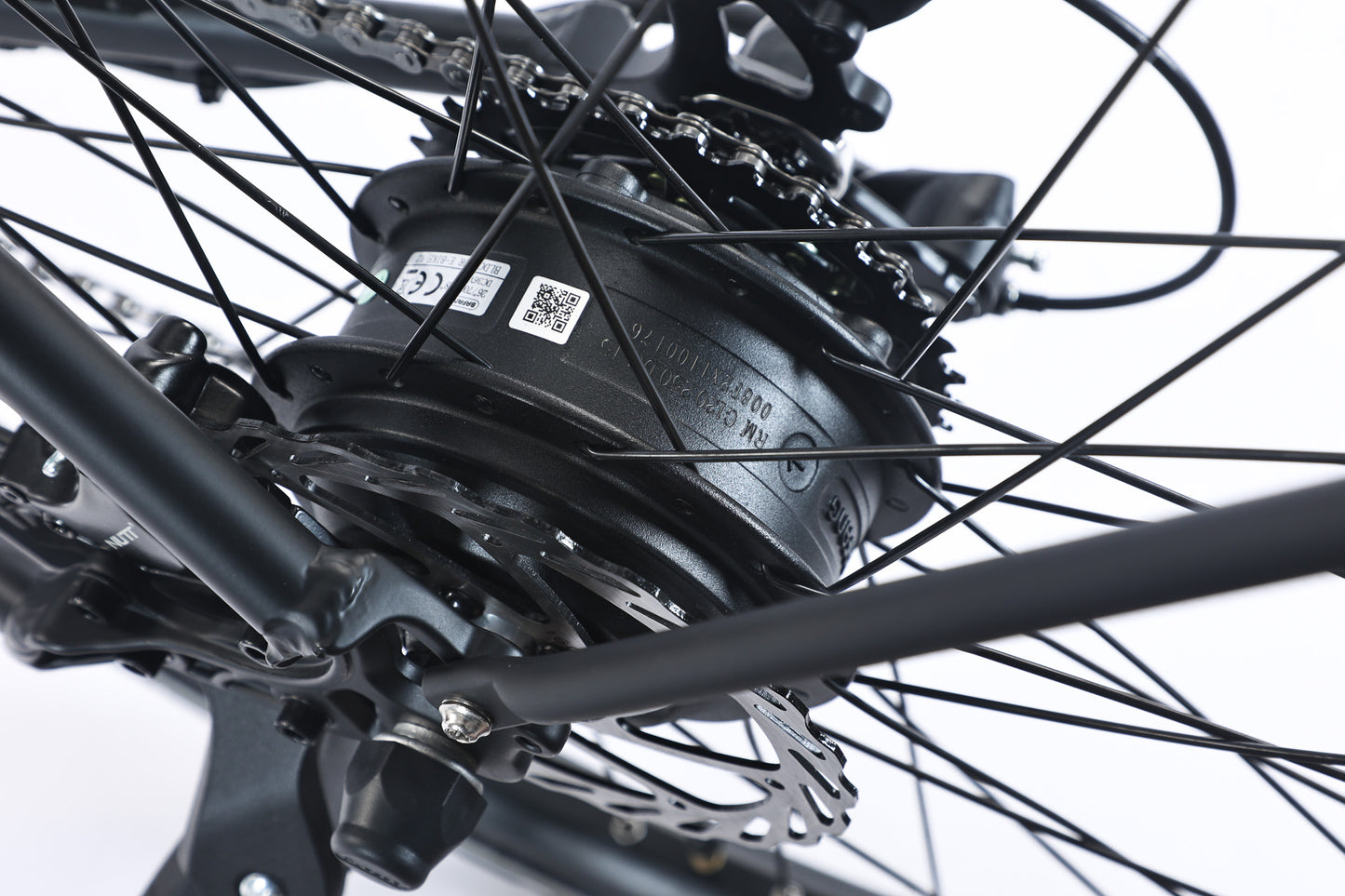

Electric Motor | Bafang RM G120,250,DC 36V250W rear hub motor |
Battery | LISHEN CELL (Lithium-ion battery)374Wh 36v/10.4ah |

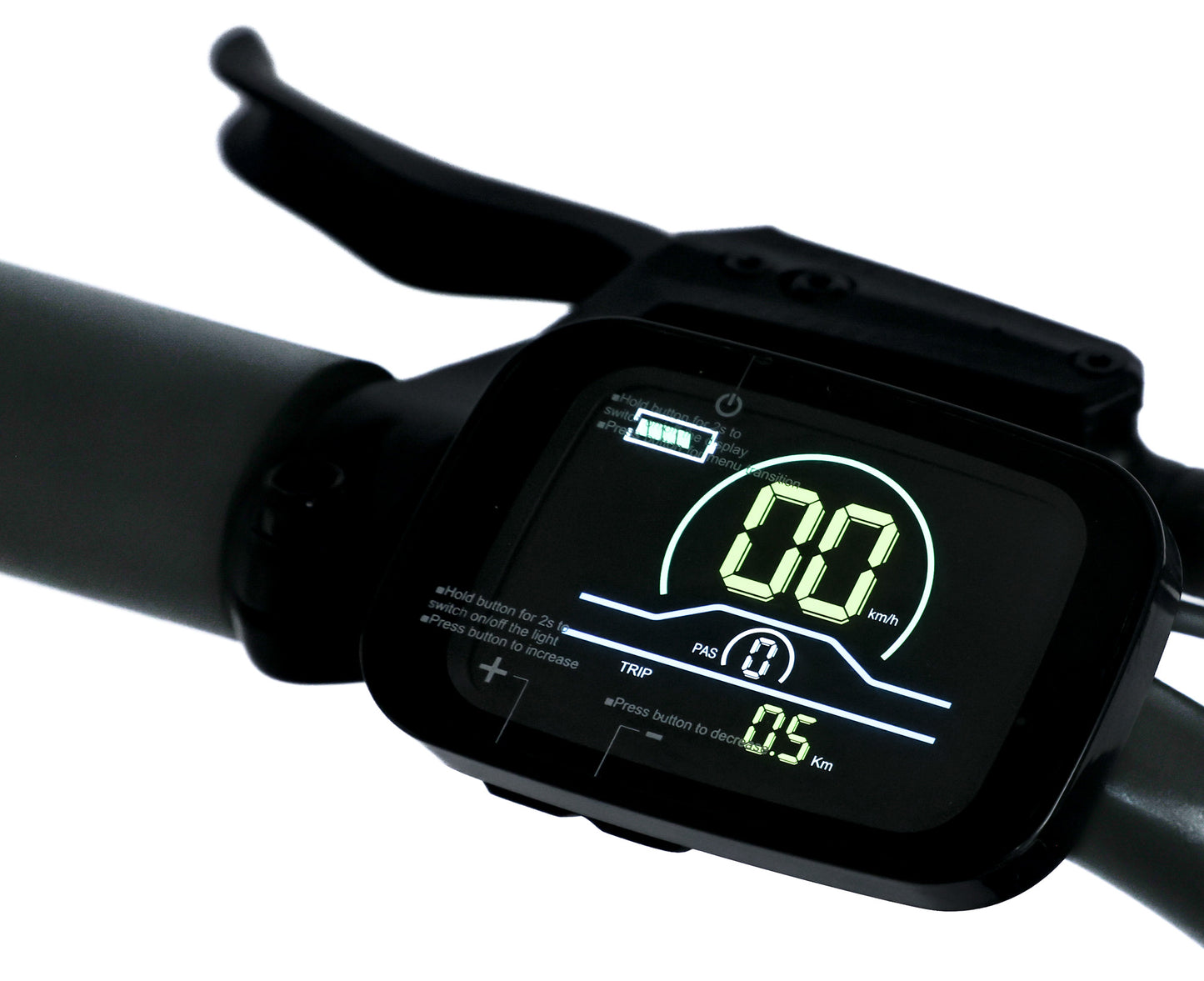

Dispay | LCD multi-function display for real-time monitoring of voltage, 3-speed shifting, speed, battery life, and walk assist |

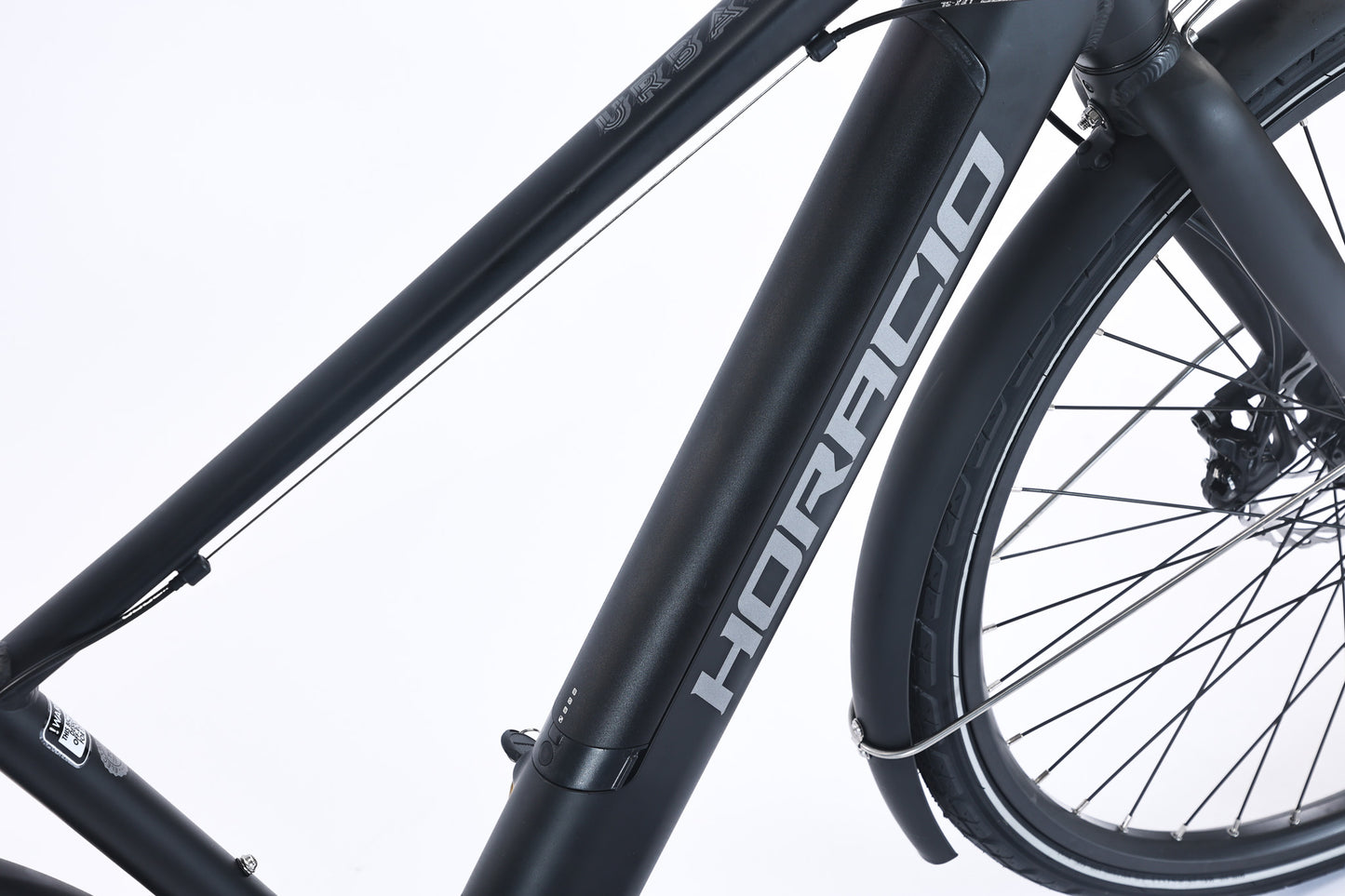

Frame | Enhanced hydroformed alloy frame |
Fork | 700C" full aluminum front fork, post-mount disc brake installation method |
Groupset Brand | Shimano Tourney |
Rear Gears | 8 Speed |
Speeds | 1 x 8 |
Shifters | LTWOO SL-V4007 |
Cassette | SHIMANO HG200 8-SPEED 12-32T INDEX CASSETTE |

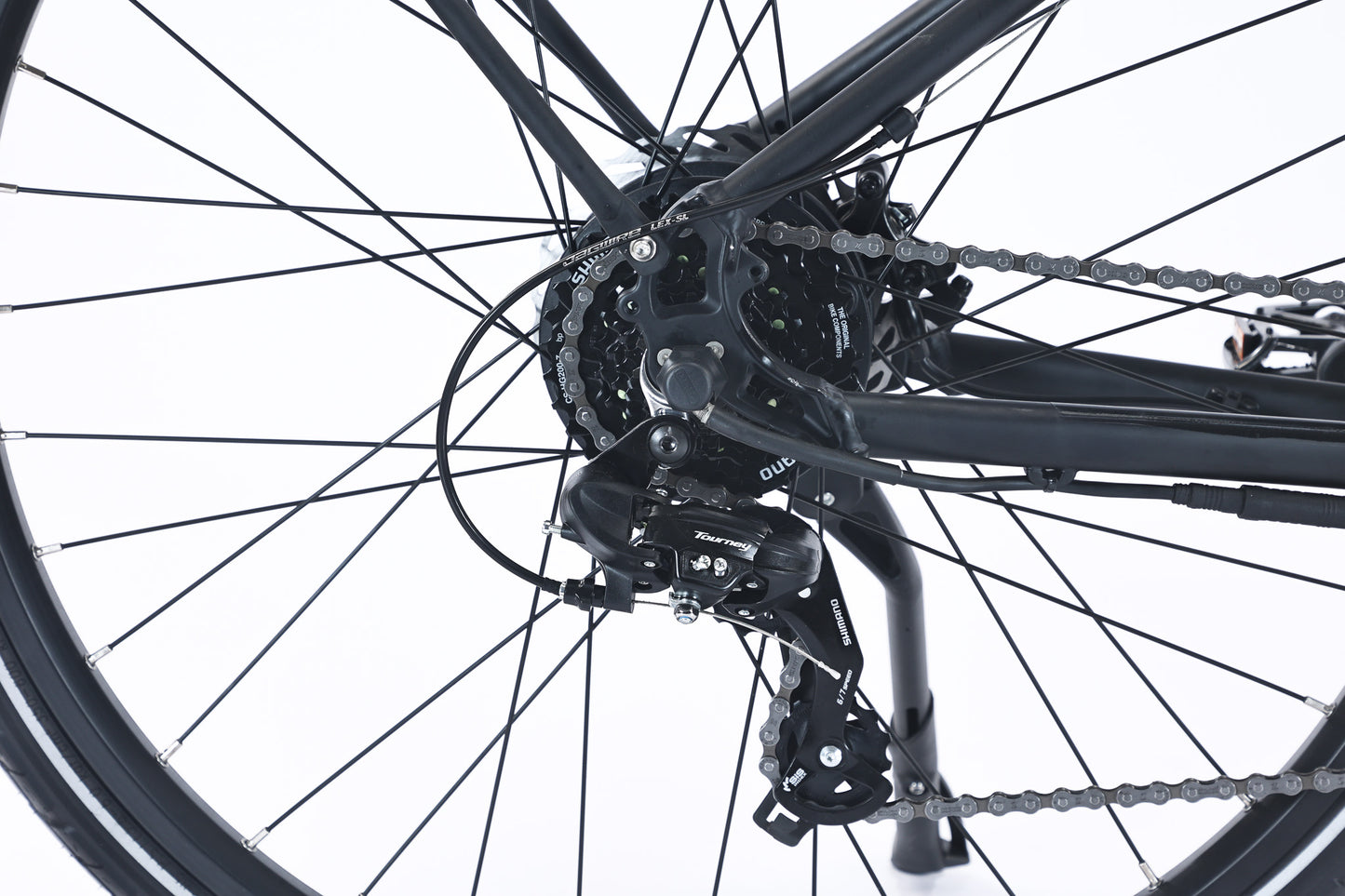

Derailleur Rear | SHIMANO Shimano TX800 8-SPEED |
Brake Type | Mechanical Disc Brake |
Brakes | TEKTRO MECHANICAL MD-M280 DISC BRAKE ROTOR :160mm |
Sensor | Torque sensor |
Chain | KMC C8 |
Bottom Bracket | Sealed Bearing |
Grips | Metal aluminum ring lock Rubber Grips, Black |
Headset | NECO Semi-Integrated |

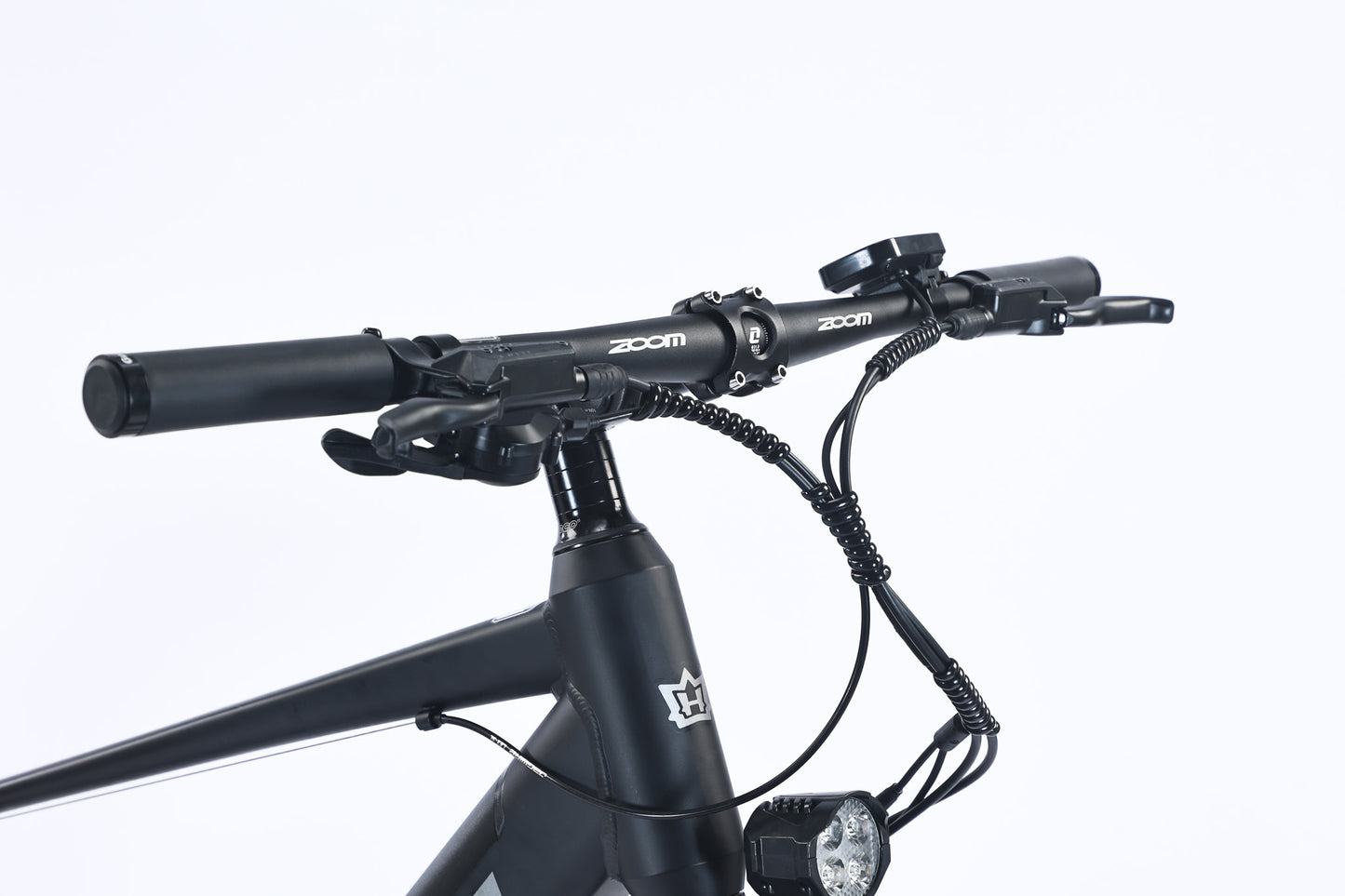

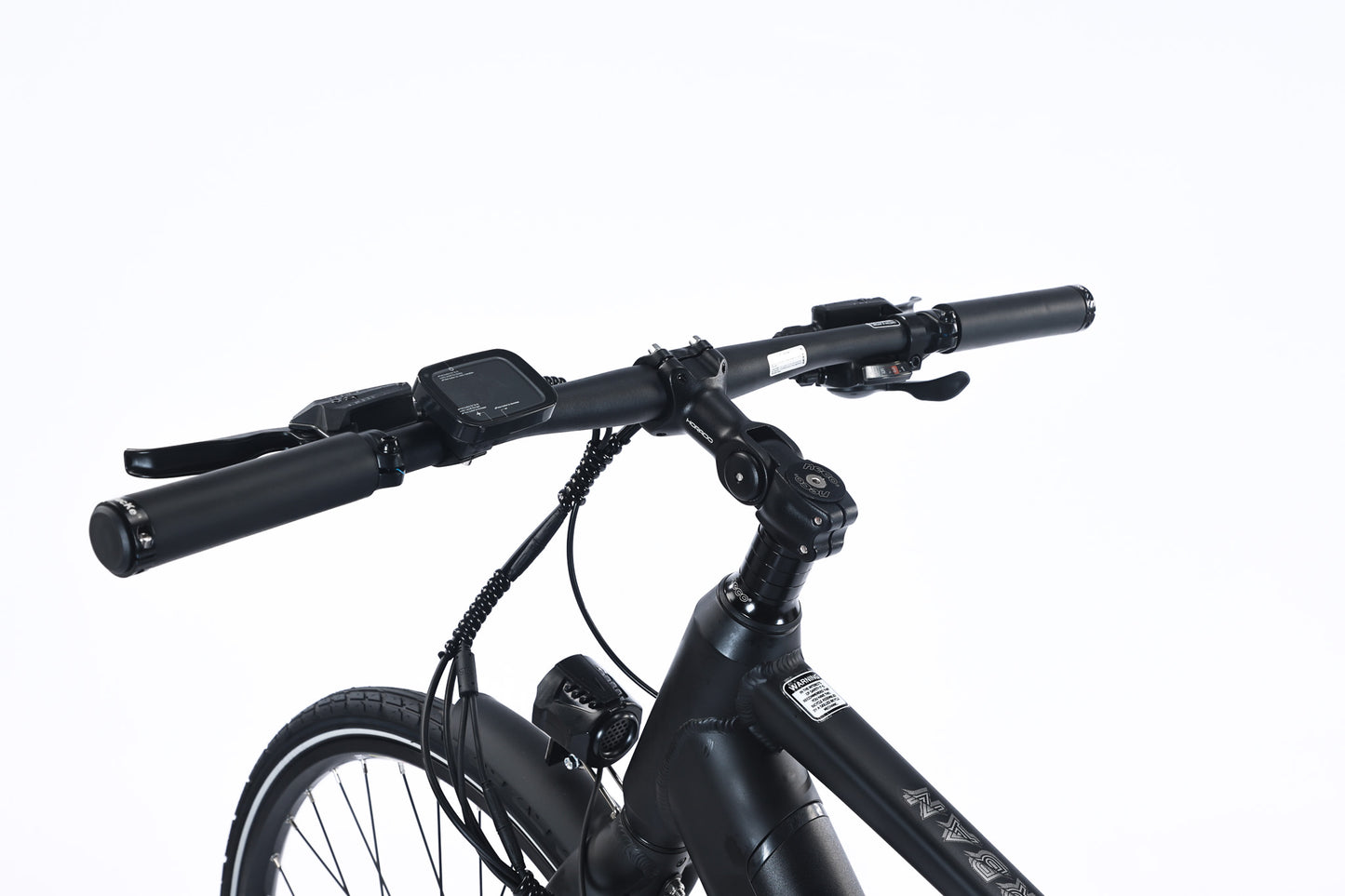

Handlebar | ZOOM MTB-AL-200BT Alloy Handlebar, Dia: 31,8mm, 700mm, 6Ā° Backsweep, 20mm Rise, Sanblasted Black |
Hubs | Alloy disc specific MTB with bafang hub motor |

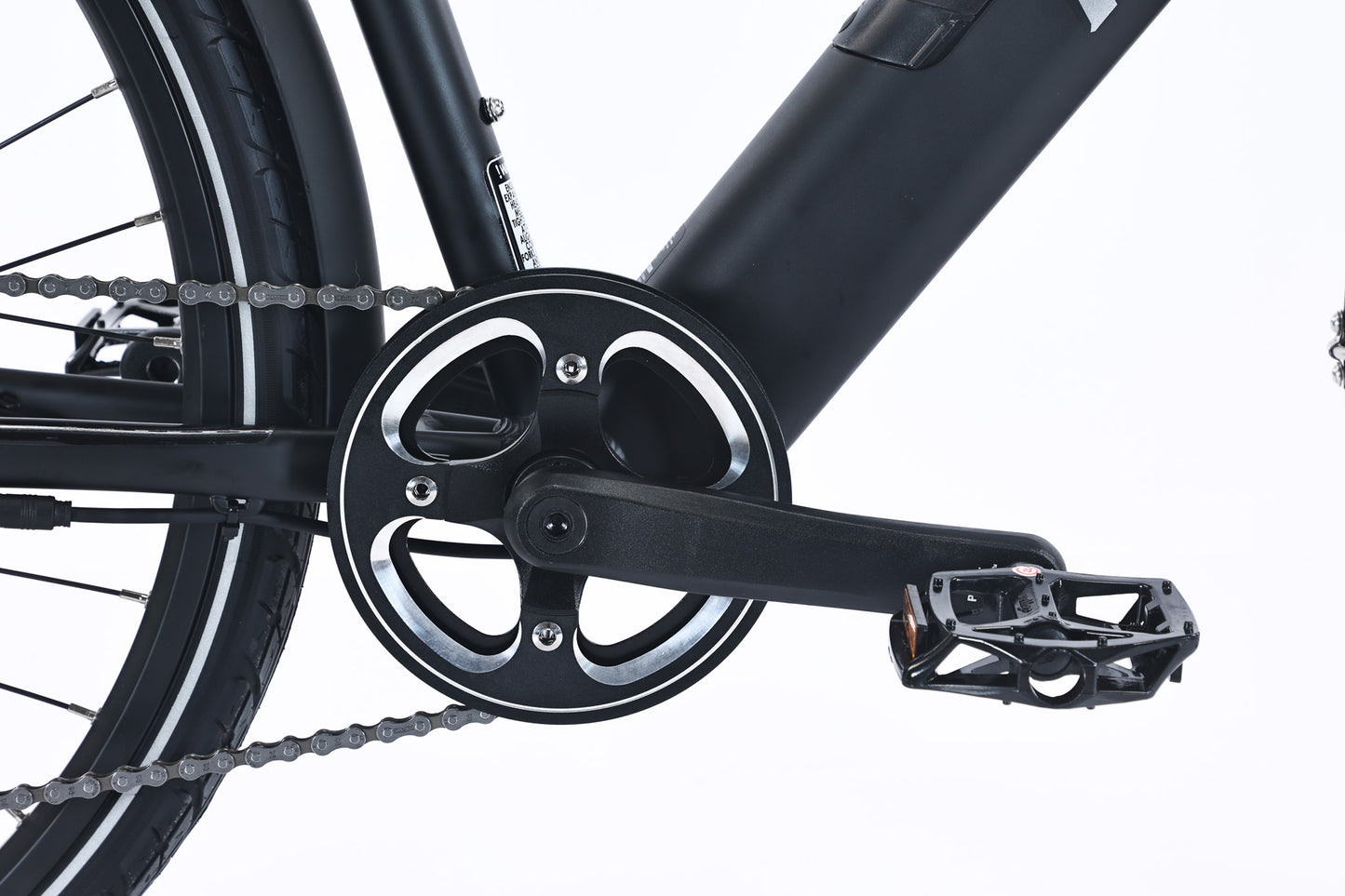

Crankset | Cankset 1/2"*3/32"*38T*170mmL*9/16" with alloy guard |
Pedals | Wellgo Alloy Mountain Bike with DU/Sealed 9/16 |

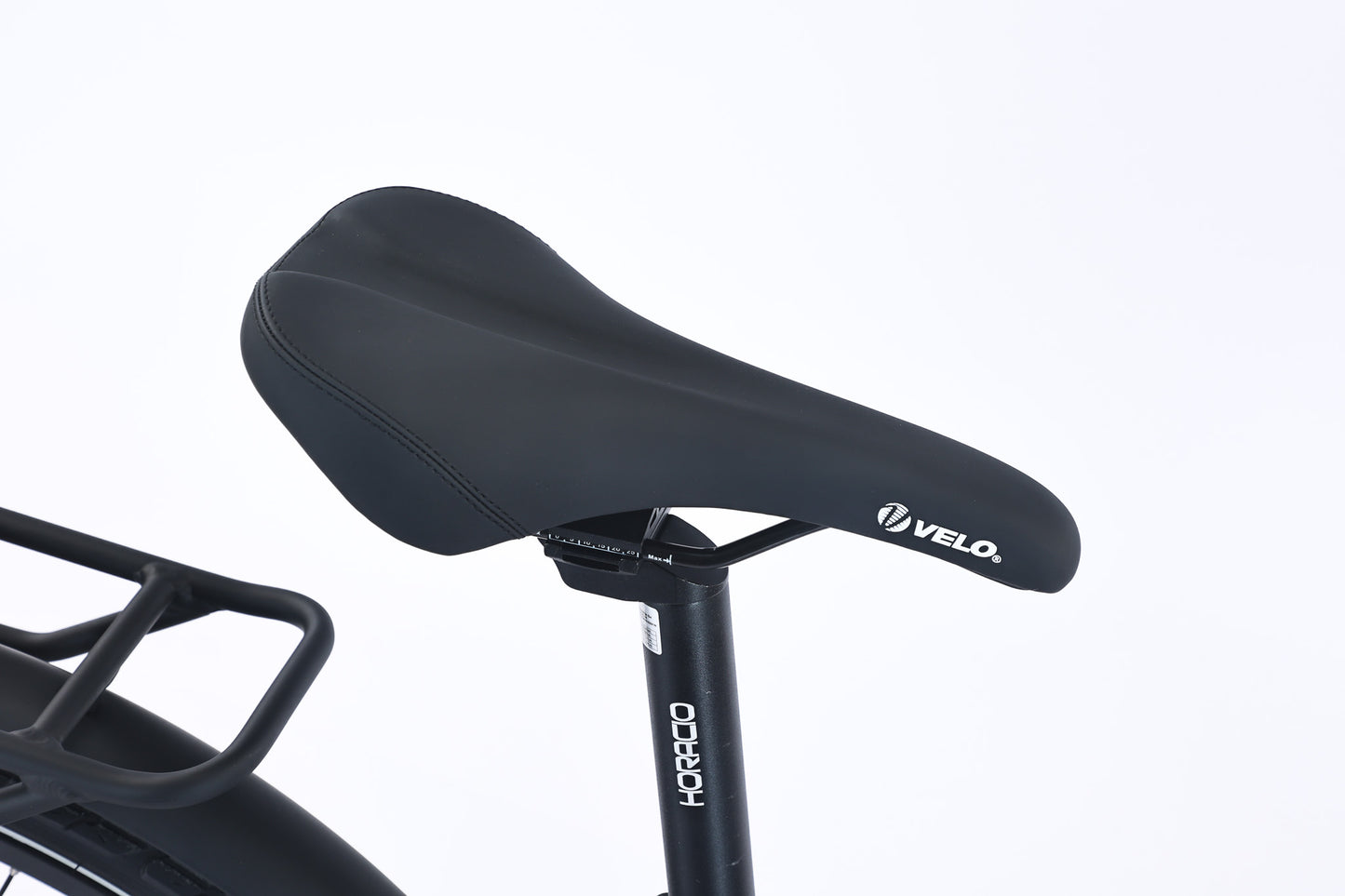

Saddle | VELO VL-3530 |
Seatpost | ZOOM Alloy 31.6 x 350mm |
Stem | ZOOM Alloy Ī¦28.6XĪ¦31.8mm, 7 Backsweep, Black, 31,8mm |
Rims | 700C*13G, DOUBLE WALL |
Tyres | KENDA K-1153-700C*40C |
Tubes | KENDA 700C*40C - 2.1/2.4 A/V:48mm |
WEIGHT | 21.5 kg(27.5" L) |
Kickstand | Included (pay attention to the usage) |
Bell | YES |

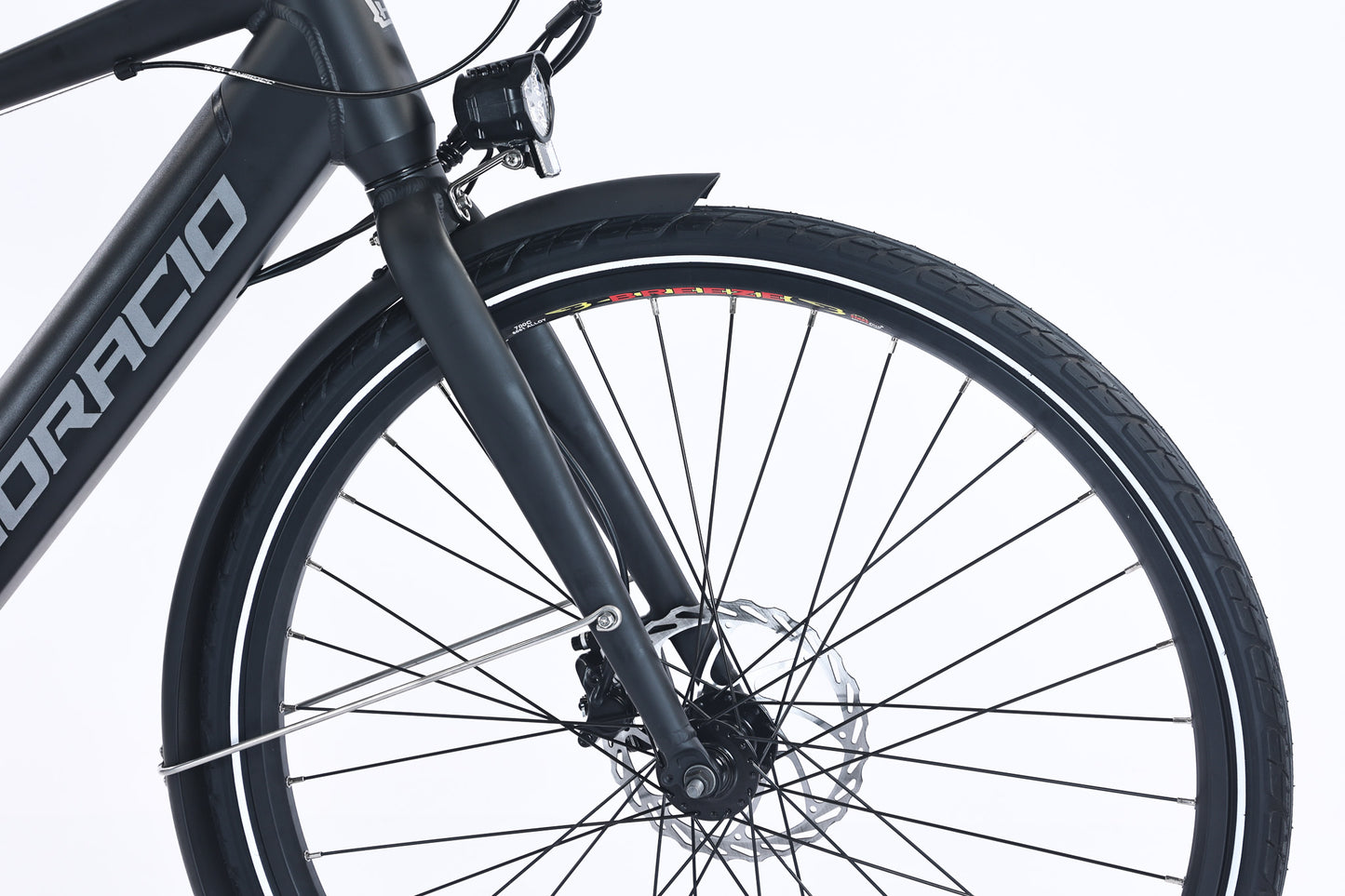

headlights | Front light |
Mudguards | YES |
Chain Guard | YES |
SKU | M:HEB23Y700M17 L:HEB23Y700M19 | Chain | KMC C8 |
---|---|---|---|
Season | 2024 | Bottom Bracket | Sealed Bearing |
Wheel Size | 700C | Grips | Comfortable ergonomic Rubber Grips, Black |
Colour | Black | Headset | NECO Semi-Integrated |
Electric Motor | Bafang RM G120,250,DC 36V250W rear hub motor | Handlebar | ZOOM MTB-AL-200BT Alloy Handlebar, Dia: 31,8mm, 700mm, 6Ā° Backsweep, 20mm Rise, Sanblasted Black |
Battery | LISHEN CELL (Lithium-ion battery)374Wh 36v/10.4ah | Hubs | Alloy disc specific MTB with bafang hub motor |
Display | LCD multi-function display for real-time monitoring of voltage, 3-speed shifting, speed, battery life, and walk assist | Crankset | Cankset 1/2"*3/32"*38T*170mmL*9/16" with alloy guard |
Frame | Enhanced hydroformed alloy frame | Pedals | Wellgo Alloy Mountain Bike with DU/Sealed 9/16 |
Fork | 700C" full aluminum front fork, post-mount disc brake installation method | Saddle | VELO VL-3530 |
Groupset Brand | Shimano Tourney | Seatpost | ZOOM Alloy 31.6 x 350mm |
Rear Gears | 8 Speed | Stem | Horacio Alloy Foged Stem, Black, 31,8mm |
Speeds | 1 x 8 | Rims | 700C*13G, DOUBLE WALL |
Shifters | LTWOO SL-V4007 | Tyres | KENDA K-1153-700C*40C |
Cassette | SHIMANO HG200 8-SPEED 12-32T INDEX CASSETTE | Tubes | KENDA 700C*40C - 2.1/2.4 A/V:48mm |
Derailleur Rear | SHIMANO Shimano TX800 8-SPEED | WEIGHT | 21.5 kg(27.5" L) |
Brakes | Mechanical Disc Brake | Kickstand | Included (pay attention to the usage) |
Brake Type | TEKTRO MECHANICAL MD-M280 DISC BRAKE ROTOR :160mm | Bell | Yes |
Sensor | Torque sensor | headlights | YES |
Mudguards | YES | Chain Guard | YES |
Size | M (17") | L (19") |
---|---|---|
Wheel Size | 700C | 700C |
(A) Seat Tube (mm) | 432 | 480 |
(B) Seat Tube (mm) | 617 | 595 |
(C) Chain Stay Length (mm) | 445 | 460 |
(D) Head Tube Angle (Ā°) | 70.5 | 70.5 |
(E) Seat Tube Angle (Ā°) | 73 | 73 |
(F) Head Tube (mm) | 180 | 180 |
(G) Reach (mm) | 435 | 405 |
(H) Stack (mm) | 596 | 693 |
(I) Wheel Base (mm) | 1120 | 1153.5 |
(J) Bottom Bracket Height | 282 | 282 |
Handlebar Width | 700 | 700 |
Stem Length | 80 | 80 |
Crank Length | 170 | 170 |
