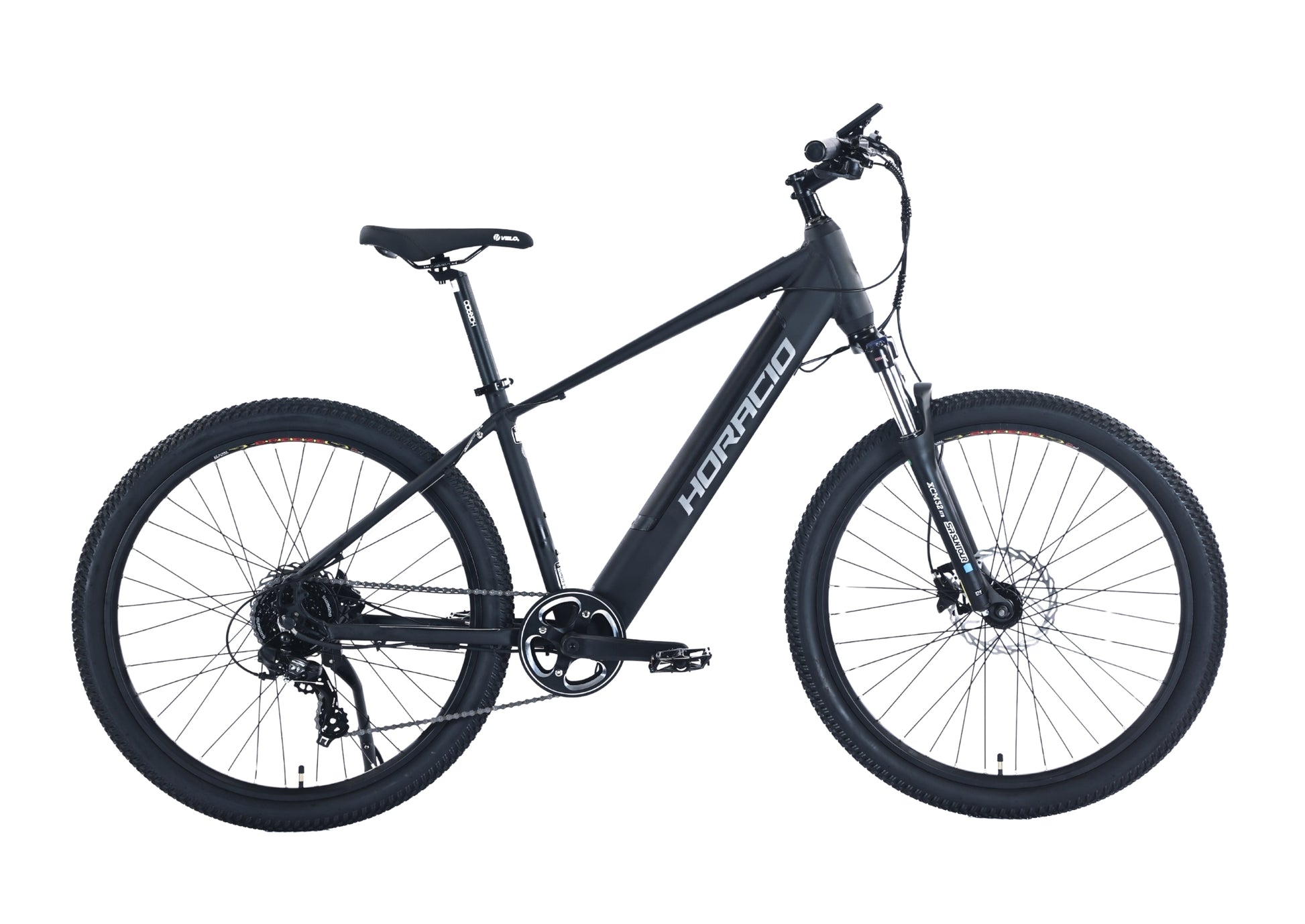

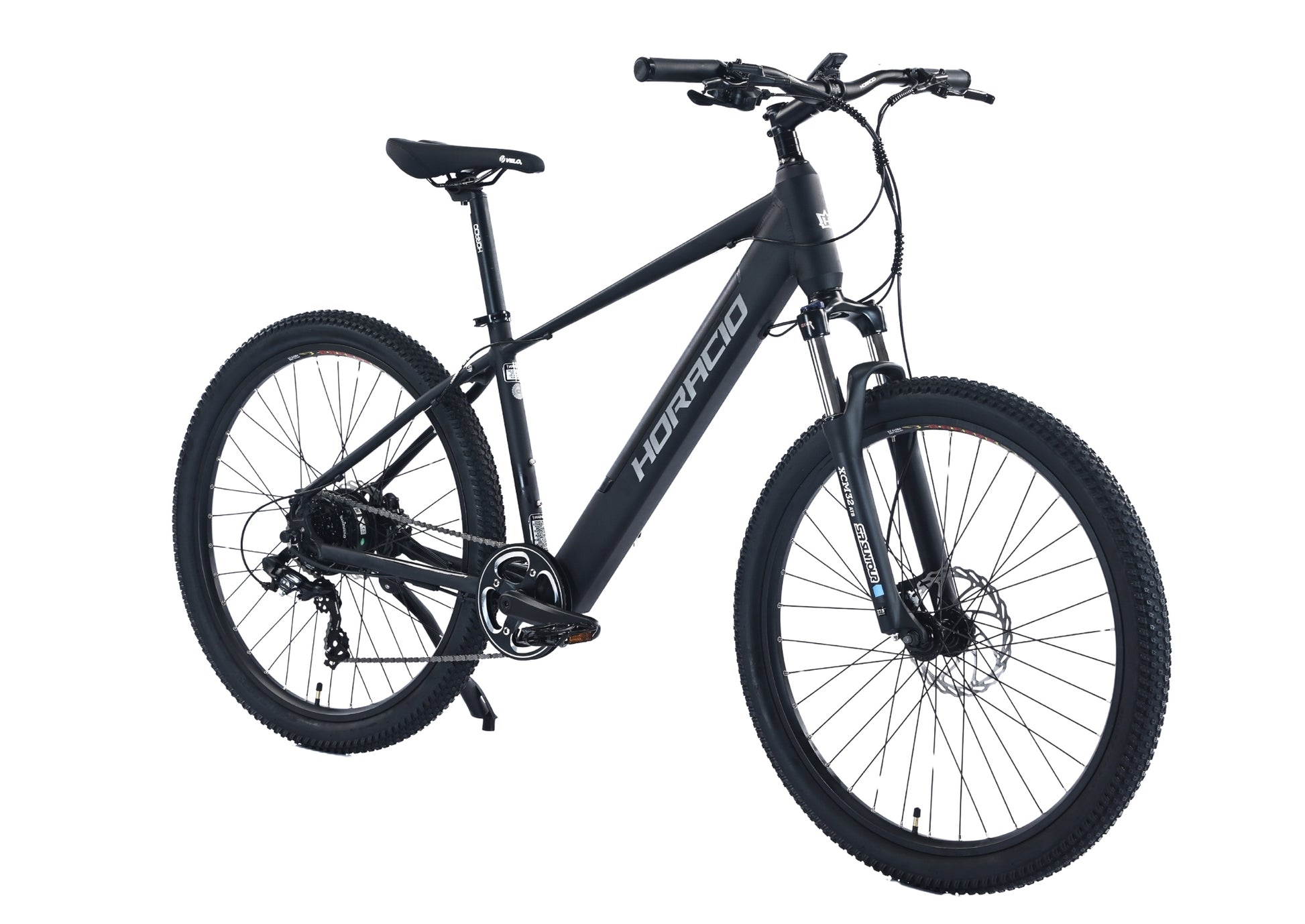

The Thunder MTB 27.5" e-bike combines top-notch performance with a sleek, versatile design. Its custom alloy frame houses a powerful Bafang 36V250W motor and a long-range 36V 10.4Ah battery, ideal for both city and trail rides. The bike features a Suntour fork for excellent terrain adaptability, a Shimano Altus drivetrain for smooth shifting, and robust SHIMANO hydraulic brakes for consistent stopping power. Finished with durable KENDA tires for superior grip, the Thunder MTB 27.5 offers an electrifying ride experience.
SKU | M: HEB23Y708M17 L: HEB23Y708M19 |
---|---|
Season | 2025 |
Wheel Size | 27.5" (650b) |
Colour | Black |

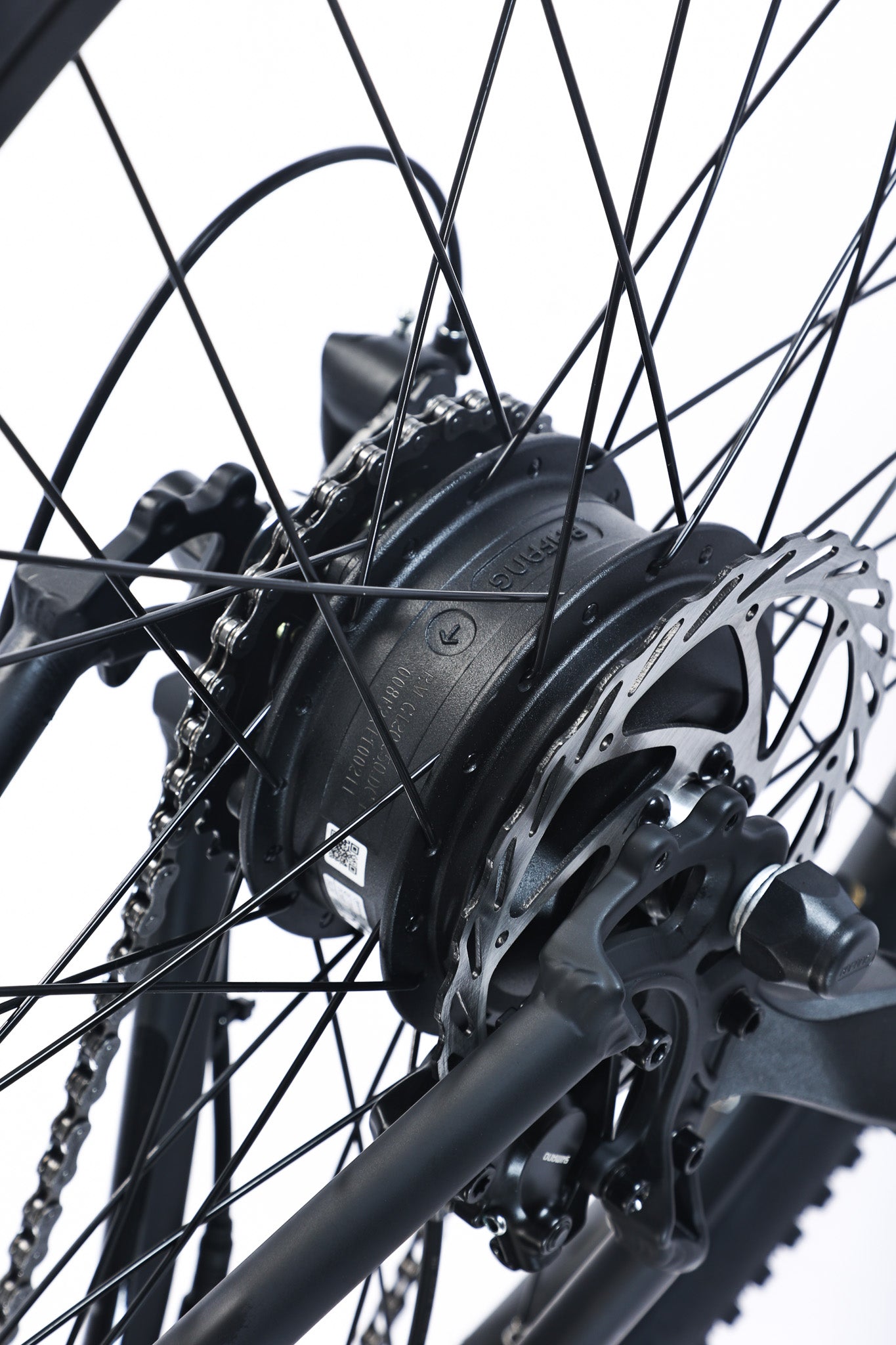

Electric Motor | Bafang RM G120,250,DC 36V250W rear hub motor |
Battery | LISHEN CELL (Lithium-ion battery)374Wh 36v/10.4ah |

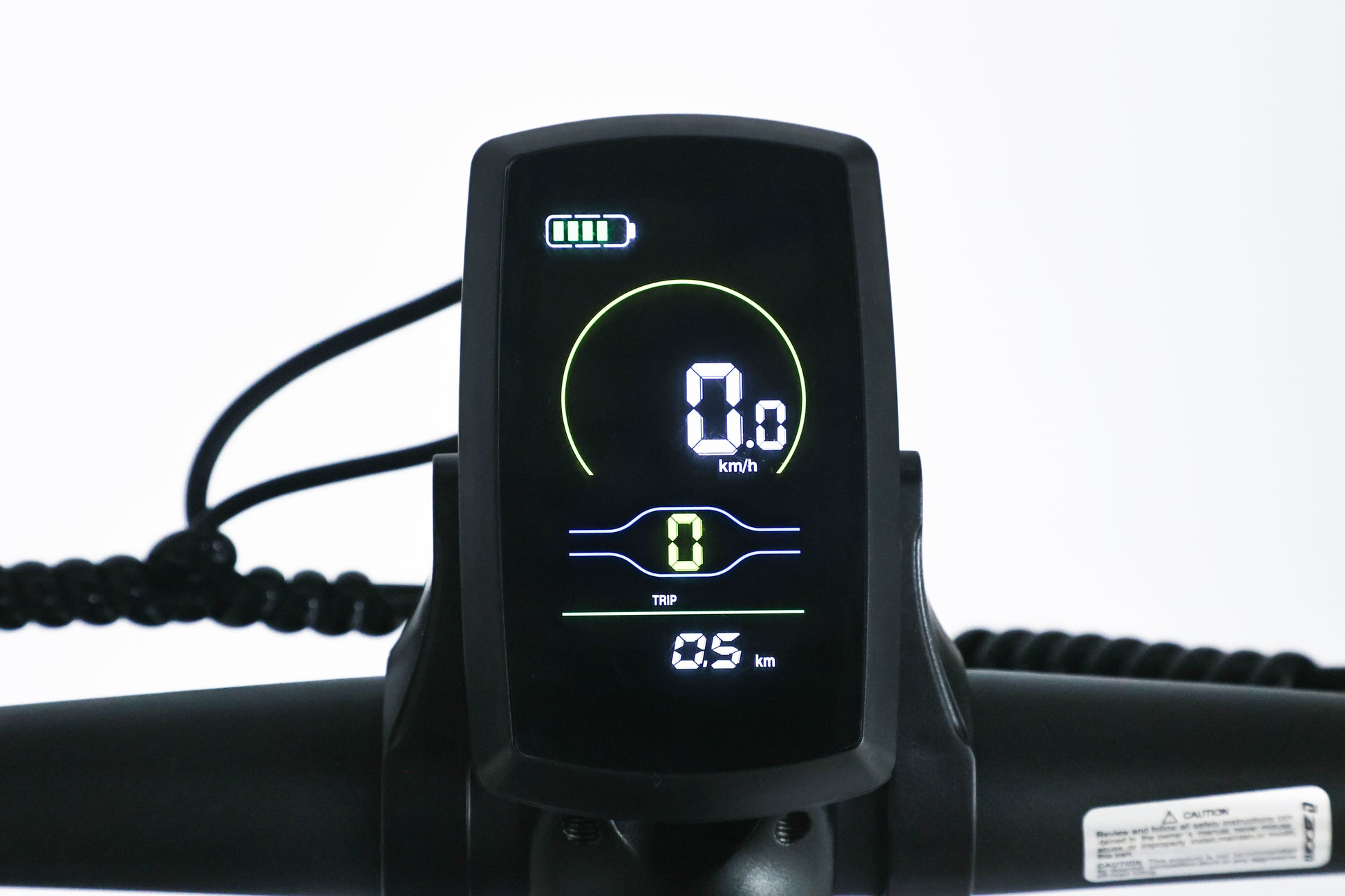

Dispay | Yolin YL80C 3-speed shifting |

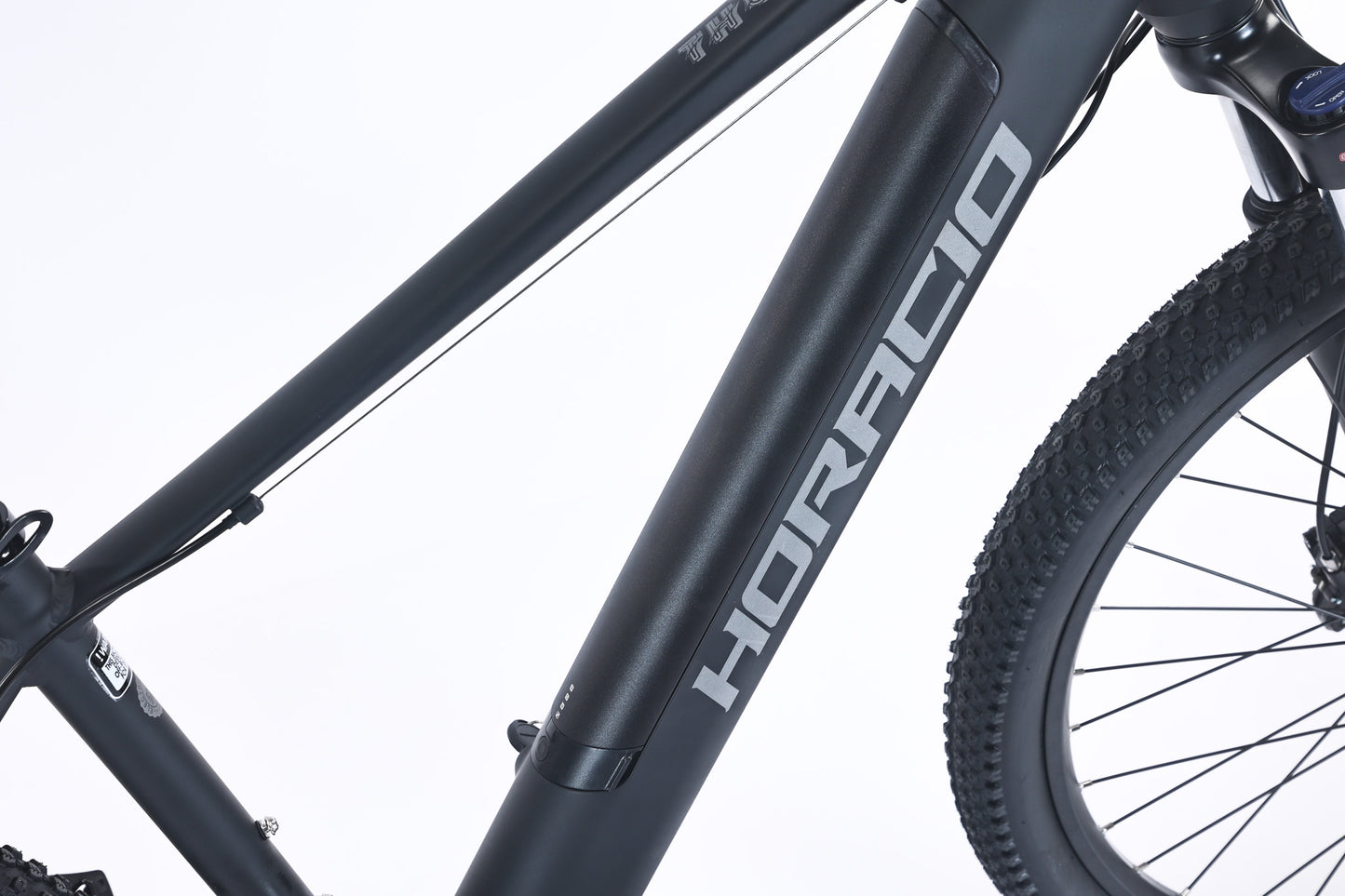

Frame | Enhanced hydroformed alloy frame |

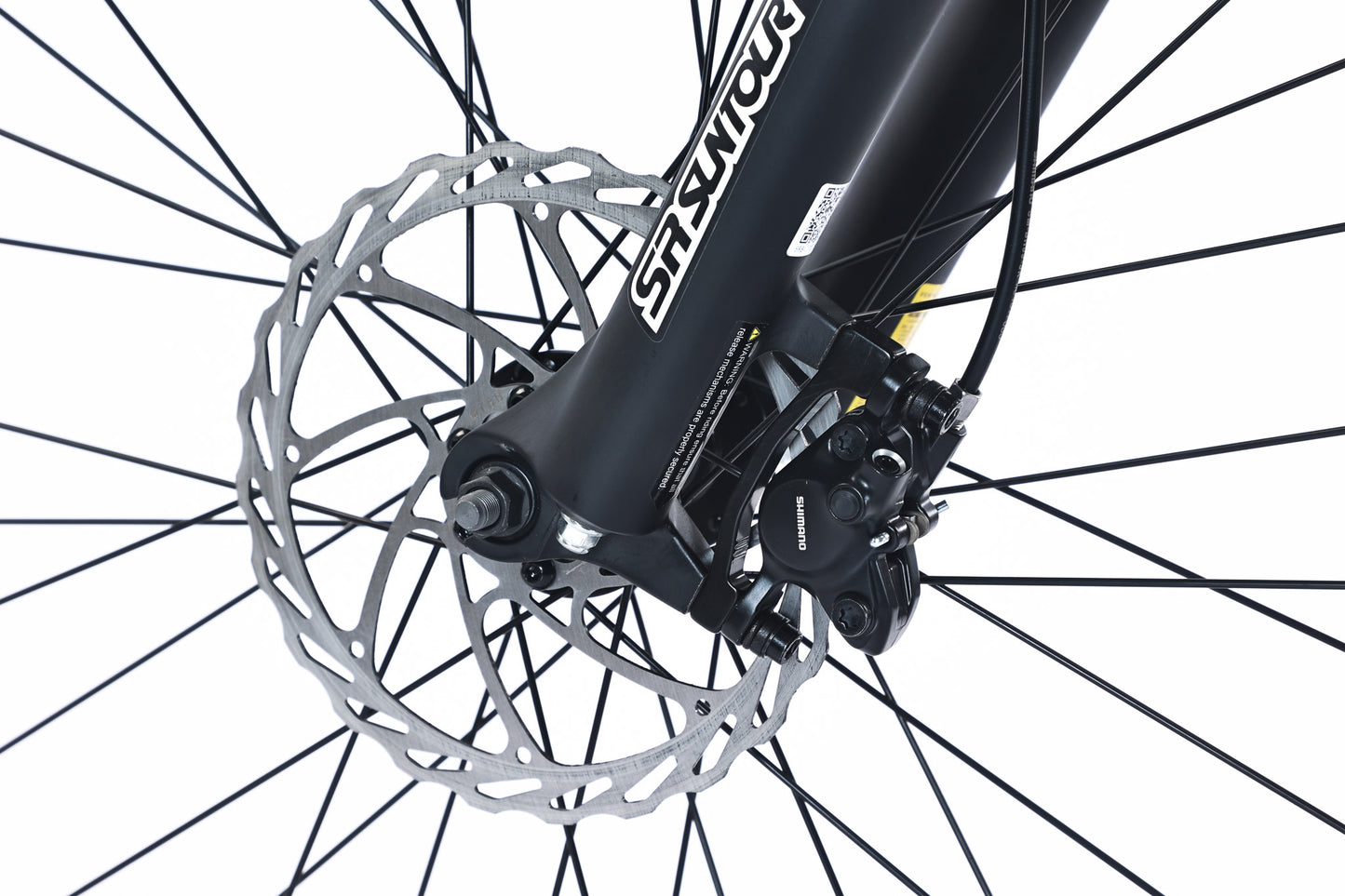

Fork | Suntour XCM32 ATB, TRAVEL:100MM with lockout, Preload adjustment |
Groupset Brand | Shimano Tourney |
Rear Gears | 7 Speed |
Speeds | 1 x 7 |
Shifters | Shimano M315 |
Cassette | SHIMANO HG200 8-SPEED 12-32T INDEX CASSETTE |

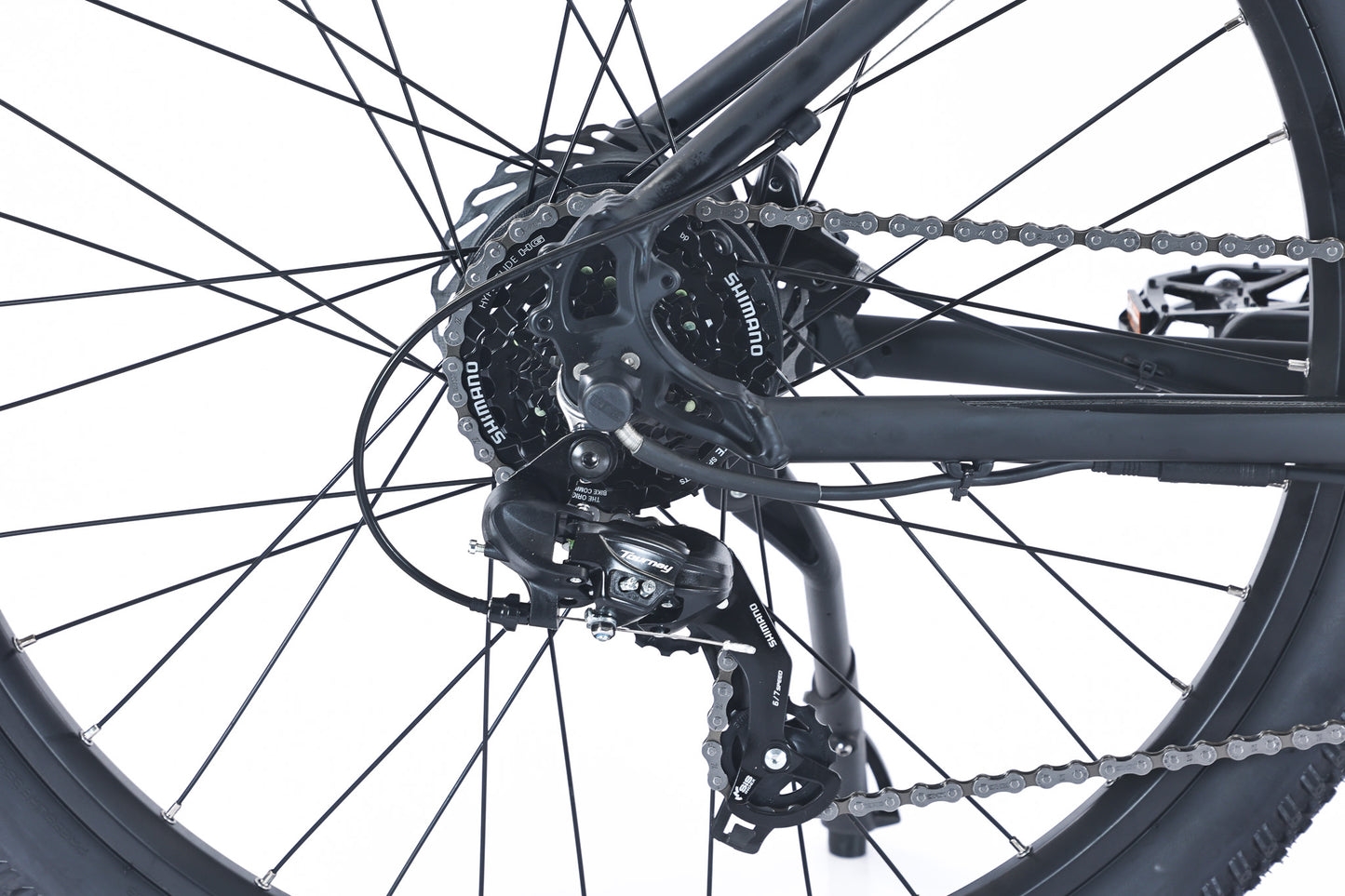

Derailleur Rear | SHIMANO Shimano TX800 7-SPEED |
Brake Type | Hydraulic Disc Brake |

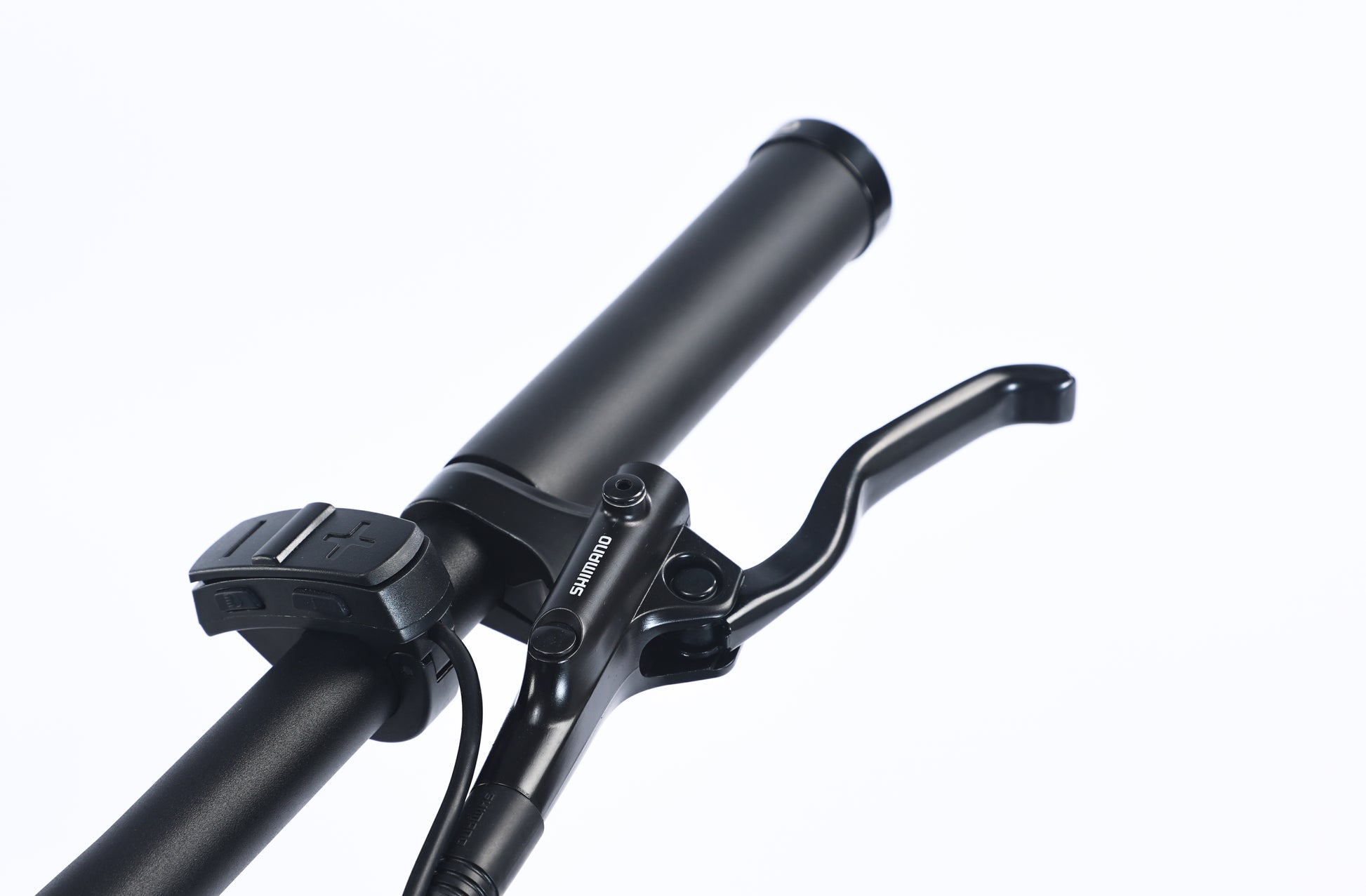

Brakes | SHIMANO Hydraulic Disc Brake |
Sensor | Torque sensor |
Chain | KMC Z8 |
Bottom Bracket | Sealed Bearing |
Grips | Comfortable ergonomic Rubber Grips, Black |
Headset | NECO Semi-Integrated |
Handlebar | HORACIO Alloy Handlebar, Dia: 31,8mm, 700mm, 6° Backsweep, 20mm Rise, Sanblasted Black |
Hubs | Alloy disc specific MTB with bafang hub motor |

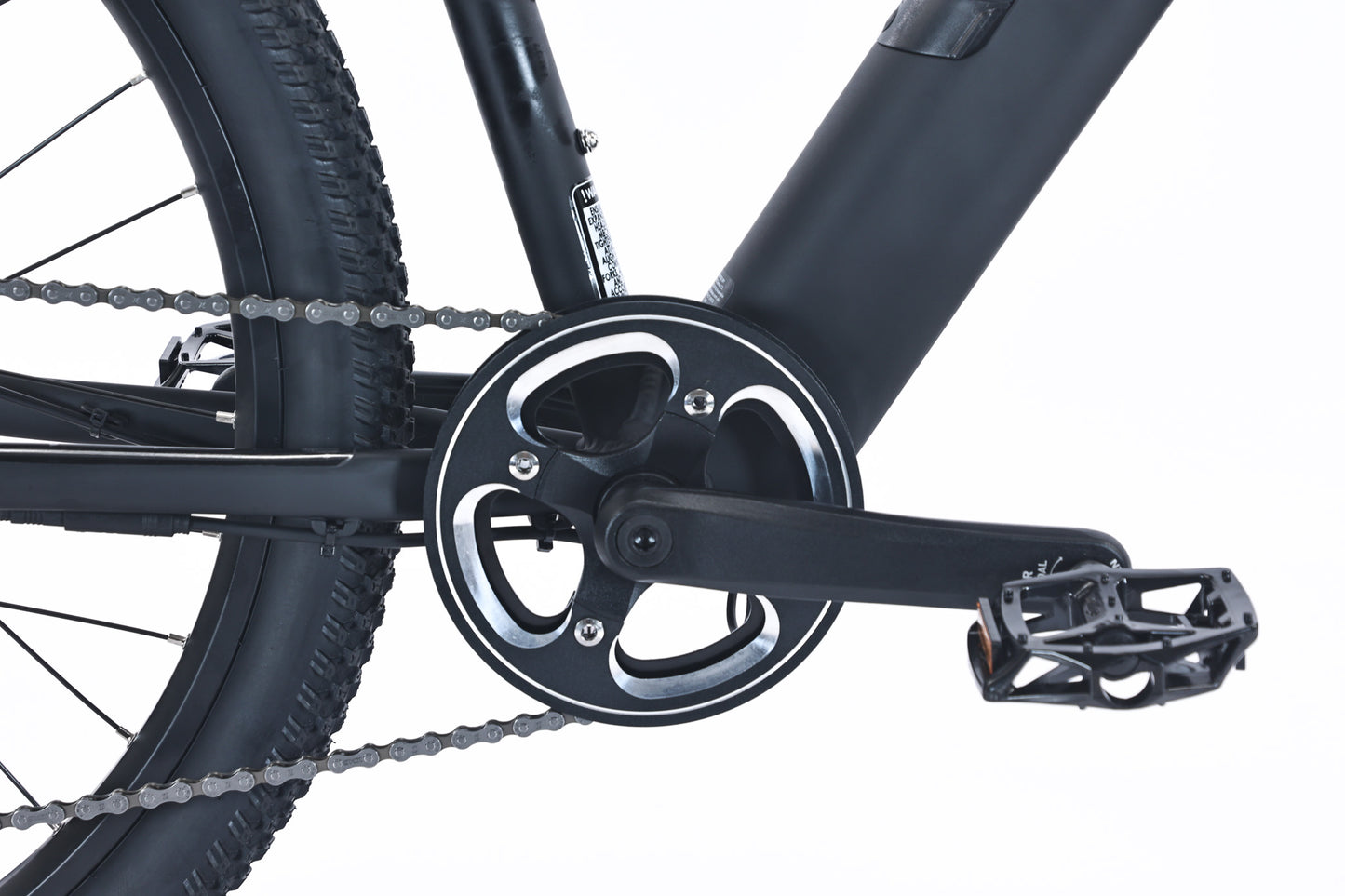

Crankset | Cankset 1/2"*3/32"*38T*170mmL*9/16" with alloy guard |
Pedals | Wellgo Alloy Mountain Bike with DU/Sealed 9/16 |

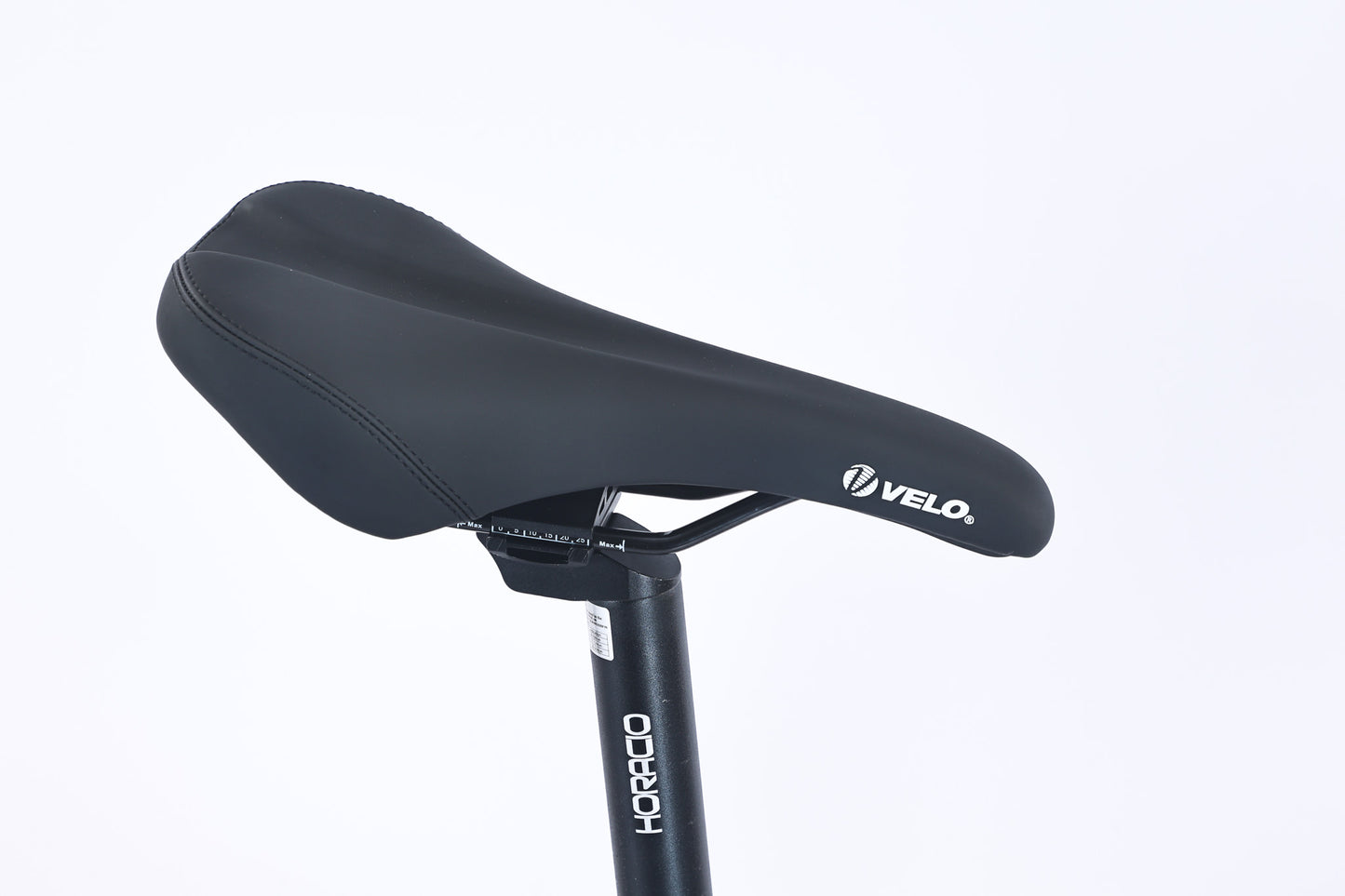

Saddle | VELO MTB VL-3889 |
Seatpost | HORACIO Alloy 31.6 x 350mm |
Stem | HORACIO Alloy Φ28.6XΦ31.8mm, 7 Backsweep, Black, 31,8mm |

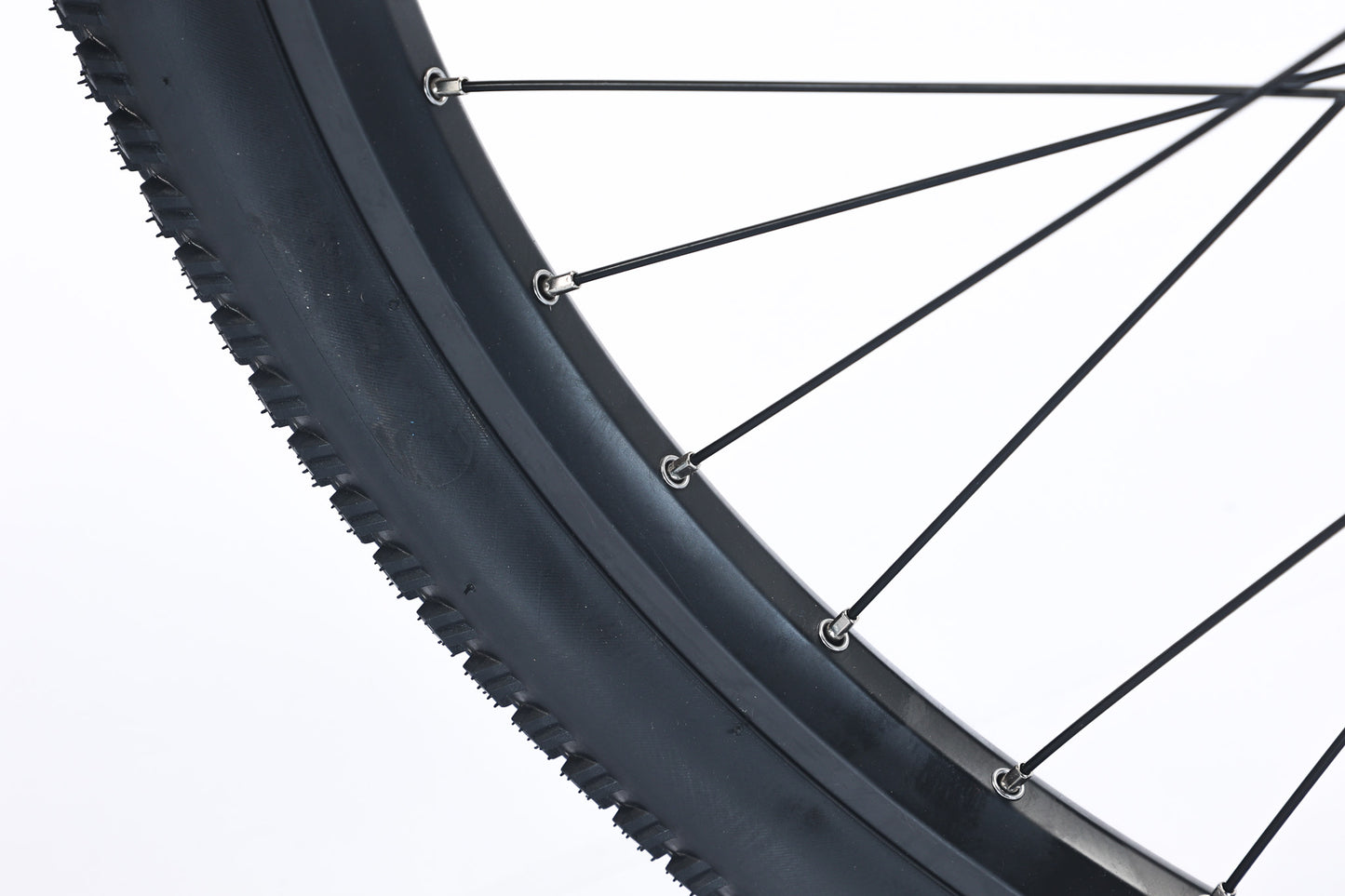

Rims | 27.5*14G, DOUBLE WALL |
Tyres | KENDA 27.5*2.25 60Tpi |
Tubes | KENDA 27.5*2.25 A/V |
WEIGHT | 22.1kg (incl. 2.5kg battery) |
Kickstand | Included (pay attention to the usage) |
Bell | YES |
headlights | NO |
SKU | M: HEB23Y708M17 L: HEB23Y708M19 | Chain | KMC Z8 |
---|---|---|---|
Season | 2025 | Bottom Bracket | Sealed Bearing |
Wheel Size | 27.5" (650b) | Grips | Comfortable ergonomic Rubber Grips, Black |
Colour | Black | Headset | NECO Semi-Integrated |
Electric Motor | Bafang RM G120,250,DC 36V250W rear hub motor | Handlebar | HORACIO Alloy Handlebar, Dia: 31,8mm, 700mm, 6° Backsweep, 20mm Rise, Sanblasted Black |
Battery | LISHEN CELL (Lithium-ion battery)374Wh 36v/10.4ah | Hubs | Alloy disc specific MTB with bafang hub motor |
Display | Yolin YL80C 3-speed shifting | Crankset | Cankset 1/2"*3/32"*38T*170mmL*9/16" with alloy guard |
Frame | Enhanced hydroformed alloy frame | Pedals | Wellgo Alloy Mountain Bike with DU/Sealed 9/16 |
Fork | Suntour XCM32 ATB, TRAVEL:100MM with lockout, Preload adjustment | Saddle | VELO MTB VL-3889 |
Groupset Brand | Shimano Tourney | Seatpost | HORACIO Alloy 31.6 x 350mm |
Rear Gears | 7 Speed | Stem | HORACIO Alloy Φ28.6XΦ31.8mm, 7 Backsweep, Black, 31,8mm |
Speeds | 1 x 7 | Rims | 27.5*14G, DOUBLE WALL |
Shifters | Shimano M315 | Tyres | KENDA 27.5*2.25 60Tpi |
Cassette | SHIMANO HG200 7-SPEED 12-32T INDEX CASSETTE | Tubes | Kenda 27.5*2.25 A/V |
Derailleur Rear | Rear SHIMANO Shimano TX800 7-SPEED | WEIGHT | 22.1kg (incl. 2.5kg battery) |
Brakes | SHIMANO Hydraulic Disc Brake | Kickstand | Included (pay attention to the usage) |
Brake Type | Hydraulic Disc Brake | Bell | Yes |
Sensor | Torque sensor | headlights | No |

Size | M (17") | L (19") |
---|---|---|
Wheel Size | 27.5" (650b) | 27.5" (650b) |
(A) Seat Tube (mm) | 430 | 480 |
(B) Seat Tube (mm) | 580 | 617 |
(C) Chain Stay Length (mm) | 445 | 460 |
(D) Head Tube Angle (°) | 69 | 69 |
(E) Seat Tube Angle (°) | 73 | 73 |
(F) Head Tube (mm) | 180 | 180 |
(G) Reach (mm) | 435 | 405 |
(H) Stack (mm) | 596 | 693 |
(I) Wheel Base (mm) | 1120 | 1153.5 |
(J) Bottom Bracket Height | 282 | 282 |
Fork Travel | 100 | 100 |
Handlebar Width | 700 | 700 |
Stem Length | 80 | 80 |
Crank Length | 170 | 170 |
