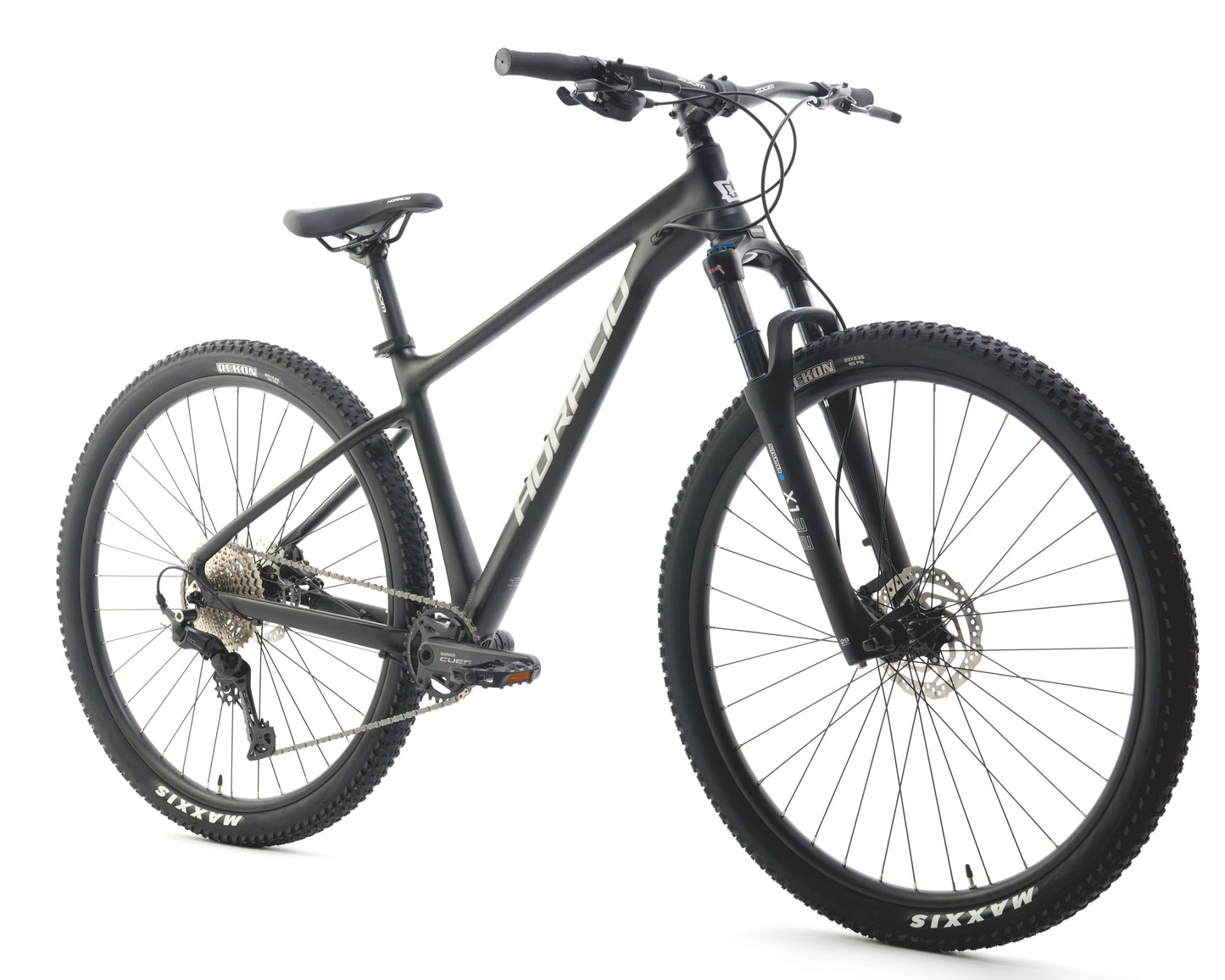

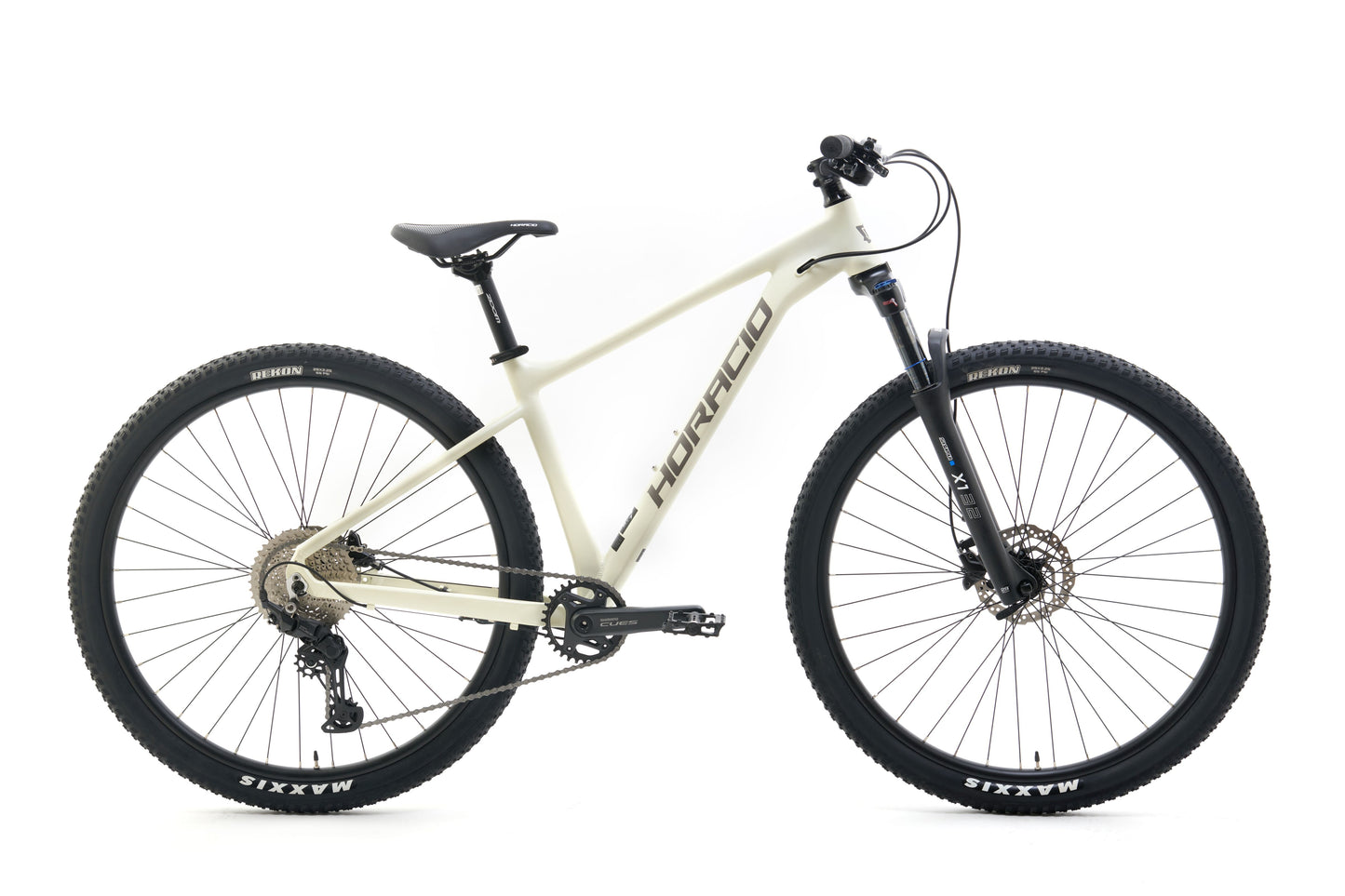

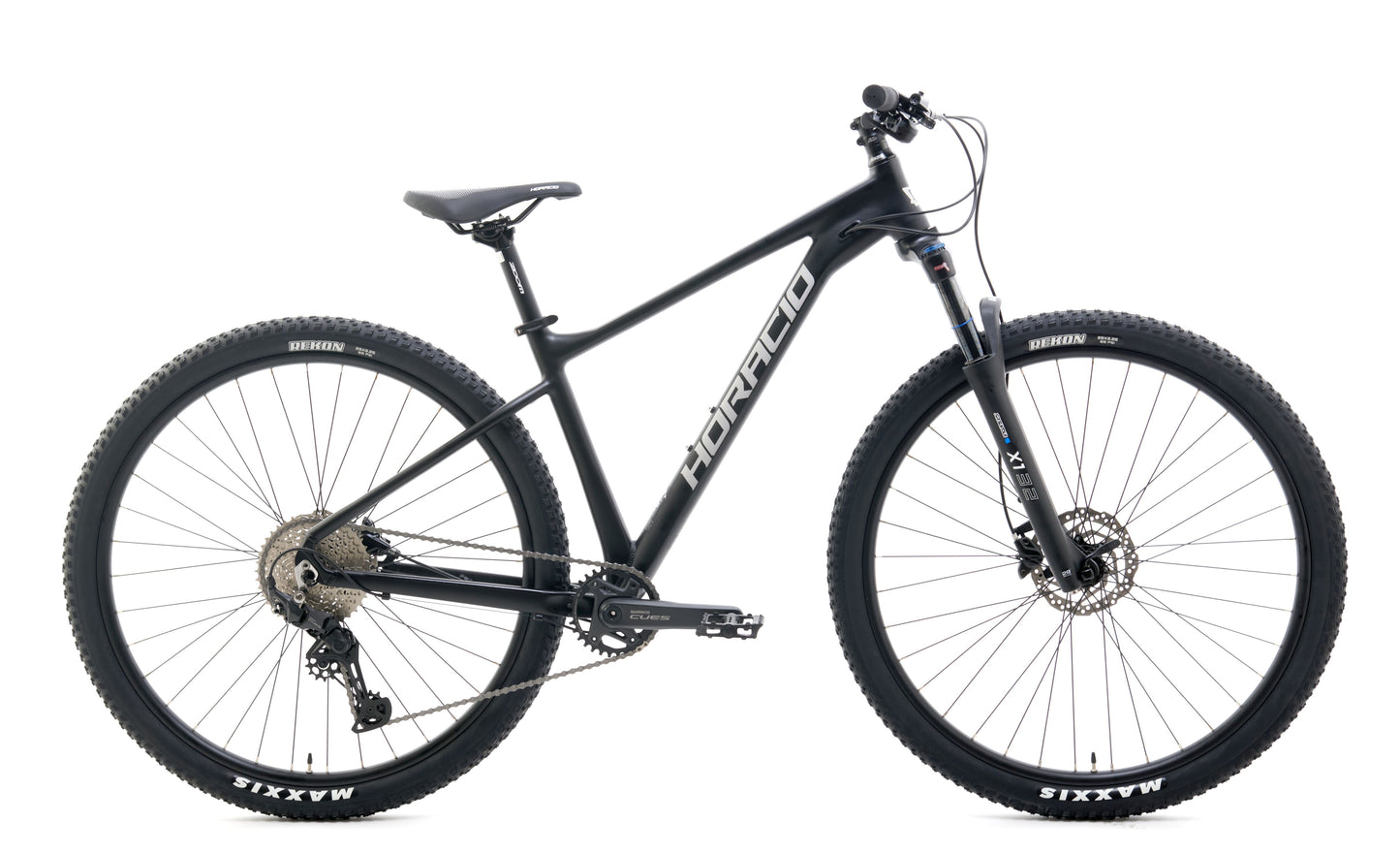

Diez D10 29" MTB |Shimano CUES 1x10, Air Fork, Hydraulic Disc

Diez D10 29" MTB |Shimano CUES 1x10, Air Fork, Hydraulic Disc

Regular price $699.00
Regular price $1,000.00 Sale price $699.00
ON SALE Out of Stock
Tax included.
Color
Size
Size GuideNot Sure? Contact Us

Pre-order Offer: Save $50

Place your pre-order now for DIEZ and get $50 OFF by entering the coupon code below during checkout.

Use this code at checkout when purchasing the DIEZ DSD10. Offer valid for pre-orders only. Limited time only.

View full details

Lightweight Diez D10 29" MTB with Shimano CUES 1x10 drivetrain, Suntour air fork, and hydraulic disc brakes. Built for trail, commute, and everyday adventure.

TRUSTPILOT HORACIOBIKES
Built for the Trail. Refined for the City
The all-new Horacio DIEZ combines modern mountain bike engineering with the versatility of an everyday urban ride. From forest trails to city streets, it delivers performance, comfort, and style — all in one lightweight 14.6kg package.
Shimano CUES 1x10, Air Fork, Hydraulic Disc Brakes — All You Need, Nothing You Don't.
Footer Image
响应式横幅

Why Diez D10?

Discover the key features that make the Diez D10 your perfect trail companion

Modern MTB Design

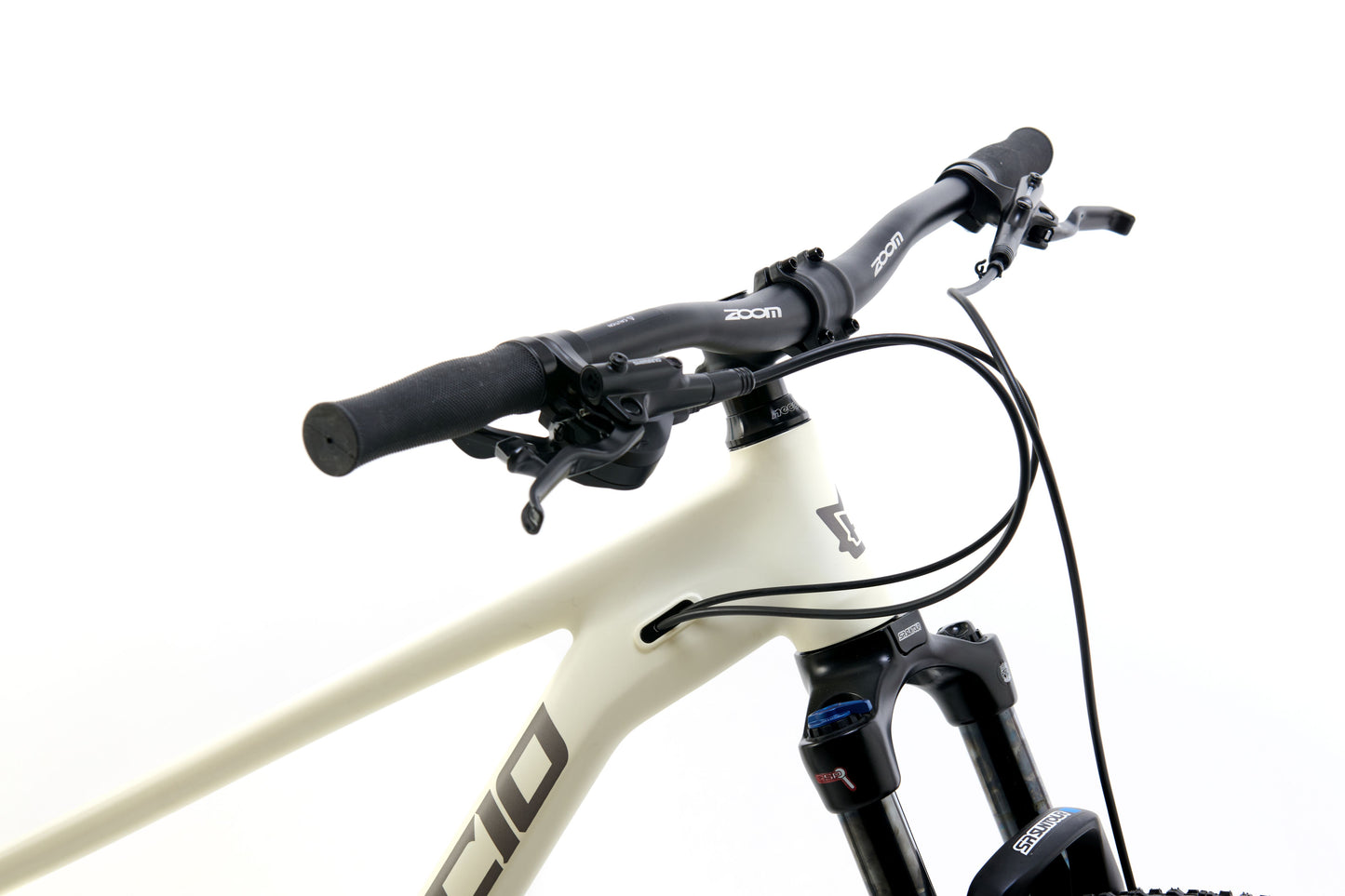

Equipped with a Suntour tapered steerer fork, high-quality components including a clutch-equipped 1x drivetrain, Shimano quick-release hubs, and clean internal cable routing — built to grow with every trail rider.

Confident Off-Road Control

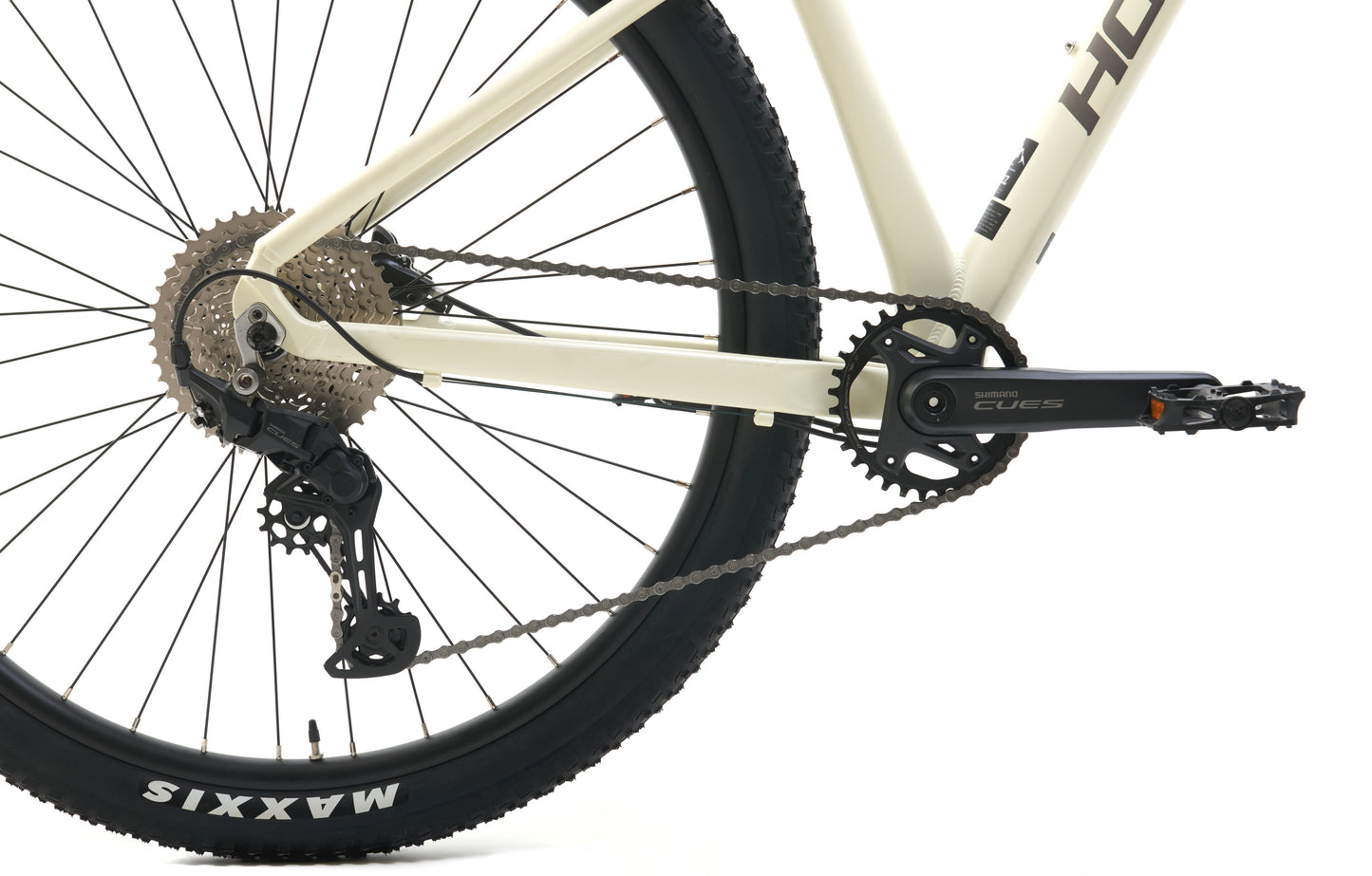

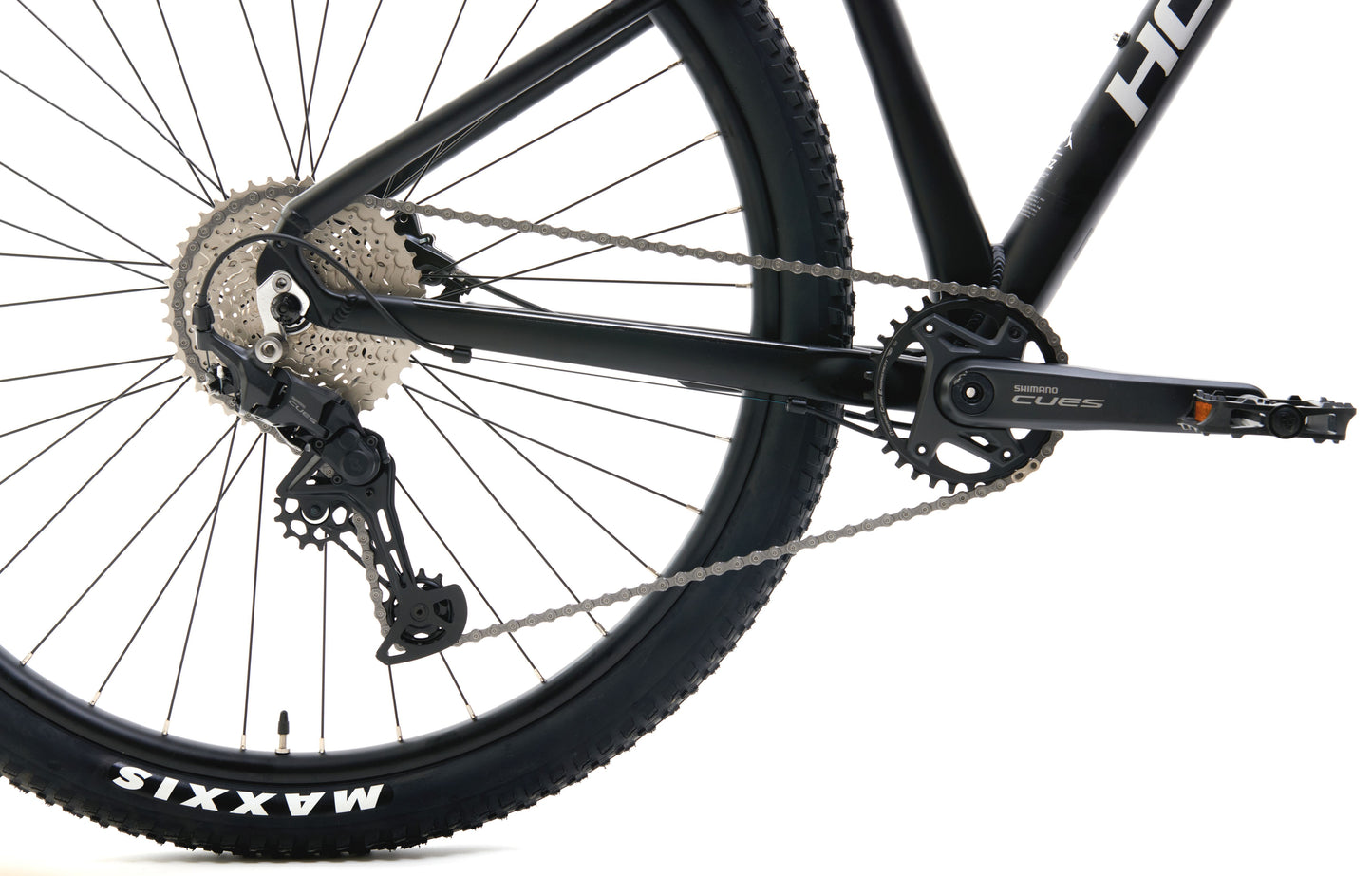

New geometry tuned for trail handling, paired with a Suntour X1 100mm air fork, MAXXIS 29"×2.25" tires, and a Shimano CUES 1×10 drivetrain — for confident rides across varied terrain.

Unmatched Durability

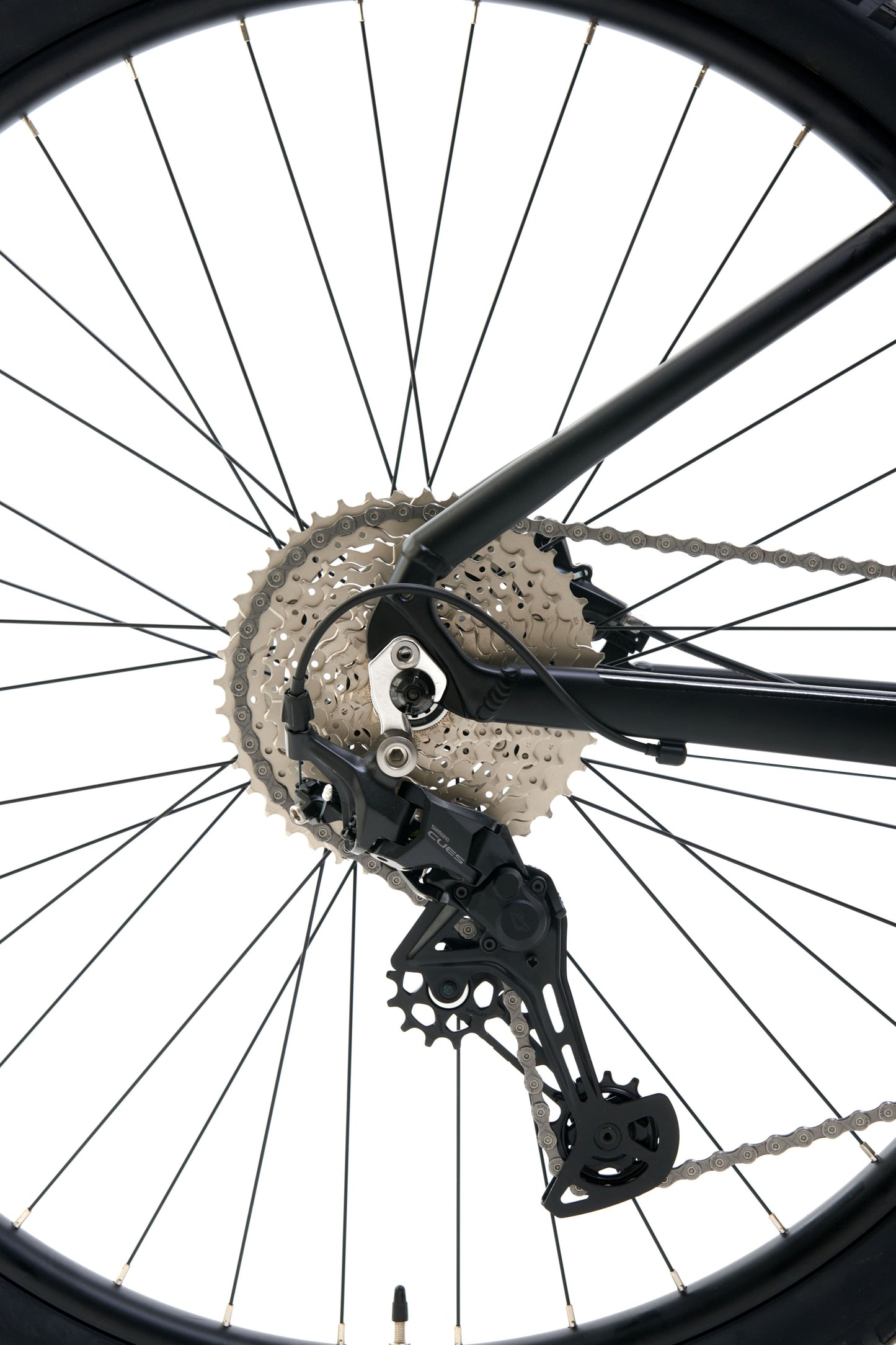

With Shimano CUES drivetrain offering 3× longer lifespan, plus Shimano hubs, crankset, cassette, sealed bottom bracket, and a sealed bearing headset — built to last and ride smoothly.

Stronger Yet Lighter

An optimized alloy frame and air fork keep the total weight around 14.5kg — striking the perfect balance between strength and agility for easier climbs and responsive handling.

Reliable Braking Power

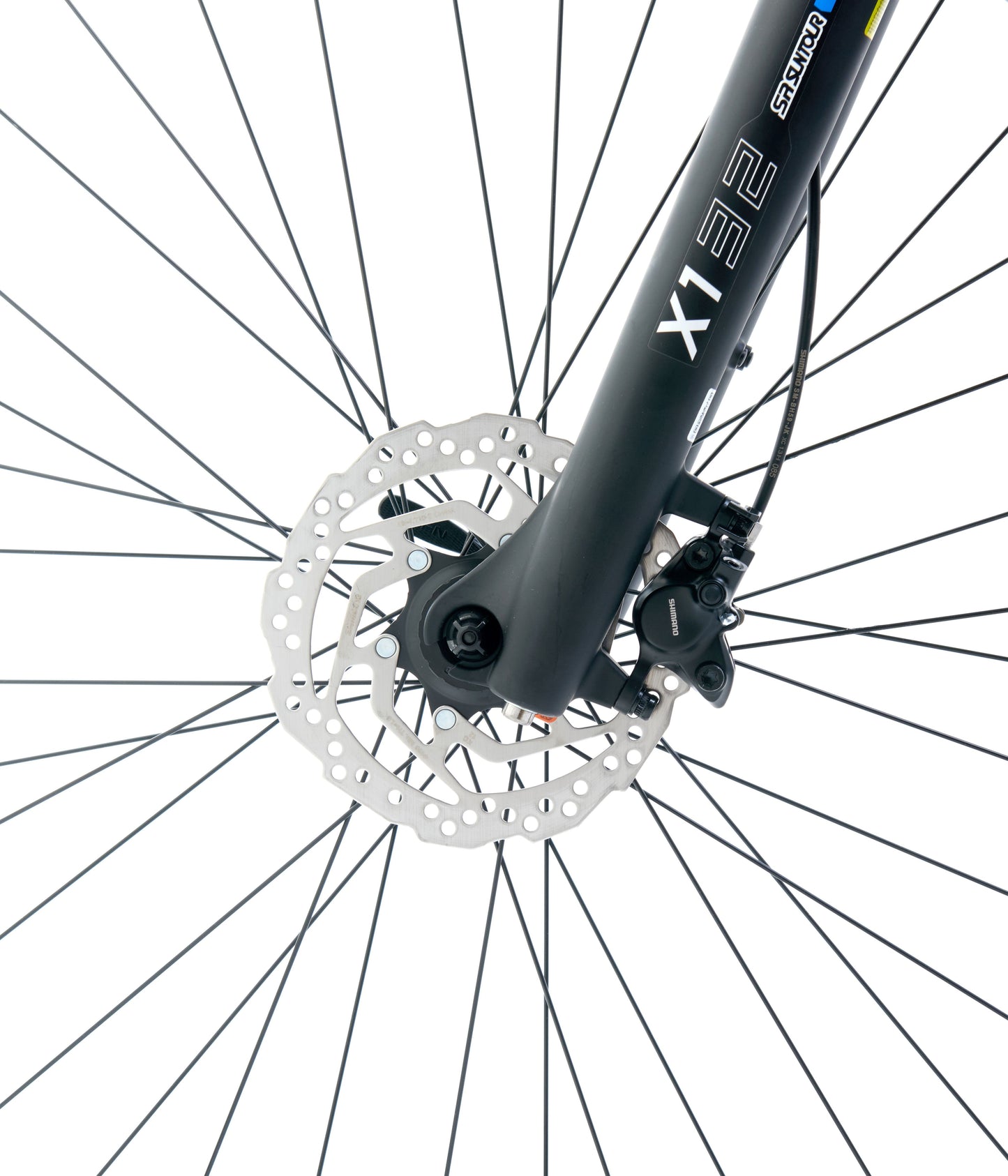

Equipped with Shimano MT200 hydraulic disc brakes and Center Lock rotors, paired with grippy MAXXIS tires — for confident stopping in all weather and terrain.

Trail-Ready Looks, Commute-Ready Style

Striking frame lines and premium paint finish make DIEZ stand out wherever you ride — equally at home on forest trails or your daily commute.

SPECIFICATION
Season2025GripsVelo Black TPR Grips,Aluminum Lock Ring VLG-1192-11D2 22.4 R/L=130MM
Wheel Size29"HandlebarZOOM Aluminum Alloy 710MM , MTB-AL-320BTFOV φ22.2*31.8*700MM*2.0T
ColourPearl White / Pure BlackHeadsetNECO Integrated Threadless Headset H373 Sealed Cartridge Bearings
Frame6061 aluminium alloyHubsFront: Shimano FRONT HUB,HB-QC300,CENTER LOCK DISC ,Quick Release Rear: Shimano FREEHUB,FH-QC300-HM,CENTER LOCK DISC,Quick Release
ForkSUNTOUR SF23-X1-32-ATB-Air, 100mm air-adjustable travelBottom BracketShimano BB-MT501 HOLLOWTECH II technology,High quality sealed bearings
Front Travel100mmStemZOOM TDS-D507A-8FOV, Aluminum, D28.6*H41*E50, Extension: 50mm, 1° Rise, Bar Bore: 31.8mm
Groupset BrandSHIMANO CUESPedalsWELLGO MTB Nylon Plastic Pedals LU-984DU
Rear Gears10 SpeedRimsDouble-Wall Alloy Rim 29" ,Disc Only, 25mm inner width, 14G x 36H, Height: 18mm
Front GearsSingleSaddleDDK 2727 Style: MTB
Brake TypeHydraulic Disc BrakeSeatpostZOOM Aluminum Alloy SP-C207 30.9*350mm
BrakesShimano MT200 Hydraulic Disc Brake Rotor: 160mmShiftersShimano SL-U6000-10R,CUES,RIGHT,10-SPEED
CassetteShimano CS-M4100-10,DEORE,10-SPEED,11-13-15-18-21-24-28-32-37-42TTyresMAXXIS M349P 29"*2.25
ChainKMC XGlide 1/2"*11/128"*112LTubesKENDA 29" x 2.25 Presta Valve, Black
CranksetShimano FC-U6000-1, 32T, 175mm, chain case not compatibleRepair Tool KitYES
Derailleur Front-WeightM: 14.6kg / L:14.6kg / XL: 14.6kg
Derailleur RearShimano CUES RD-U6000,CUES, 10-SPEEDKickstandNot included & Included separate parking rack
Season2025
Wheel Size29"
ColourPearl White / Pure Black
Frame6061 aluminium alloy
ForkSUNTOUR SF23-X1-32-ATB-Air, 100mm air-adjustable travel
Front Travel100mm
Groupset BrandSHIMANO CUES
Rear Gears10 Speed
Front GearsSingle
Brake TypeHydraulic Disc Brake

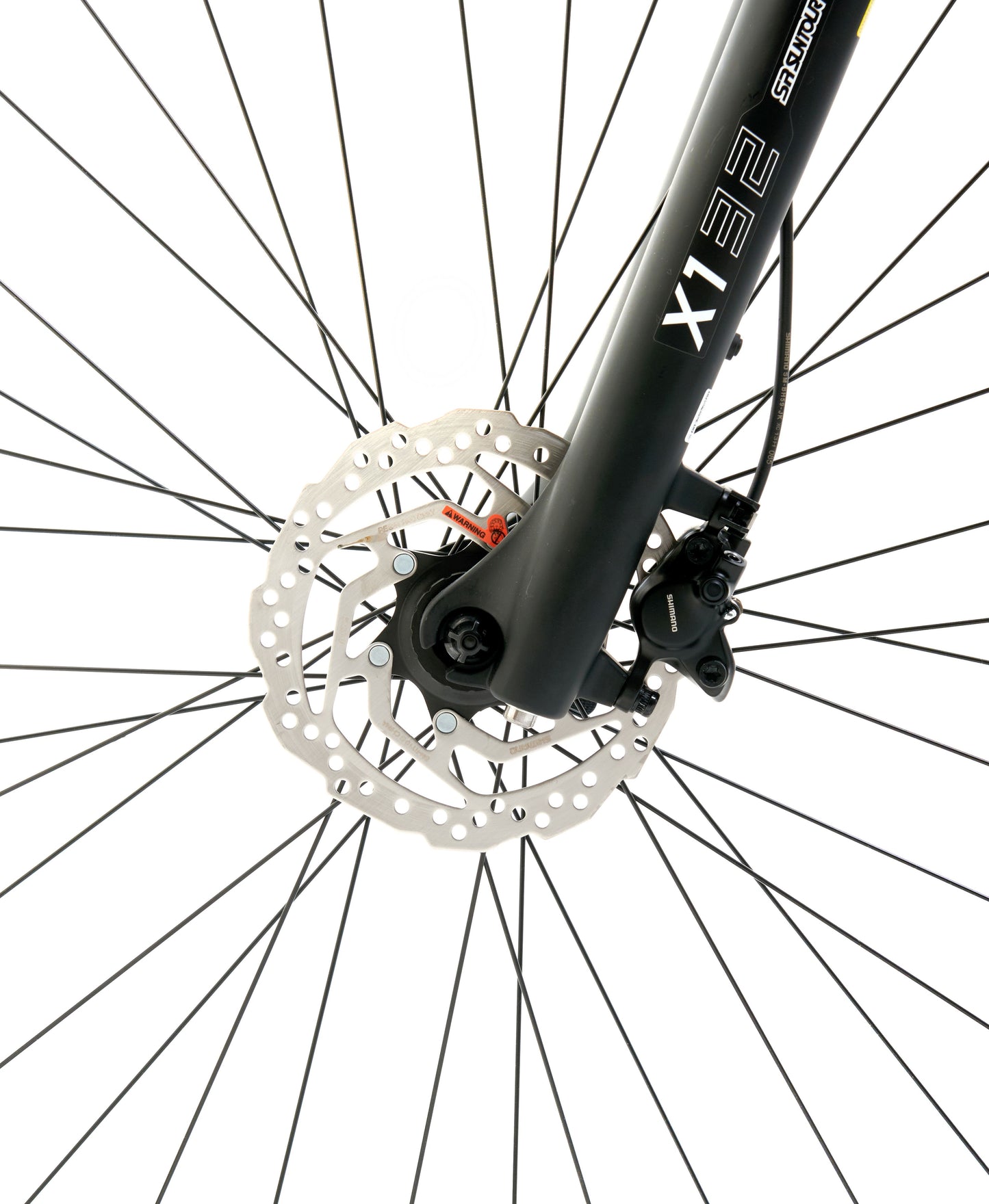

BrakesShimano MT200 Hydraulic Disc Brake Rotor: 160mm
CassetteShimano CS-M4100-10,DEORE,10-SPEED,11-13-15-18-21-24-28-32-37-42T
ChainKMC XGlide 1/2"*11/128"*112L
CranksetShimano FC-U6000-1, 32T, 175mm, chain case not compatible
Derailleur Front-

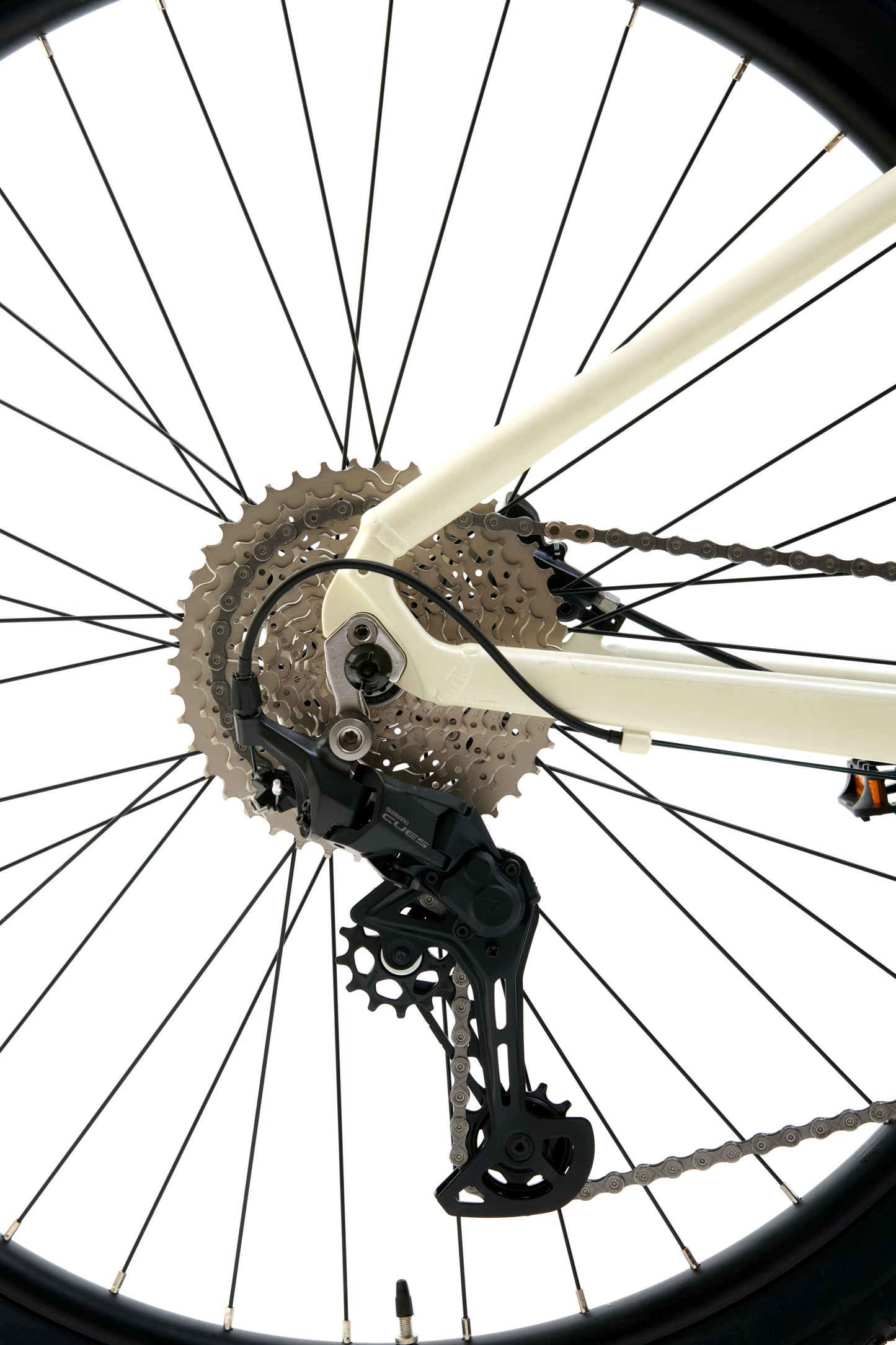

Derailleur RearShimano CUES RD-U6000,CUES, 10-SPEED
GripsVelo Black TPR Grips,Aluminum Lock Ring VLG-1192-11D2 22.4 R/L=130MM

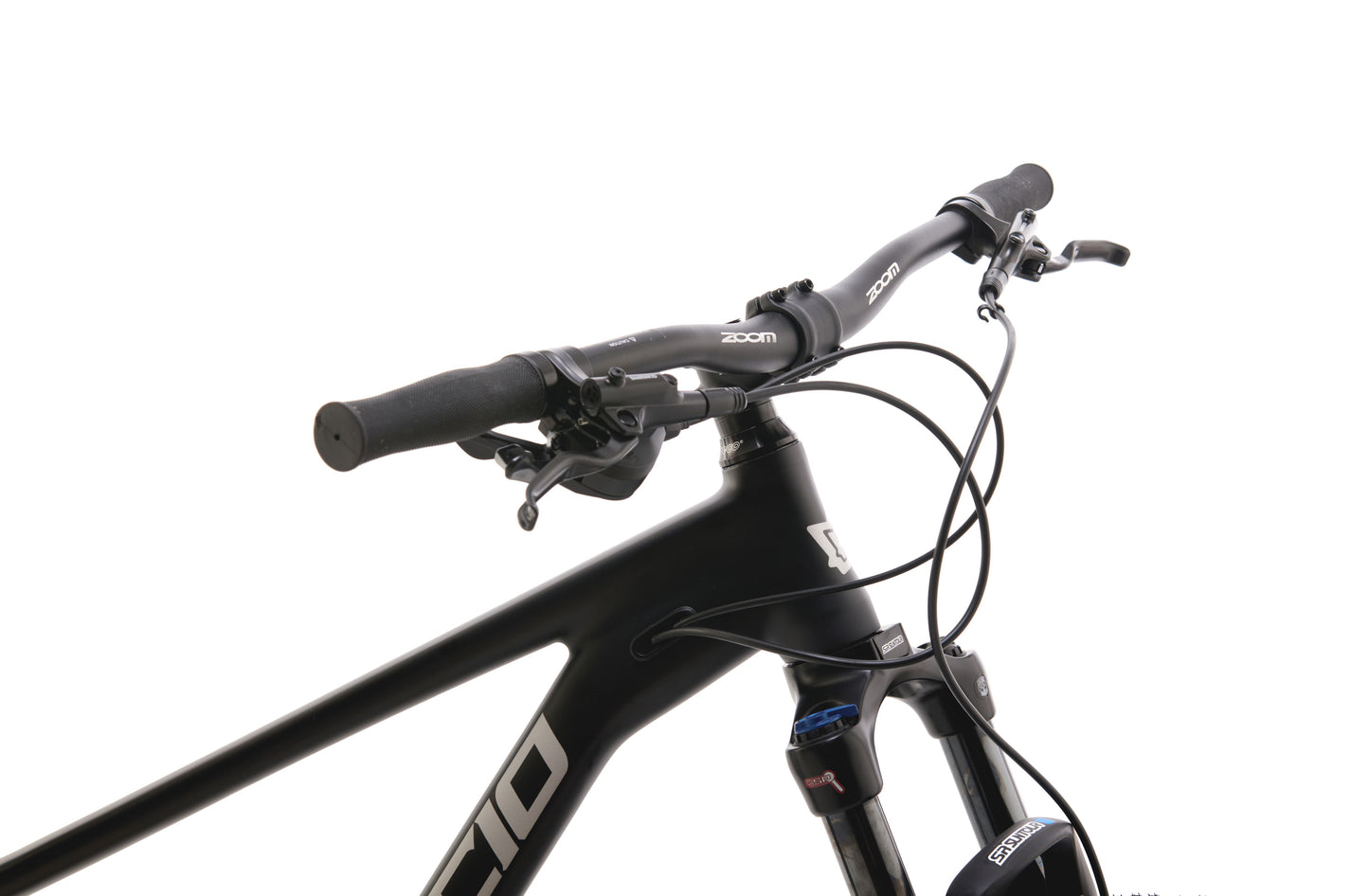

HandlebarZOOM Aluminum Alloy 710MM , MTB-AL-320BTFOV φ22.2*31.8*700MM*2.0T
HeadsetNECO Integrated Threadless Headset H373 Sealed Cartridge Bearings
HubsFront: Shimano FRONT HUB,HB-QC300,CENTER LOCK DISC ,Quick Release Rear: Shimano FREEHUB,FH-QC300-HM,CENTER LOCK DISC,Quick Release
Bottom BracketShimano BB-MT501 HOLLOWTECH II technology,High quality sealed bearings
StemZOOM TDS-D507A-8FOV, Aluminum, D28.6*H41*E50, Extension: 50mm, 1° Rise, Bar Bore: 31.8mm
PedalsWELLGO MTB Nylon Plastic Pedals LU-984DU
RimsDouble-Wall Alloy Rim 29" ,Disc Only, 25mm inner width, 14G x 36H, Height: 18mm

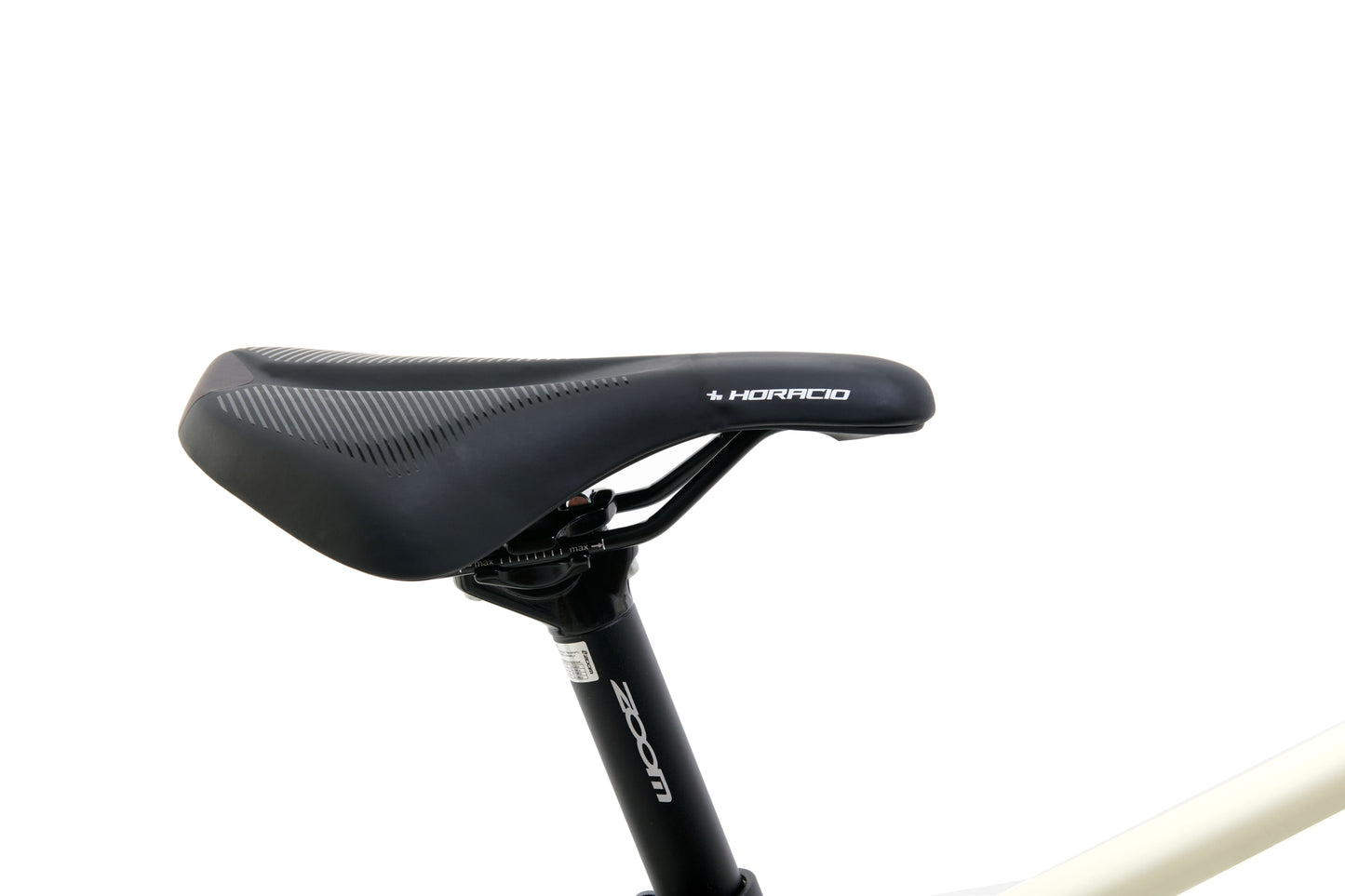

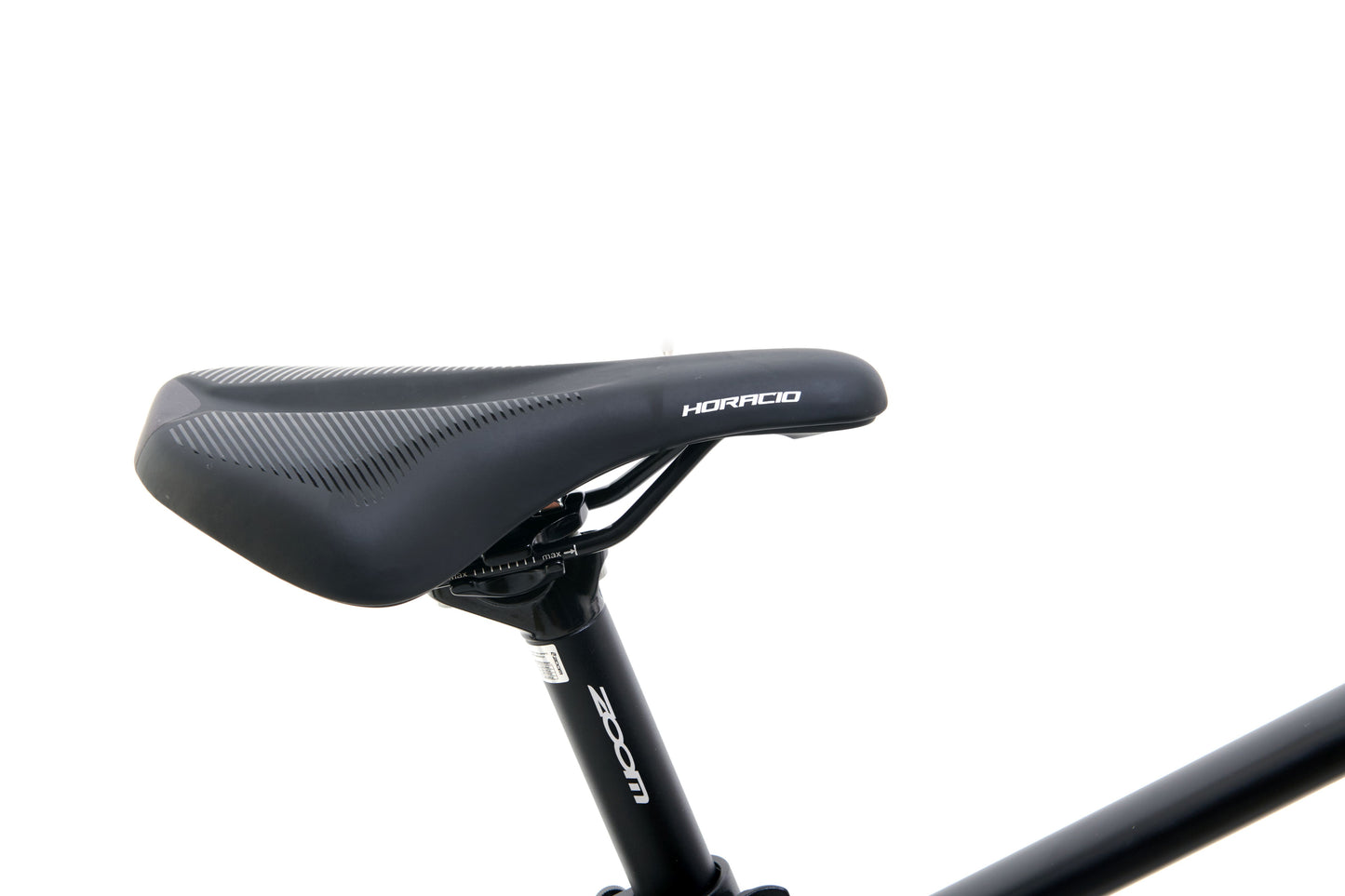

SaddleDDK 2727 Style: MTB
SeatpostZOOM Aluminum Alloy SP-C207 30.9*350mm
ShiftersShimano SL-U6000-10R,CUES,RIGHT,10-SPEED
TyresMAXXIS M349P 29"*2.25
TubesKENDA 29" x 2.25 Presta Valve, Black
Repair Tool KitYES
WeightM: 14.6kg / L:14.6kg / XL: 14.6kg
KickstandNot included & Included separate parking rack
